    H05G-K / H07G-K

    Application and Description

    These cables are recommended for the internal wiring of switchboards and distributor boards as well as in operating parts in or on lights. The higher temperature range allows for connections to heaters with an alternating nominal voltage of 1000V. or direct nominal voltage of 750V. These cables are all allowed for laying in tubes in and under plaster.

    Standard and Approval

    NF C 32-102-7

    CE Low Voltage Directive 73/23/EEC and 93/68/EEC

    ROHS compliant

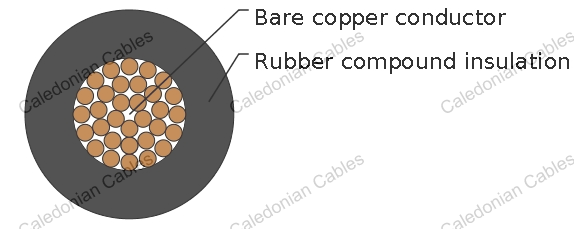

    Cable Construction

    Fine bare copper strands

    Strands to VDE-0295 Class-5, IEC 60228 Class-5

    Rubber compound type EI3 (EVA) to DIN VDE 0282 part 7 insulation

    Cores to VDE-0293 colors

    Technical Characteristics

    Working voltage : 300/500V (H05G-K) , 450/750V (H07G-K)

    Test voltage : 2000V (H05G-K) , 2500V (H07G-K)

    Flexing bending radius : 7 x Ø

    Static bending radius : 7 x Ø

    Flexing temperature : -25º C to +110º C

    Static temperature : -40º C to +110º C

    Short circuit Temperature : +160º C

    Flame retardant : NF C 32-070

    Insulation resistance : 10 MΩ x km

    Cable Parameter

    AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
    # × mm² mm mm kg/km kg/km
    H05G-K
    20(16/32) 1 x 0.5 0.6 2.3 4.8 13
    18(24/32) 1 x 0.75 0.6 2.6 7.2 16
    17(32/32) 1 x 1 0.6 2.8 9.6 22
    H07G-K
    16(30/30) 1 x 1.5 0.8 3.4 14.4 24
    14(50/30) 1 x 2.5 0.9 4.1 24 42
    12(56/28) 1 x 4 1.0 5.1 38 61
    10(84/28) 1 x 6 1.0 5.5 58 78
    8(80/26) 1 x 10 1.2 6.8 96 130
    6(128/26) 1 x 16 1.2 8.4 154 212
    4(200/26) 1 x 25 1.4 9.9 240 323
    2(280/26) 1 x 35 1.4 11.4 336 422
    1(400/26) 1 x 50 1.6 13.2 480 527
    2/0(356/24) 1 x 70 1.6 15.4 672 726
    3/0(485/24) 1 x 95 1.8 17.2 912 937
    4/0(614/24) 1 x 120 1.8 19.7 1152 1192
