These halogen-free, flame retardant cables are designed for frequency converter controlled AC drives, suitable for ?xed installation and occasional free ?exing indoors in dry, damp and wet conditions, as well as outdoors for low mechanical stress.

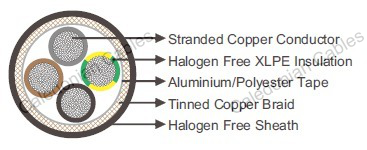

| Conductor | Stranded bare copper, class 5 according to DIN VDE 0295/IEC 60228. |
| Protective Conductor | Stranded bare copper, class 5 according to DIN VDE 0295/IEC 60228. For cross sections > 16mm2 the protective conductor is divided into 3 cores. |
| Insulation | Halogen free special XLPE according to IEC 60502-4. |
| Screen | ?Al coated tape + tinned copper wires braid. |
| Sheath | Halogen free compound HM4. Halogen free PUR can be offered upon request. |
| Rated Voltage Uo/U (Um) | 600/1000V |
| Operating Temperatures | -5℃~+90℃ |
| Minimum Bending Radius | flexing: 20×OD; fixed: 10×OD |
| Flame Retardant | IEC 60332-3 |
| Halogen Free | IEC 60754 |
| Gases Corrosively | IEC 60754 |
| Ozone Resistant | Yes |
| UV Resistant | Yes |
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
| NO. OF CORES×MM2 | MM | KG/KM |
| 4×1.5 | 11.0 | 230 |
| 4×2.5 | 12.5 | 300 |
| 4×4 | 15.5 | 390 |
| 4×6 | 17.5 | 420 |
| 4×10 | 19.5 | 780 |
| 3×16+3×2.5 | 22.5 | 820 |
| 3×25+3×4 | 26.0 | 1150 |
| 3×35+3×6 | 29.5 | 1550 |
| 3×50+3×10 | 35.0 | 2400 |
| 3×70+3×10 | 38.5 | 3100 |
| 3×95+3×16 | 44.0 | 4200 |
| 3×120+3×16 | 48.0 | 4630 |
| 3×150+3×25 | 53.0 | 5880 |
| 3×185+3×35 | 58.0 | 7200 |
| 3×240+3×50 | 66.0 | 9600 |
| 3×300+3×50 | 73.0 | 11530 |
