These cables with oil-resistant FRNC sheath and increased temperature resistance are designed for extreme industrial applications in the wind turbine area and similar sectors.

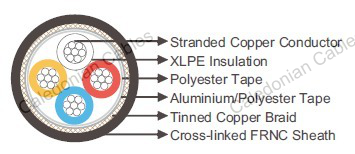

| Conductor | Tinned copper AWG 22/7 (Section 0.34 mm2). |
| Insulation | XLPE. |
| Cable Element | Star quad. |
| Screen 1 | Polyester tape over stranded bundle. |
| Screen 2 | Aluminium/Polyester tape. |
| Overall Screen | Tinned copper braid. |
| Sheath | Cross-linked FRNC. |
| Operating Temperatures | -40℃~+105℃ |
| Minimum Bending Radius | 46mm |
| Impedance @1~100MHz | 100Ohm +/-15% |
| Maximum Conductor Resistance @20°C | 60Ohm/km |
| Nominal Mutual Capacitance | 57nF/km |
| Minimum Insulation Resistance | 0.5GOhm×km |
| Attenuation @10MHz | 6.3dB/100m |
| Attenuation @16MHz | 8dB/100m |
| Attenuation @62.5MHz | 16.5dB/100m |
| Attenuation @100MHz | 21.3dB/100m |
| Next @10MHz | 70dB |
| Next @16MHz | 65dB |
| Next @62.5MHz | 55dB |
| Next @100MHz | 50dB |
| ACR @10MHz | 63.7dB |
| ACR @16MHz | 57dB |
| ACR @62.5MHz | 38.5dB |
| ACR @100MHz | 28.7dB |
| Flame Retardant | IEC 60332-1 |
| Halogen Free | IEC 60754 |
| Oil Resistant | Yes |
| UV Resistant | Yes |
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
| NO. OF CORES×MM2 | MM | KG/KM |
| 2×2×0.34 | 6.5 | 64 |
