PROFInet AWG 22/1

These cables are designed especially for extreme industrial applications, suitable for Ethernet applications.

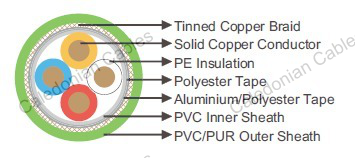

Conductor	Bare copper 1×22AWG.
Insulation	PE.
Cable Element	Star quad.
Screen 1	Polyester tape over stranded bundle.
Screen 2	Aluminium/Polyester tape.
Overall Screen	Tinned copper braid.
Inner Sheath	PVC.
Sheath	PVC/PUR.

Operating Temperatures	-40℃~+70℃
Minimum Bending Radius	100mm
Impedance @1~100MHz	100Ohm +/-15%
Maximum Conductor Resistance @20°C	62Ohm/km
Nominal Mutual Capacitance	50nF/km
Minimum Insulation Resistance	0.5GOhm×km
Attenuation @10MHz	5.2dB/100m
Attenuation @16MHz	6.9dB/100m
Attenuation @62.5MHz	15dB/100m
Attenuation @100MHz	19.5dB/100m
Next @10MHz	70dB
Next @16MHz	65dB
Next @62.5MHz	55dB
Next @100MHz	50dB
ACR @10MHz	64.8dB
ACR @16MHz	58.1dB
ACR @62.5MHz	40dB
ACR @100MHz	30.5dB
Flame Retardant	IEC 60332-1
Silicone Free	Yes
UV Resistant	Yes
