    LiYCY Twisted Pair Data Cable

    Application

    These screened cables are designed for special purpose of data transmission in wind turbines, suitable for in dry, moist and wet rooms.

    Standards

    • DIN VDE 0812, 0814

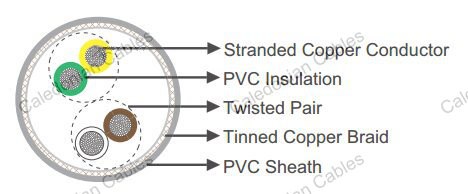

    Construction

    Conductor Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228.
    Insulation PVC Type YI2.
    Cable Element Twisted pairs.
    Screen Tinned copper wire braid.
    Sheath PVC Type YM2.

    Technical Data

    Rated Voltage Uo/U (Um) 350V
    Operating Temperatures flexing: -5℃~+80℃; fixed: -30℃~+80℃
    Minimum Bending Radius flexing: 10×OD; fixed: 5×OD
    Flame Retardant VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1
    Oil Resistant Yes
    Silicone Free Yes

    Dimensions and Weight

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM2 MM KG/KM
    1×2×0.14 3.5 34
    2×2×0.14 5.6 40
    3×2×0.14 5.6 49
    4×2×0.14 6.0 55
    5×2×0.14 6.7 66
    6×2×0.14 7.2 86
    7×2×0.14 7.2 91
    8×2×0.14 8.4 97
    10×2×0.14 9.1 109
    12×2×0.14 9.2 141
    14×2×0.14 9.9 148
    15×2×0.14 10.4 152
    16×2×0.14 10.4 155
    18×2×0.14 11.0 171
    20×2×0.14 11.5 183
    22×2×0.14 12.3 205
    24×2×0.14 12.3 228
    25×2×0.14 12.5 239
    26×2×0.14 12.5 245
    27×2×0.14 12.5 251
    28×2×0.14 13.7 258
    30×2×0.14 13.7 270
    32×2×0.14 14.2 284
    34×2×0.14 14.7 300
    36×2×0.14 14.9 316
    38×2×0.14 15.6 350
    40×2×0.14 16.1 370
    44×2×0.14 16.8 390
    46×2×0.14 17.0 430
    50×2×0.14 17.7 440
    52×2×0.14 17.7 460
    55×2×0.14 18.2 480
    1×2×0.25 4.1 45
    2×2×0.25 6.3 53
    3×2×0.25 6.6 65
    4×2×0.25 7.0 80
    5×2×0.25 7.8 98
    6×2×0.25 8.6 114
    7×2×0.25 8.6 121
    8×2×0.25 9.8 129
    10×2×0.25 11.0 157
    12×2×0.25 11.2 189
    14×2×0.25 12.2 213
    15×2×0.25 12.8 225
    16×2×0.25 12.8 237
    18×2×0.25 13.5 248
    20×2×0.25 14.1 275
    22×2×0.25 14.9 303
    24×2×0.25 15.3 330
    25×2×0.25 15.5 343
    26×2×0.25 15.5 345
    27×2×0.25 15.5 350
    28×2×0.25 17.0 360
    30×2×0.25 17.0 375
    32×2×0.25 17.6 400
    34×2×0.25 18.2 410
    36×2×0.25 18.2 420
    38×2×0.25 19.0 450
    40×2×0.25 19.7 485
    44×2×0.25 20.5 500
    46×2×0.25 20.7 540
    50×2×0.25 21.5 550
    52×2×0.25 21.5 580
    55×2×0.25 22.1 630
    1×2×0.34 5.4 58
    2×2×0.34 7.0 65
    3×2×0.34 7.3 78
    4×2×0.34 8.1 90
    5×2×0.34 8.8 110
    6×2×0.34 9.8 130
    7×2×0.34 9.8 145
    8×2×0.34 11.2 150
    9×2×0.34 12.6 170
    10×2×0.34 12.6 190
    12×2×0.34 12.8 220
    14×2×0.34 13.3 245
    16×2×0.34 14.3 250
    18×2×0.34 15.2 275
    21×2×0.34 15.9 300
    25×2×0.34 17.5 400
    27×2×0.34 17.5 410
    30×2×0.34 19.1 440
    34×2×0.34 20.8 510
    37×2×0.34 21.5 550
    40×2×0.34 22.4 590
    44×2×0.34 23.6 600
    50×2×0.34 24.8 650
    52×2×0.34 24.8 680
    56×2×0.34 25.4 750
    61×2×0.34 26.2 840
    1×2×0.5 4.9 60
    2×2×0.5 7.8 89
    3×2×0.5 8.2 104
    4×2×0.5 9.1 126
    5×2×0.5 9.9 148
    6×2×0.5 10.7 171
    8×2×0.5 12.8 290
    10×2×0.5 14.0 320
    12×2×0.5 14.3 361
    16×2×0.5 16.1 421
    20×2×0.5 17.2 580
    25×2×0.5 17.9 740
    1×2×0.75 5.2 71
    2×2×0.75 8.4 105
    3×2×0.75 8.9 128
    4×2×0.75 9.8 156
    5×2×0.75 10.8 189
    6×2×0.75 12.1 216
    8×2×0.75 13.4 309
    10×2×0.75 15.5 355
    12×2×0.75 15.8 405
    16×2×0.75 18.0 565
    20×2×0.75 19.2 700
    25×2×0.75 21.8 950
    1×2×1 5.3 75
    2×2×1 8.9 116
    3×2×1 9.4 140
    4×2×1 10.4 191
    1×2×1.5 5.8 84
    2×2×1.5 10.2 122
    3×2×1.5 10.8 194
    4×2×1.5 12.0 240
