These screened data cables are suitable for use as flexible connector cables in the fields of electronics, control and command technology as well as for measuring, signal and impulse transfer.

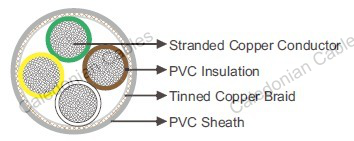

| Conductor | Stranded tinned copper, according to ASTM-B. |
| Insulation | PVC class 43. |
| Drain Wire | Tinned copper conductor. |
| Screen | Tinned copper wire braid. |
| Sheath | PVC class 43. |
| Rated Voltage Uo/U (Um) | 300V |
| Operating Temperatures | flexing: -10℃~+80℃; fixed: -20℃~+80℃ |
| Minimum Bending Radius | flexing: 15×OD; fixed: 6×OD |
| Flame Retardant | UL VW-1/CSA FT-1 |
| Oil Resistant | Yes |
| Silicone Free | Yes |
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
| NO. OF CORES×MM2 | MM | KG/KM |
| 26AWG | ||
| 2×0.14 | 4.1 | 20 |
| 3×0.14 | 4.3 | 25 |
| 4×0.14 | 4.5 | 28 |
| 6×0.14 | 5.1 | 30 |
| 10×0.14 | 6.1 | 50 |
| 12×0.14 | 6.3 | 53 |
| 16×0.14 | 6.8 | 60 |
| 18×0.14 | 7.0 | 70 |
| 24×0.14 | 8.1 | 100 |
| 27×0.14 | 8.3 | 105 |
| 30×0.14 | 8.6 | 110 |
| 24AWG | ||
| 2×0.23 | 4.3 | 20 |
| 3×0.23 | 4.5 | 25 |
| 4×0.23 | 4.8 | 30 |
| 6×0.23 | 5.4 | 40 |
| 10×0.23 | 6.5 | 60 |
| 12×0.23 | 6.7 | 70 |
| 16×0.23 | 7.4 | 90 |
| 18×0.23 | 7.7 | 123 |
| 24×0.23 | 8.8 | 131 |
| 27×0.23 | 9.0 | 160 |
| 30×0.23 | 9.3 | 170 |
| 22AWG | ||
| 2×0.34 | 4.7 | 40 |
| 3×0.34 | 4.9 | 50 |
| 4×0.34 | 5.5 | 60 |
| 6×0.34 | 6.0 | 80 |
| 10×0.34 | 7.4 | 130 |
| 12×0.34 | 7.6 | 140 |
| 16×0.34 | 8.3 | 160 |
| 18×0.34 | 8.7 | 170 |
| 24×0.34 | 10.0 | 220 |
| 27×0.34 | 10.2 | 250 |
| 30×0.34 | 10.5 | 280 |
| 20AWG | ||
| 2×0.56 | 5.1 | 50 |
| 3×0.56 | 5.3 | 55 |
| 4×0.56 | 5.6 | 61 |
| 6×0.56 | 6.5 | 90 |
| 10×0.56 | 8.2 | 133 |
| 12×0.56 | 8.4 | 151 |
| 16×0.56 | 9.3 | 190 |
| 18×0.56 | 9.7 | 216 |
| 24×0.56 | 11.3 | 339 |
| 27×0.56 | 11.5 | 374 |
| 30×0.56 | 12.3 | 397 |
| 18AWG | ||
| 2×0.82 | 6.5 | 60 |
| 3×0.82 | 6.8 | 75 |
| 4×0.82 | 7.4 | 90 |
| 6×0.82 | 8.8 | 125 |
| 10×0.82 | 10.9 | 180 |
| 12×0.82 | 11.2 | 220 |
| 16×0.82 | 12.9 | 290 |
| 18×0.82 | 13.5 | 300 |
| 24×0.82 | 15.6 | 450 |
| 27×0.82 | 15.9 | 470 |
| 30×0.82 | 16.6 | 490 |
| 16AWG | ||
| 2×1.3 | 7.0 | 90 |
| 3×1.3 | 7.4 | 160 |
| 4×1.3 | 8.1 | 200 |
| 6×1.3 | 9.5 | 290 |
| 10×1.3 | 12.4 | 450 |
| 12×1.3 | 12.8 | 600 |
| 16×1.3 | 14.0 | 650 |
| 18×1.3 | 14.8 | 680 |
| 24×1.3 | 17.2 | 900 |
| 27×1.3 | 18.0 | 990 |
| 30×1.3 | 18.7 | 1050 |
