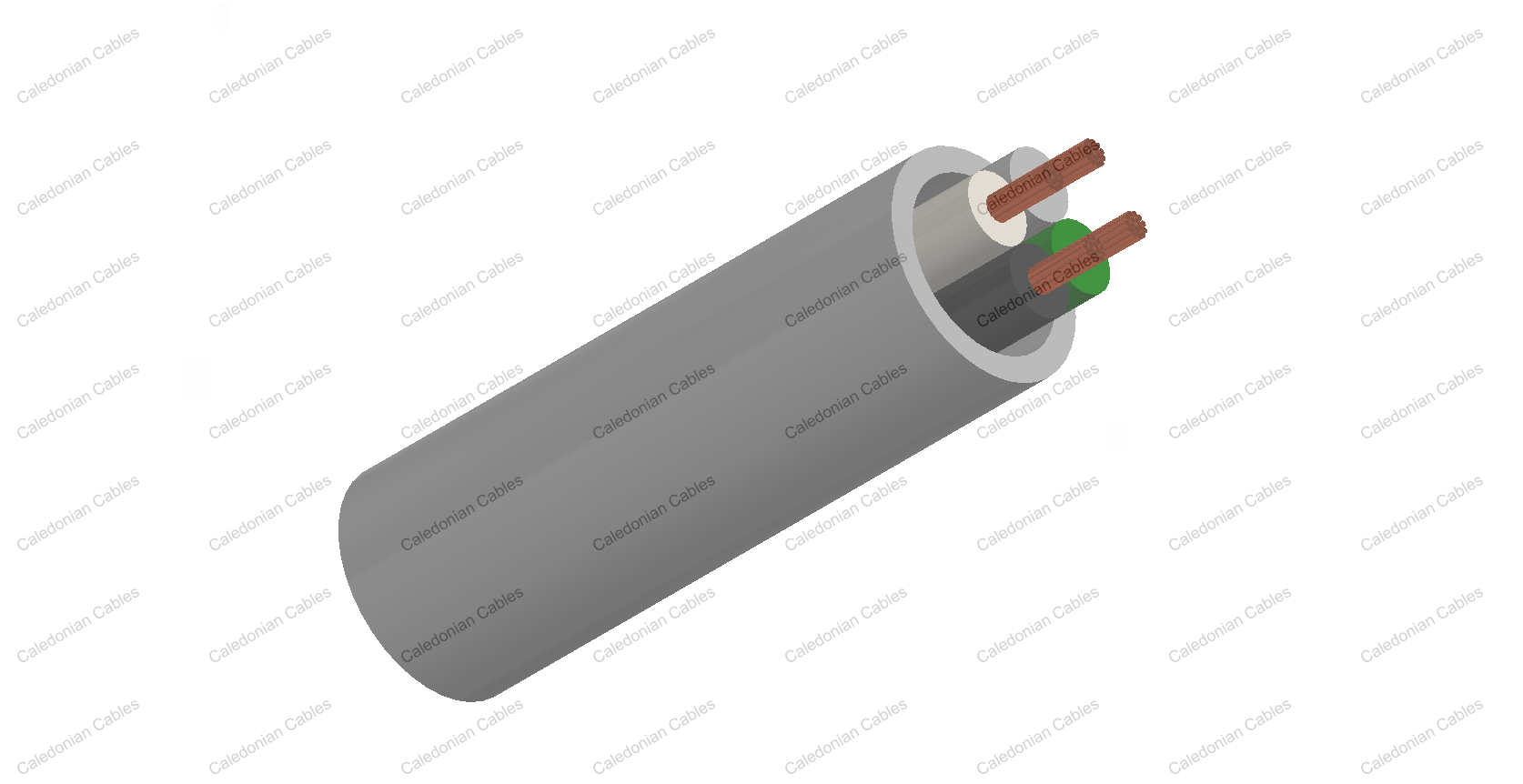

These halogen-free cables are designed for special purpose of data transmission in wind turbines, suitable for indoor and outdoor installation.

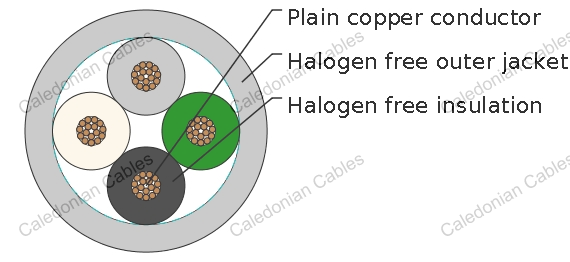

| Conductor | Stranded bare copper. |
| Insulation | Halogen free compound. |
| Sheath | Halogen free compound. |
| Rated Voltage Uo/U (Um) | 250V |
| Operating Temperatures | flexing: -5℃~+70℃; fixed: -40℃~+70℃ |
| Minimum Bending Radius | flexing: 10×OD; fixed: 7.5×OD |
| Flame Retardant | DIN VDE 0482 part 265-2-1/EN 50265-2-1/IEC 60332-3 |
| Gases Corrosively | VDE 0482 part 267/DIN EN 50267-2-2/IEC 60754 |
| Halogen Free | VDE 0482 part 267/DIN EN 50267-2-1/IEC 60754 |
| Oil Resistant | Yes |
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
| NO. OF CORES×MM2 | MM | KG/KM |
| 2×0.14 | 3.4 | 12 |
| 3×0.14 | 3.6 | 15 |
| 4×0.14 | 3.8 | 17 |
| 5×0.14 | 4.1 | 22 |
| 6×0.14 | 4.4 | 25 |
| 7×0.14 | 4.4 | 26 |
| 8×0.14 | 5.1 | 29 |
| 10×0.14 | 5.4 | 35 |
| 12×0.14 | 5.8 | 43 |
| 20×0.14 | 7.2 | 71 |
| 25×0.14 | 8.0 | 91 |
| 2×0.25 | 4.0 | 22 |
| 3×0.25 | 4.2 | 25 |
| 4×0.25 | 4.5 | 28 |
| 5×0.25 | 4.9 | 34 |
| 6×0.25 | 5.3 | 39 |
| 7×0.25 | 5.3 | 42 |
| 8×0.25 | 6.4 | 50 |
| 10×0.25 | 7.0 | 60 |
| 12×0.25 | 7.2 | 67 |
| 16×0.25 | 7.9 | 85 |
| 2×0.34 | 4.4 | 28 |
| 3×0.34 | 4.6 | 30 |
| 4×0.34 | 5.0 | 40 |
| 5×0.34 | 5.7 | 44 |
| 7×0.34 | 6.1 | 60 |
| 10×0.34 | 7.8 | 80 |
| 12×0.34 | 8.0 | 97 |
| 3×2×0.34 | 7.4 | 49 |
| 4×2×0.34 | 8.1 | 60 |
| 2×0.5 | 4.9 | 31 |
| 3×0.5 | 5.2 | 37 |
| 4×0.5 | 5.8 | 45 |
| 5×0.5 | 6.3 | 58 |
| 7×0.5 | 7.0 | 72 |
| 12×0.5 | 9.1 | 117 |
| 21×0.5 | 11.5 | 176 |
| 2×0.75 | 5.3 | 41 |
| 4×0.75 | 6.3 | 60 |
| 5×0.75 | 7.1 | 70 |
| 7×0.75 | 7.7 | 85 |
| 12×0.75 | 10.4 | 165 |
| 3×1 | 6.1 | 57 |
| 4×1 | 6.6 | 67 |
| 3×1.5 | 7.4 | 72 |
| 4×1.5 | 8.0 | 87 |
| 5G1.5 | 8.4 | 118 |
| 7G1.5 | 9.1 | 150 |
| 5G2.5 | 10.5 | 198 |
