These screened flexible cables are designed for special purpose of data transmission in wind turbines, suitable for indoor and outdoor installation.

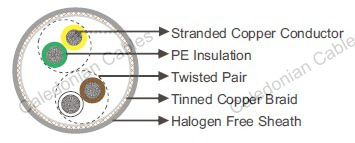

| Conductor | Stranded bare copper. |
| Insulation | PE compound type 2YJ1. |
| Cable Element | Twisted pairs. |
| Screen | Tinned copper wire braid. |
| Sheath | Halogen free compound type HM2. |
| Rated Voltage Uo/U (Um) | 350V (≤0.14 mm2); 500V (>0.14 mm2) |
| Operating Temperatures | flexing: -5℃~+70℃; fixed: -40℃~+70℃ |
| Minimum Bending Radius | flexing: 10×OD; fixed: 7.5×OD |
| Flame Retardant | DIN VDE 0482 part 265-2-1/EN 50265-2-1/IEC 60332-1 |
| Halogen Free | VDE 0482 part 267/DIN EN 50267-2-1/IEC 60754 |
| Gases Corrosively | VDE 0482 part 267/DIN EN 50267-2-2/IEC 60754 |
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
| NO. OF CORES×MM2 | MM | KG/KM |
| 2×2×0.14 | 5.2 | 37 |
| 3×2×0.14 | 6.2 | 47 |
| 4×2×0.14 | 6.4 | 66 |
| 5×2×0.14 | 7.2 | 76 |
| 6×2×0.14 | 8.2 | 87 |
| 7×2×0.14 | 8.7 | 94 |
| 10×2×0.14 | 9.9 | 119 |
| 12×2×0.14 | 10.0 | 135 |
| 15×2×0.14 | 11.3 | 157 |
| 18×2×0.14 | 12.5 | 190 |
| 2×2×0.25 | 6.1 | 44 |
| 3×2×0.25 | 7.0 | 66 |
| 4×2×0.25 | 7.5 | 81 |
| 5×2×0.25 | 8.2 | 98 |
| 6×2×0.25 | 9.3 | 116 |
| 7×2×0.25 | 9.4 | 120 |
| 10×2×0.25 | 10.6 | 153 |
| 12×2×0.25 | 11.4 | 175 |
| 15×2×0.25 | 12.9 | 213 |
| 18×2×0.25 | 13.7 | 248 |
| 2×2×0.34 | 7.3 | 68 |
| 3×2×0.34 | 8.6 | 92 |
| 4×2×0.34 | 9.6 | 110 |
| 5×2×0.34 | 10.1 | 128 |
| 6×2×0.34 | 10.6 | 147 |
| 7×2×0.34 | 11.0 | 154 |
| 10×2×0.34 | 13.1 | 209 |
| 12×2×0.34 | 14.4 | 245 |
| 15×2×0.34 | 15.2 | 279 |
| 18×2×0.34 | 16.9 | 363 |
| 2×2×0.5 | 7.6 | 76 |
| 3×2×0.5 | 9.0 | 107 |
| 4×2×0.5 | 10.3 | 134 |
| 5×2×0.5 | 10.8 | 150 |
| 6×2×0.5 | 11.4 | 176 |
| 7×2×0.5 | 11.8 | 185 |
| 10×2×0.5 | 14.3 | 275 |
| 12×2×0.5 | 15.1 | 330 |
| 15×2×0.5 | 17.0 | 380 |
| 18×2×0.5 | 18.3 | 450 |
| 2×2×0.75 | 9.0 | 105 |
| 3×2×0.75 | 10.1 | 137 |
| 4×2×0.75 | 11.5 | 166 |
| 5×2×0.75 | 12.4 | 200 |
| 6×2×0.75 | 12.5 | 236 |
| 7×2×0.75 | 13.6 | 255 |
| 10×2×0.75 | 15.7 | 363 |
| 12×2×0.75 | 17.8 | 434 |
| 15×2×0.75 | 19.3 | 500 |
| 18×2×0.75 | 20.6 | 580 |
