These screened, halogen-free cables are designed for special purpose of data transmission in wind turbines, suitable for indoor and outdoor installation.

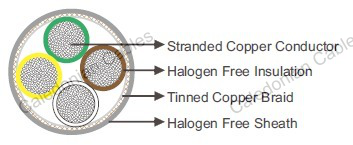

| Conductor | Stranded bare copper. |
| Insulation | Halogen free compound. |
| Screen | Tinned copper wire braid. |
| Sheath | Halogen free compound. |
| Rated Voltage Uo/U (Um) | 250V |
| Operating Temperatures | flexing: -5℃~+70℃; fixed: -40℃~+70℃ |
| Minimum Bending Radius | flexing: 10×OD; fixed: 7.5×OD |
| Flame Retardant | DIN VDE 0482 part 265-2-1/EN 50265-2-1/IEC 60332-1 |
| Halogen Free | VDE 0482 part 267/DIN EN 50267-2-1/IEC 60754 |
| Gases Corrosively | VDE 0482 part 267/DIN EN 50267-2-2/IEC 60754 |
| Oil Resistant | Yes |
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
| NO. OF CORES×MM2 | MM | KG/KM |
| 2×0.14 | 4.1 | 22 |
| 3×0.14 | 4.3 | 25 |
| 4×0.14 | 4.5 | 29 |
| 6×0.14 | 5.1 | 35 |
| 7×0.14 | 5.1 | 38 |
| 8×0.14 | 6.0 | 41 |
| 12×0.14 | 6.5 | 78 |
| 16×0.14 | 7.2 | 90 |
| 25×0.14 | 8.7 | 149 |
| 2×0.25 | 4.7 | 25 |
| 3×0.25 | 4.9 | 30 |
| 4×0.25 | 5.2 | 35 |
| 6×0.25 | 6.2 | 49 |
| 7×0.25 | 6.2 | 52 |
| 8×0.25 | 7.3 | 58 |
| 10×0.25 | 7.7 | 81 |
| 25×0.25 | 10.9 | 172 |
| 2×0.34 | 5.1 | 30 |
| 3×0.34 | 5.3 | 35 |
| 4×0.34 | 5.9 | 42 |
| 5×0.34 | 6.4 | 53 |
| 7×0.34 | 7.0 | 73 |
| 8×0.34 | 8.0 | 84 |
| 10×0.34 | 8.5 | 101 |
| 16×0.34 | 9.6 | 160 |
| 25×0.34 | 12.1 | 259 |
| 2×0.5 | 5.8 | 38 |
| 3×0.5 | 6.1 | 47 |
| 4×0.5 | 6.5 | 67 |
| 5×0.5 | 7.2 | 76 |
| 6×0.5 | 7.8 | 84 |
| 7×0.5 | 7.8 | 91 |
| 8×0.5 | 8.9 | 131 |
| 10×0.5 | 9.5 | 135 |
| 12×0.5 | 9.8 | 177 |
| 18×0.5 | 11.7 | 239 |
| 25×0.5 | 13.9 | 352 |
| 2×0.75 | 6.2 | 45 |
| 3×0.75 | 6.5 | 69 |
| 4×0.75 | 7.2 | 80 |
| 5×0.75 | 7.8 | 99 |
| 7×0.75 | 8.3 | 120 |
| 12G0.75 | 10.7 | 168 |
| 18G0.75 | 12.4 | 237 |
| 2×1 | 6.5 | 72 |
| 3×1 | 7.0 | 90 |
| 4×1 | 7.5 | 109 |
| 7×1 | 8.8 | 171 |
| 10×1 | 11.2 | 184 |
| 12G1 | 11.3 | 205 |
| 16×1 | 12.5 | 250 |
| 19G1 | 13.1 | 291 |
| 2×1.5 | 7.7 | 90 |
| 3×1.5 | 8.1 | 115 |
| 5×1.5 | 9.5 | 176 |
| 12G1.5 | 13.0 | 271 |
| 18G1.5 | 15.5 | 400 |
| 15G2.5 | 19.8 | 587 |
