Indoor/Outdoor PROFIBUS

These cables are used in the cell and field area, suitable for indoor or outdoor installation and are equipped with special PVC or PE sheath.

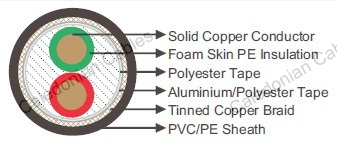

Conductor	Bare copper 1×22AWG.
Insulation	Foam skin PE.
Cable Element	Two cores with filler.
Screen 1	Polyester tape over stranded bundle.
Screen 2	Aluminium/Polyester tape.
Overall Screen	Tinned copper braid.
Sheath	PVC/PE.

Operating Temperatures	-40℃~+70℃
Minimum Bending Radius	120mm
Impedance	150Ohm +/-10%
Maximum Conductor Resistance @20°C	55Ohm/km
Nominal Mutual Capacitance	35nF/km
Minimum Insulation Resistance	1GOhm×km
Attenuation @9.6kHz	<2.5dB/km
Attenuation @38.4kHz	<4dB/km
Attenuation @4kHz	<22dB/km
Attenuation @16kHz	<42dB/km
Flame Retardant	IEC 60332-1/FT 1/FT 4
UV Resistant	Yes
