These cables are used to interconnect Profibus BUS components for the information exchange between different automation systems as well as for communication with the connected decentralized field units.

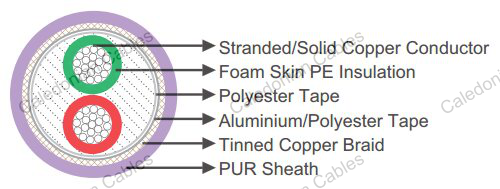

| Conductor | Bare copper 1×22AWG (0.64mm) or 19×22AWG (0.8mm). |
| Insulation | Foam skin PE. |
| Cable Element | Two cores with filler. |
| Screen 1 | Polyester tape over stranded bundle. |
| Screen 2 | Aluminium/Polyester tape. |
| Overall Screen | Tinned copper braid. |
| Sheath | PUR. |
| 1×2×0.64mm | 1×2×0.8mm | |
| Operating Temperatures | -40℃~+70℃ | |
| Minimum Bending Radius | 120mm | |
| Impedance | 150Ohm +/-10% | |
| Maximum Conductor Resistance @20°C | 55Ohm/km | 49Ohm/km |
| Nominal Mutual Capacitance | 35nF/km | 29nF/km |
| Minimum Insulation resistance | 1GOhm×km | 1GOhm×km |
| Attenuation @9.6kHz | <2.5dB/km | <3dB/km |
| Attenuation @38.4kHz | <4dB/km | <5dB/km |
| Attenuation @4kHz | <22dB/km | <25dB/km |
| Attenuation @16kHz | <42dB/km | <51dB/km |
| Flame Retardant | IEC 60332-1 | |
| Halogen Free | IEC 60754 | |
| Oil Resistant | Yes | |
| UV Resistant | Yes | |
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
| NO. OF CORES×MM2 | MM | KG/KM |
| 1×2×0.64 | 8.0 | 71 |
| 1×2×0.8 | 8.0 | 66 |
