UL/CSA 1000V PVC/PVC Screened Torsion Resistant Cable 90°C

These cables with increased tolerance to torsion application, UV and oil resistant are specifically designed for wind power applications.

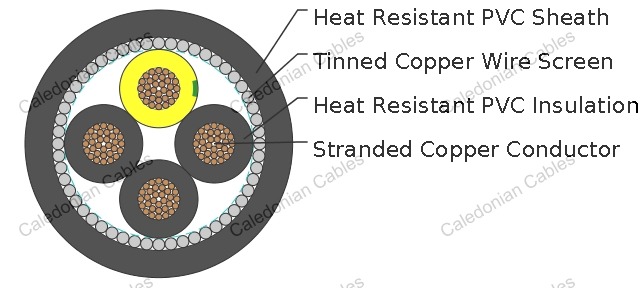

Conductor	Stranded bare copper according to DIN VDE 0295.
Insulation	Special heat resistant PVC.
Screen	Tinned copper wire wrapped.
Sheath	Special heat resistant PVC.

CONSTRUCTION	AWG /MCM	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORES×MM^2	-	MM	KG/KM
2×2×0.25	24	8.9	90
4×2×0.25	24	9.9	115
5×2×0.25	24	11.1	130
4×0.34	22	7.7	91
2×2×0.34	22	9.6	110
4×2×0.34	22	11.0	130
4×0.5	20	8.0	105
6×0.5	20	9.2	130
10×0.5	20	11.4	170
12×0.5	20	11.7	220
2×2×0.5	20	9.8	115
4×2×0.5	20	11.3	150
3×0.75	19	7.7	97
4×0.75	19	8.3	122
5×0.75	19	9.0	145
7×0.75	19	9.7	200
8×0.75	19	10.7	220
12×0.75	19	12.2	258
18×0.75	19	14.4	400
25×0.75	19	17.8	552
32×0.75	19	18.8	610
40×0.75	19	21.2	805
41×0.75	19	21.2	795
50×0.75	19	23.5	900
2×2×0.75	19	10.4	130
3×2×0.75	19	11.5	172
4×2×0.75	19	12.7	211
8×2×0.75	19	17.1	410
12×2×0.75	19	17.6	520
4×1.0	18	8.7	110
6×1.0	18	10.2	150
8×1.0	18	11.7	210
12×1.0	18	13.3	280
2×1.5	16	6.8	86
3×1.5	16	8.8	133
4×1.5	16	9.4	159
5×1.5	16	10.3	195
7×1.5	16	11.9	247
12×1.5	16	14.7	410
2×2×1.5	16	12.1	180
3×2×1.5	16	14.0	210
4×2×1.5	16	14.6	235
3×2.5	14	10.4	210
4×2.5	14	10.6	264
5×2.5	14	12.3	288
7×2.5	14	14.8	411
12×2.5	14	18.2	638
5×4	12	13.6	382
7×4	12	16.3	582
12×4	12	20.0	806
5×6	10	17.4	640
4×10	8	17.8	727
5×10	8	19.8	935
4×16	6	21.1	1072
5×16	6	26.2	1330
4×25	4	26.0	1664
5×25	4	28.6	2014
4×50	1	37.0	3200
1×70	2/0	19.8	950
1×95	3/0	22.5	1280
1×120	4/0	25.0	1570
1×150	300	24.9	2000
1×185	350	27.8	2340
1×240	500	33.0	3150
1×300	600	39.0	3920
1×400	750	43.0	5100
1×500	1000	46.5	6200
