    S-3GSHCOEU 0.6/1kV & UL 1000V 90°C

    Application

    These cables are designed for use at medium mechanical stresses in wind turbines.

    Standards

    • UL 758
    • DIN VDE 0250

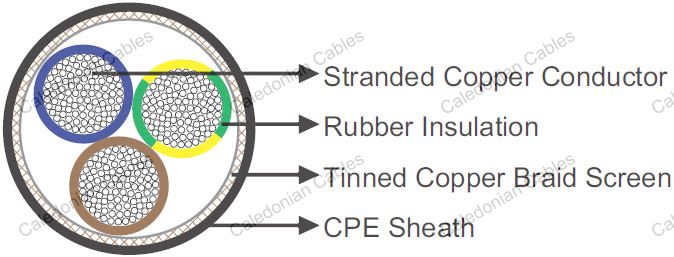

    Construction

    Conductor Stranded bare copper, class 5 according to IEC 60228/DIN EN 60228
    Insulation Rubber compound
    Screen Tinned copper wires. Mixed braid of tinned copper wires and polyester yarn can be offered upon request
    Sheath CPE

    Technical Data

    Rated Voltage Uo/U(Um) 600/1000V (DIN VDE 0250)/1000V (AWM 758)
    Operating Temperatures -40℃~+90℃
    Maximum Permissible Tensile Load 15 N/mm^2
    Minimum Bending Radius flexing: 10×OD; fixed: 6×OD
    Short-circuit Temperature 250℃
    Flame Retardant IEC 60332-1
    Oil Resistant Yes
    Ozone Resistant Yes
    UV Resistant Yes

    Dimensions and Weight

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM^2 MM KG/KM
    1×95 23.0 1120
    1×120 26.0 1607
    1×185 30.5 2341
    1×240 34.0 2953
