NA2XS(F)2Y RE/RM Medium Voltage Power Cable

Application

These cables are commonly used in wind turbines, suitable for indoor installation and in cable ducts, outdoors, underground and in water.

Standards

IEC 60502-2
DIN VDE 0276 part 620

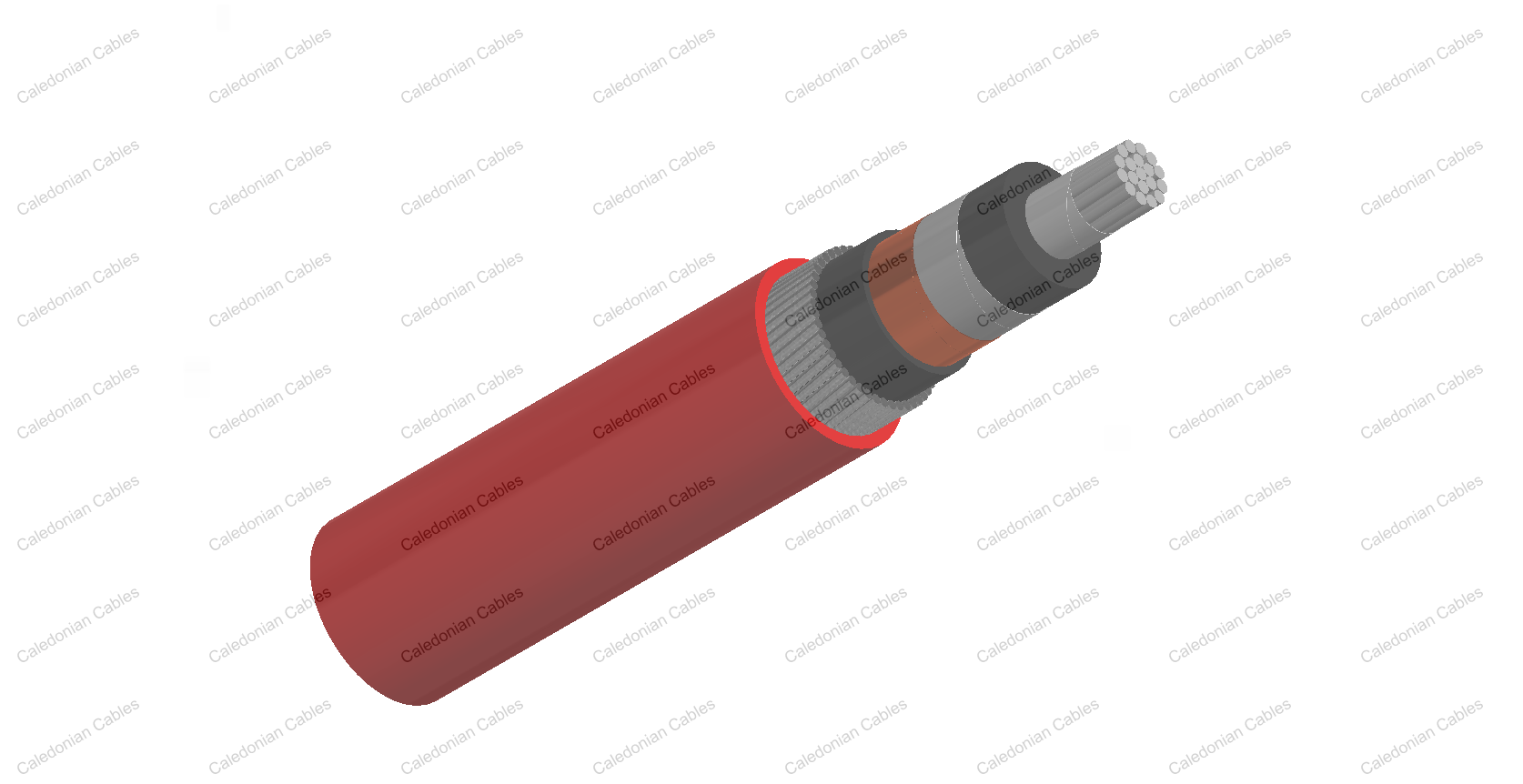

Construction

Conductor	Circular solid (RE) or stranded (RM) aluminium conductor
Conductor Screen	Semiconducting compound
Insulation	XLPE
Insulation Screen	Semiconducting compound
Tape	Semiconducting swellable tape
Screen	Braiding of copper wires with copper tape
Tape	Separation tape
Sheath	PE

Technical Data

Rated Voltage Uo/U (Um)	6/10 kV, 12/20 kV, 18/30 kV
Operating Temperatures	-40℃~+90℃
Minimum Bending Radius	15×OD
Short-circuit Temperature	250℃
Longitudinally Water-Tight	Yes
Halogen Free	Yes
Lead Free	Yes

Dimensions and Weight

6/10KV

CONSTRUCTION	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORES×MM^2	MM	KG/KM
1×70 re	26.5	760
1×95 re	26.5	860
1×120 re	28.5	930
1×150 re	29.5	1130
1×185 re	31.5	1230
1×240 re	33.5	1470
1×300 re	36.5	1670
1×400 re	40.5	2060
1×500 re	43.5	2400
1×630 re	45.5	2790
1×800 re	49.5	3340
1×1000 re	53.5	4000
1×35 rm	25.5	600
1×50 rm	26.5	670
1×70 rm	28.5	770
1×95 rm	29.0	880
1×120 rm	31.0	950
1×150 rm	32.0	1150
1×185 rm	34.0	1250
1×240 rm	36.0	1500
1×300 rm	38.5	1700
1×400 rm	42.5	2100
1×500 rm	45.5	2450
1×630 rm	47.5	2850
1×800 rm	52.5	3490
1×1000 rm	56.5	4080

12/20 KV

CONSTRUCTION	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORES×MM^2	MM	KG/KM
1×70 re	30.5	910
1×95 re	31.5	1030
1×120 re	32.5	1130
1×150 re	33.5	1320
1×185 re	35.5	1470
1×240 re	38.5	1720
1×300 re	40.5	1960
1×400 re	43.5	2300
1×500 re	46.5	2740
1×630 re	49.5	3070
1×800 re	53.5	3680
1×1000 re	57.5	4360
1×50 rm	30.5	820
1×70 rm	32.5	930
1×95 rm	33.5	1050
1×120 rm	35.0	1150
1×150 rm	36.0	1350
1×185 rm	38.0	1500
1×240 rm	41.0	1750
1×300 rm	43.0	2000
1×400 rm	46.0	2350
1×500 rm	49.0	2800
1×630 rm	51.5	3140
1×800 rm	57.5	3840
1×1000 rm	60.5	4460

18/30 KV

CONSTRUCTION	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORES×MM^2	MM	KG/KM
1×70 re	34.5	1180
1×95 re	35.5	1320
1×120 re	37.5	1420
1×150 re	38.5	1670
1×185 re	40.5	1810
1×240 re	42.5	2010
1×300 re	45.5	2300
1×400 re	48.5	2740
1×500 re	51.5	3140
1×630 re	55.5	3480
1×800 re	59.5	4100
1×1000 re	63.5	4800
1×50 rm	35.0	1100
1×70 rm	37.0	1200
1×95 rm	38.0	1350
1×120 rm	40.0	1450
1×150 rm	41.0	1700
1×185 rm	43.0	1850
1×240 rm	45.0	2050
1×300 rm	48.0	2350
1×400 rm	51.0	2800
1×500 rm	54.0	3200
1×630 rm	57.5	3570
1×800 rm	62.5	4280
1×1000 rm	66.5	4970
