    N2XY 0.6/1kV Power Cable

    Application

    These cables are designed for energy supply, suitable for installed in underground, water, cable ducts, power tations, outdoors, indoors, for industry and distribution boards as well as in subscriber networks, where mechanical damages are not expected.

    Standards

    • IEC 60502
    • DIN VDE 0276 part 603

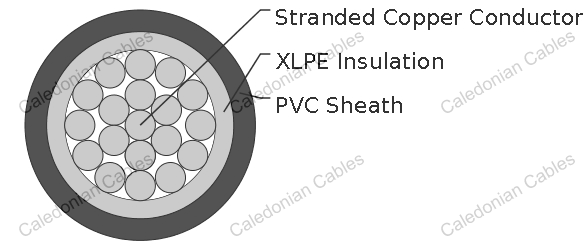

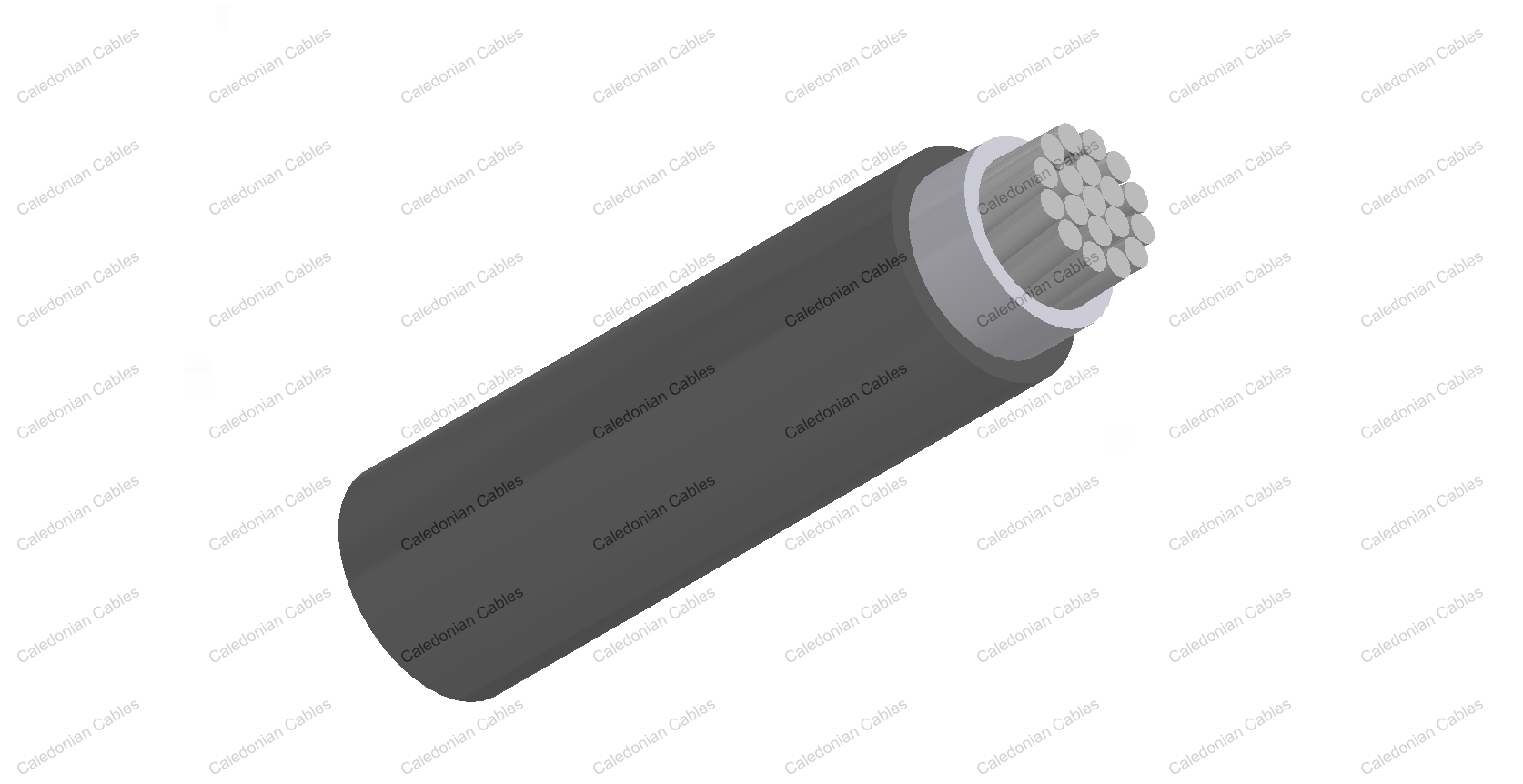

    Construction

    Conductor Stranded bare copper conductor according to VDE 0295/IEC 60228
    Insulation Cross-linked polyethylene (XLPE)
    Inner Covering Extruded inner covering
    Sheath PVC

    Technical Data

    Rated Voltage Uo/U (Um) 0.6/1kV
    Operating Temperatures -40℃ ~ +70℃
    Minimum Bending Radius 15×OD
    Maximum Permissible Tensile Load 50N/mm^2
    Short-circuit Temperature 250℃
    Flame Retardant VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1
    Silicone Free Yes

    Dimensions and Weight

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM^2 MM KG/KM
    1×95 21.0 1200
    1×150 25.0 1800
    1×185 27.0 2200
    1×240 30.0 2800
    1×300 32.0 3300
    1×400 36.0 4200
    1×500 40.0 5400
    4G35 31.0 2200
    4G50 33.0 2400
    4G75 38.0 3100
    4G95 42.0 4200
    4G120 46.0 5100
    4G150 50.0 6300
    4G185 55.0 8000
    4G240 70.0 10000

    G: with green-yellow earth core        ×: without green-yellow earth core
