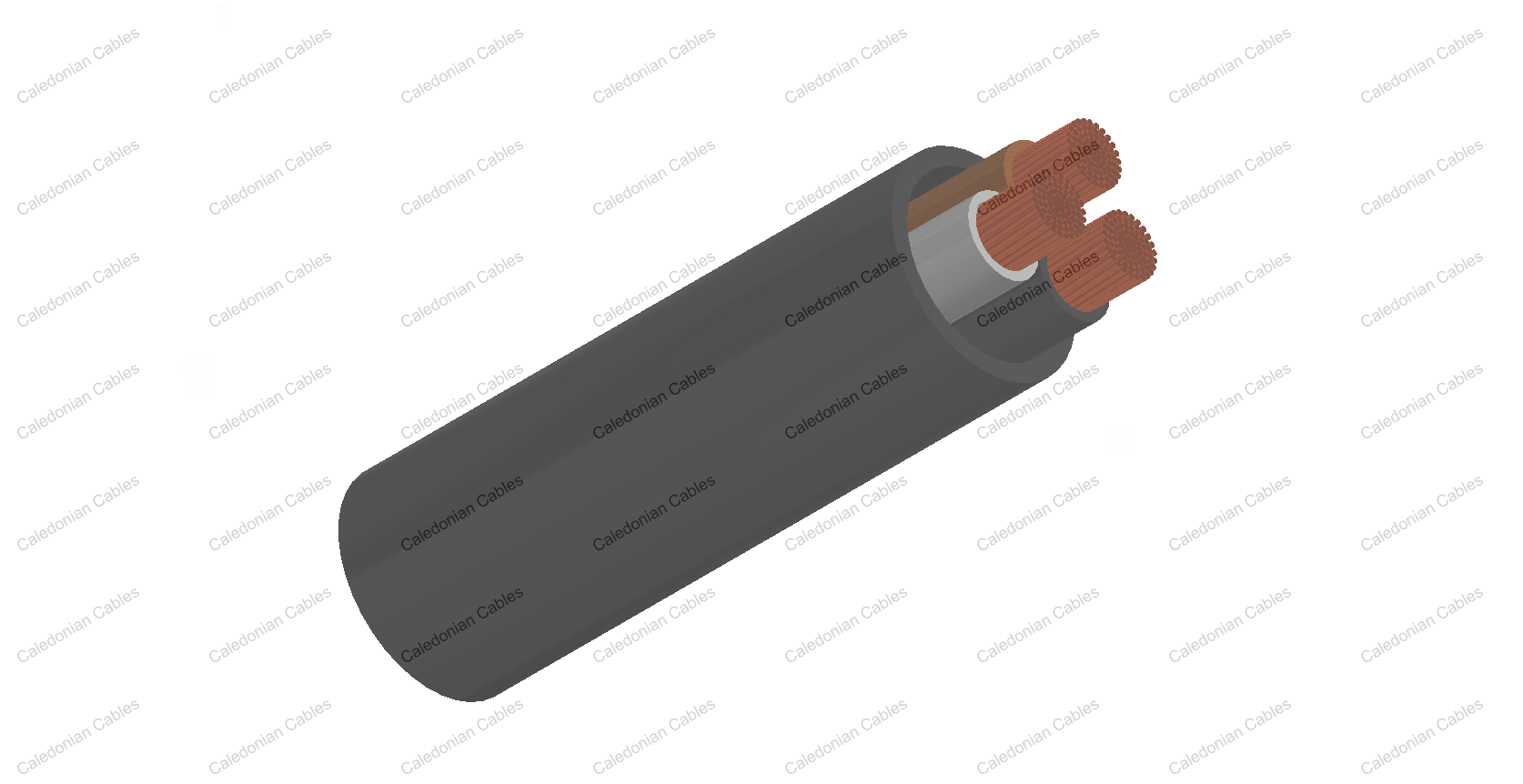

These cables with increased tolerance to torsion application, UV and ozone resistant, good bending and halogen free are specifically designed for the torsion applications in wind turbines, suitable for transmit energy from the generator to the transformer.
IEC 60502

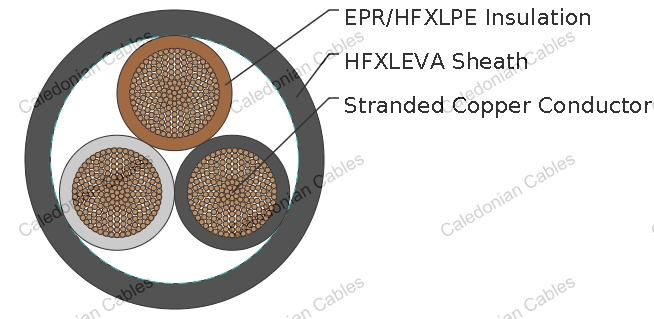

Conductor : Stranded tinned copper, class 5/class 6 according to IEC 60228.
Insulation : EPR/HFXLPE.
Sheath : HFXLEVA.
| Rated Voltage U0/U (Um) | 0.6/1kV |
|---|---|
| Operating Temperatures | -40℃~+90℃ |
| Minimum Bending Radius | 6×OD |
| Torsion Application | +/-144°/m |
| Flame Retardant | IEC 60332-3 |
| Halogen Free | IEC 60754 |
| Corrosive Gases | IEC 60754 |
| Smoke Density | IEC 61034 |
| Oil Resistant | Yes |
| Ozone Resistant | Yes |
| UV Resistant | Yes |
| Cold Resistant | CSA C 22.2 |
| Construction | Nominal Overall Diameter | Nominal Weight |
|---|---|---|
| No. of cores×mm² | mm | kg/km |
| 3×25 | 27.5 | 1500 |
| 3×35 | 31.0 | 1960 |
| 3×50 | 36.0 | 2640 |
| 3×70 | 40.5 | 3150 |
| 3×95 | 46.5 | 4575 |
| 3×120 | 50.5 | 5490 |
| 4×25 | 30.5 | 1870 |
| 4×35 | 34.5 | 2320 |
| 4×50 | 39.0 | 3100 |
| 4×70 | 43.5 | 4240 |
| 4×95 | 51.5 | 5716 |
| 4×120 | 56.0 | 6950 |
