These cables are designed for special application condition in wind turbines, special for medium mechanical stress and for operation under permanent influence of seawater and usage outdoor.

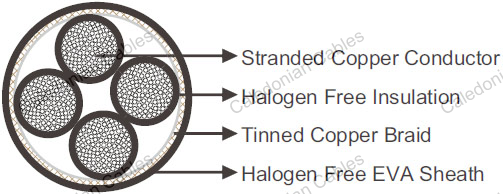

| Conductor | Stranded bare copper conductor |
| Insulation | Extruded halogen free rubber compound EI8 |
| Screen | Tinned wire copper braid |
| Sheath | Extruded halogen free EVA compound EM8 |
| RATED VOLTAGE U0/U (UM) | 0.6/1kV |
|---|---|
| OPERATING TEMPERATURES | flexing: -35℃~+90℃; fixed: -40℃~+90℃ |
| MINIMUM BENDING RADIUS | flexing: 6×OD; fixed: 4×OD |
| TORSION APPLICATION | ± 100 °/m |
| MAXIMUM PERMISSIBLE TENSILE LOAD | 15 N/mm^2 (in operation) |
| SHORT-CIRCUIT TEMPERATURE | 250℃ |
| FLAME RETARDANT | EN 50265-2-1 |
| HALOGEN FREE | IEC 60754 |
| SMOKE DENSITY | IEC 61034 |
| OIL RESISTANT | Yes |
| OZONE RESISTANT | Yes |
| SILICONE FREE | Yes |
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
| NO. OF CORES×MM^2 | MM | KG/KM |
| 25×0.75 | 18.0 | 500 |
| 25×1 | 20.0 | 550 |
| 4×1.5 | 10.0 | 150 |
| 12×1.5 | 16.0 | 400 |
| 32×1.5 | 26.0 | 950 |
| 42×1.5 | 35.0 | 1700 |
| 12×2.5 | 23.0 | 620 |
| 5×2.5 | 15.0 | 300 |
| 4×4 | 13.5 | 300 |
