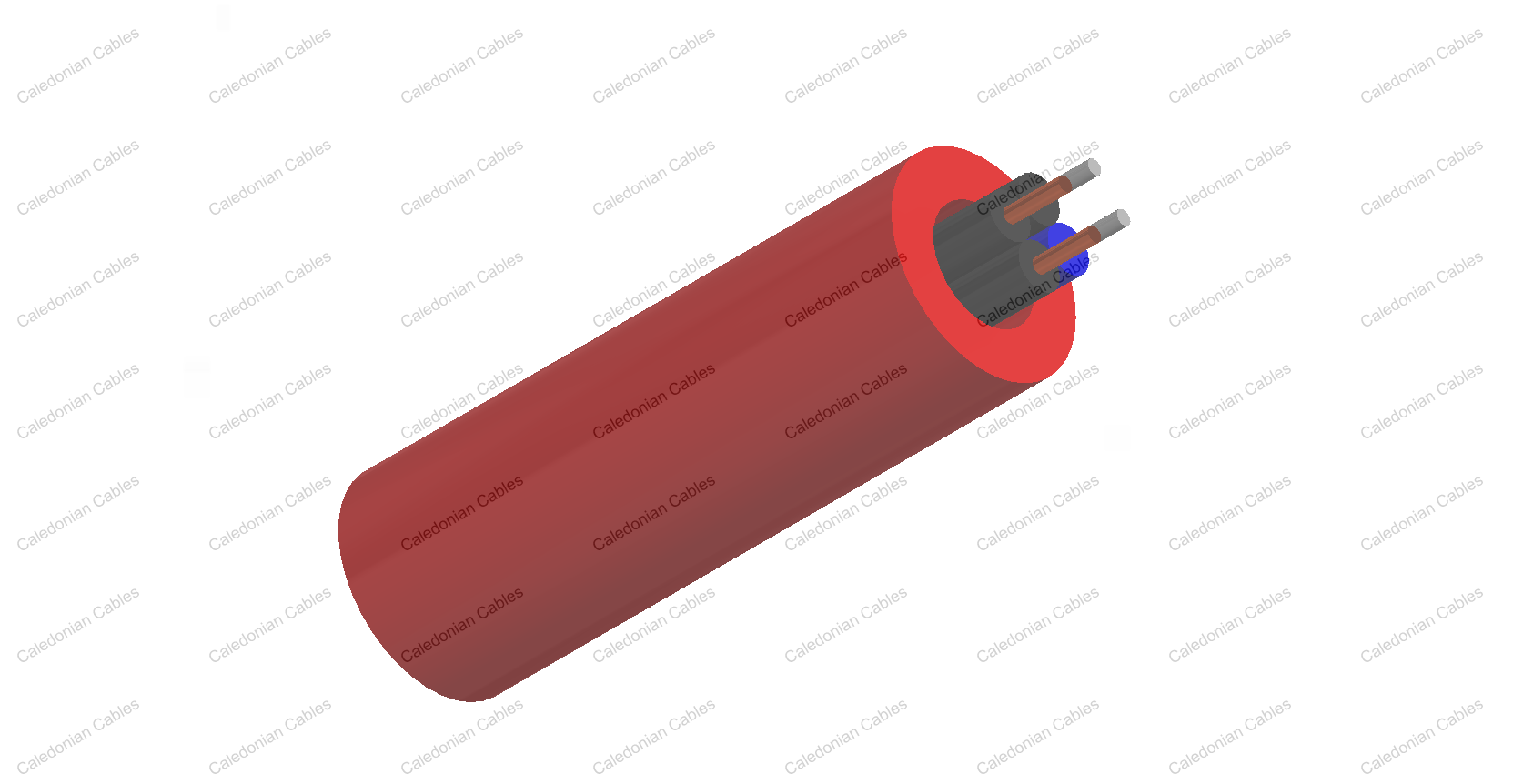

    I-V2Y(ZN)11Y/I-V2Y(ZN)2Y POF Breakout Cable

    Application

    These flexible and robust cables are used in mechanical engineering, both in mobile and fixed applications, suitable for applications where trouble-free data transmission in necessary under heavyduty conditions.

    Standards

    • DIN VDE 0888
    • IEC 60794

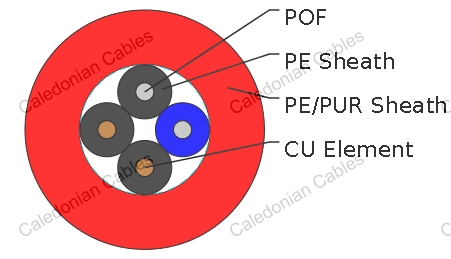

    Construction

    Fibre Type POF 980/1000.
    Strain Relief Aramid yarns.
    Break-out Unit Sheath PE.
    Outer Sheath PE/PUR.
    Optional Element: Copper element or dummy element.

    Technical Data

    Operating Temperatures -20℃~+80℃
    Minimum Bending Radius 30~95mm depend on cable construction
    Oil Resistant Yes

    Dimensions and Weight

    CONSTRUCTION COPPER ELEMENT CORE/CLADDING
    DIAMETER
    NOMINAL OVERALL
    DIAMETER
    NOMINAL WEIGHT
    NO. OF POF ELEMENT NO. OF CORES×MM2 ΜM MM KG/KM
    1 - 980/1000 5.8 30
    2 - 980/1000 6.0 36
    4 - 980/1000 7.1 65
    2 2×1 980/1000 7.8 60
    2 3×1.5 980/1000 11.0 132
    4 19×1 980/1000 16.0 440
