I-V(ZN)HH Fibre Optic Breakout Cable

Application

These flexible and robust cables are designed for industrial use, suitable for fixed and normal flexible installations.

Standards

  • EN 187000
  • IEC 60794-2
  • IEC 60794-2-20
  • ISO 11801
  • EN 50173-1

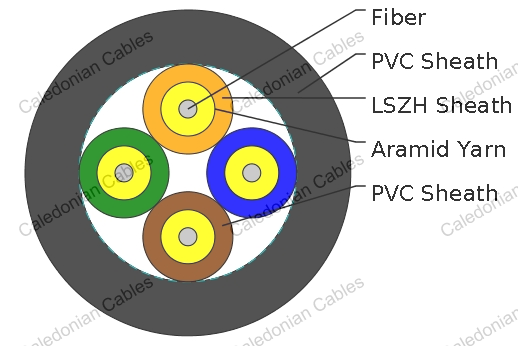

Construction

Core Type Tight buffer.
Strain Relief Aramid yarns.
Break-out Unit Sheath LSZH.
Central Strength Member FRP strength member, covered with LSZH material as appropriate.
Outer Sheath LSZH.

Technical Data

Operating Temperatures -20℃~+70℃
Minimum Bending Radius 75~175mm depend on No. of fibres
Torsion Application 5 cycles +/- 1 turn
Flame Retardant IEC 60332-1/IEC 60332-3
Halogen Free IEC 60754
No Acid Matters IEC 60754
Smoke Density IEC 61034
UV Resistant Yes

Dimensions and Weight

CONSTRUCTION TIGHT BUFFER FIBER?
DIAMETER		 NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
NO. OF FIBRES ΜM MM KG/KM
2 900+/-50 7.5 60
4 900+/-50 7.5 60
6 900+/-50 8.5 75
8 900+/-50 10.0 100
12 900+/-50 12.5 160
16 900+/-50 12.0 145
24 900+/-50 14.5 210
