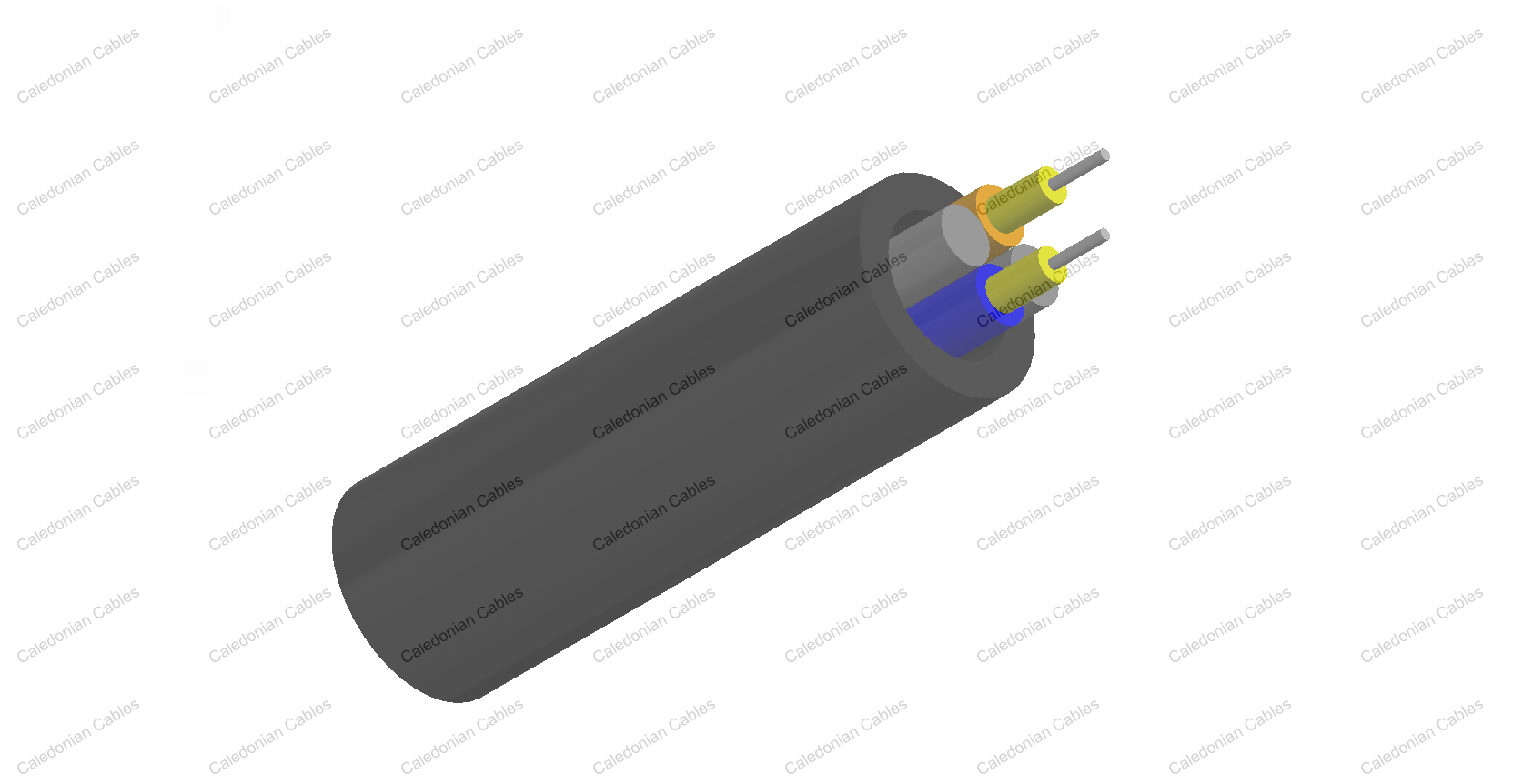

I-V(ZN)H11Y Fibre Optic Breakout Cable

Application

These cables are designed for wind turbine control or LAN backbone, suitable for indoor installation or outdoor installation in ducts.

Standards

  • DIN VDE 0888
  • IEC 60794

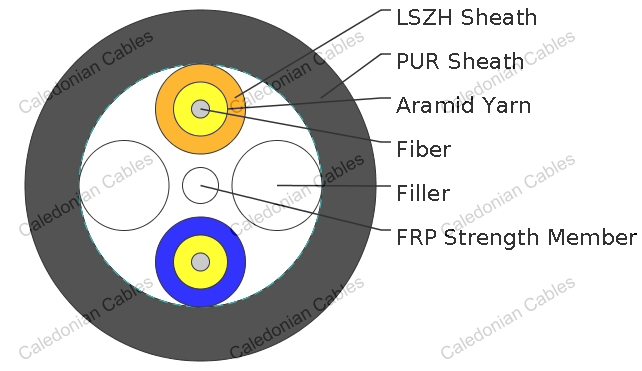

Construction

Core Type Tight buffer.
Strain Relief Aramid yarns.
Break-out Unit Sheath LSZH.
Central Strength Member Dielectric Material.
Outer Sheath PUR

Technical Data

Operating Temperatures -40℃~+70℃
Minimum Bending Radius 20×OD
Torsion Application +/-180° 500 times/2m; +/-360° 5 times/2m

Dimensions and Weight

CONSTRUCTION FIBRE TYPE NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
NO. OF FIBRES - MM KG/KM
2 Multimode G50/125 7.5 45
2 Multimode G62.5/125 7.5 45
2 Single-Mode E9/125 7.5 45
