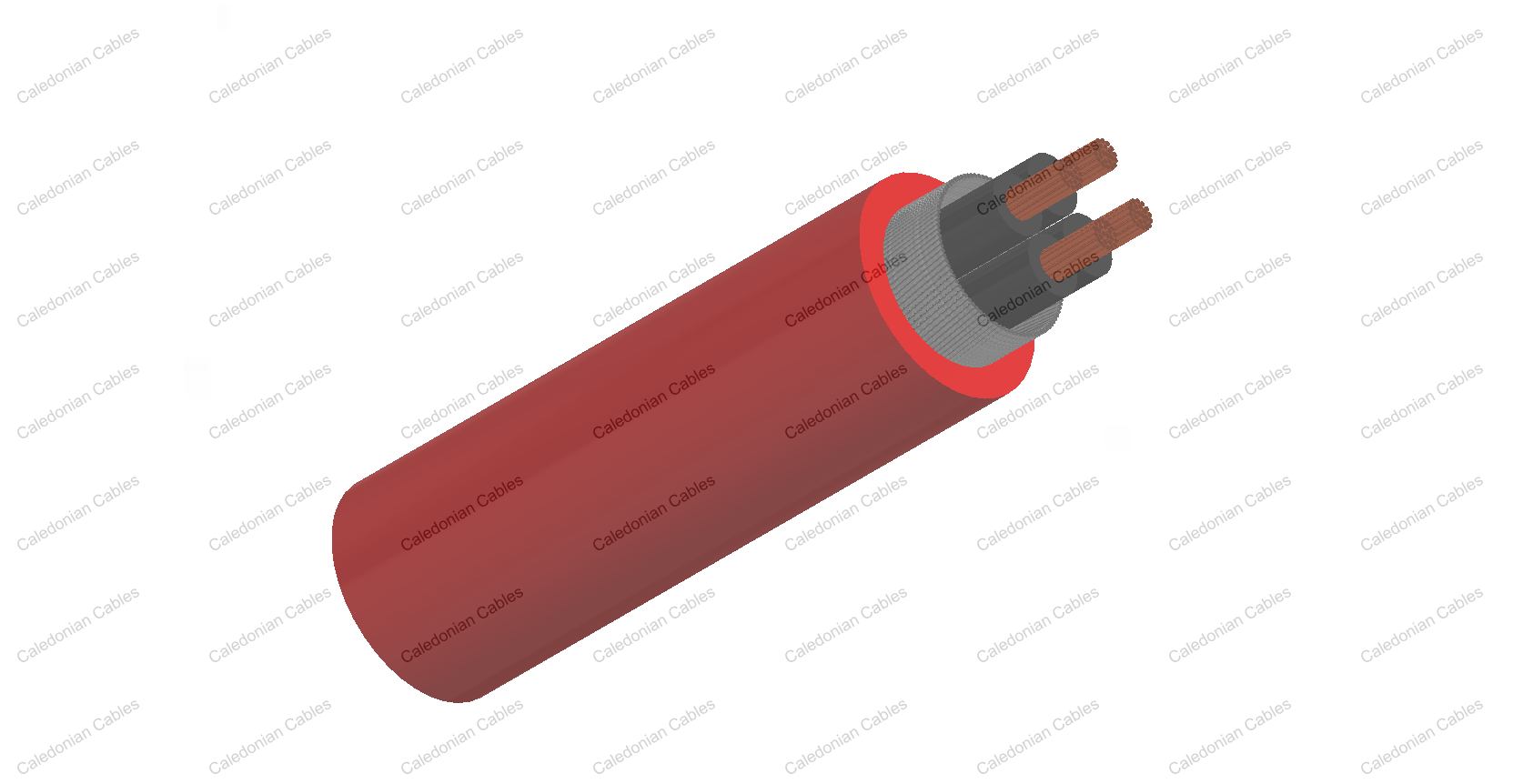

    Halogen Free Torsion Resistant Fire Alarm Cable 24V

    Application

    These fire alarm cables are designed for the torsion applications in the loop section of wind turbines.

    Standards

    • IEC 60502
    • DIN VDE 0250

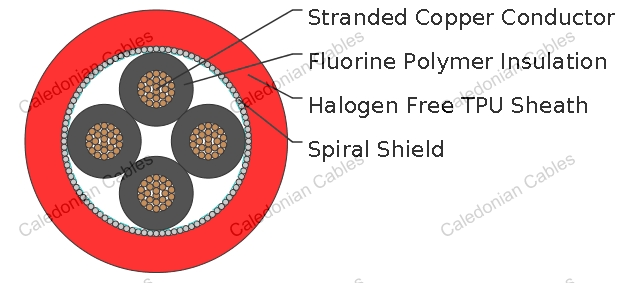

    Construction

    Conductor Stranded copper wires, class 6 according to DIN VDE 0295/ IEC 60228
    Insulation Fluorine polymer
    Screen Tinsel braid or spiral shield
    Sheath Flame retardant halogen-free TPU

    Technical Data

    Rated Voltage U0/U(Um) 24V
    Operating Temperatures -50℃~+90℃
    Minimum Bending Radius 7.5×OD
    Torsion Application +/-1080°/5m
    Flame Retardant IEC 60332-3
    Halogen Free IEC 60754
    Oil Resistant Yes
    Abrasion Resistant Yes

    Dimensions and Weight

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM^2 MM KG/KM
    4×0.75 6.6 82
