    H07ZZ-F & UL/CSA 1000V EPR/XLEVA Torsion Resistant Cable

    Application

    These halogen free cables with increased tolerance to torsion application, improved behaviour against abrasion and extended temperature, UV and ozone resistant are specially designed for wind turbines.

    Standards

    • UL/CSA 22.2
    • UL 758
    • HD 22.13

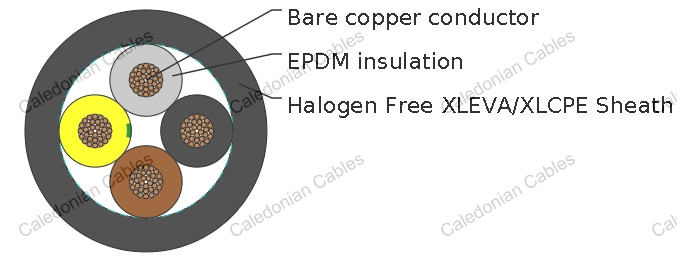

    Construction

    Conductor Stranded annealed bare copper, class 5 according to DIN VDE 0295/HD 383/IEC 60228.
    Insulation Special thermoset EPR for high temperature. Special cross-linked improved for EI8 and EI7 EPDM can be offered upon request.
    Sheath Special halogen free thermoset XLEVA. High mechanical performance special crosslinked EM8 synthetic halogen free rubber based on CPE can be offered upon request.

    Technical Data

    RATED VOLTAGE U0/U (UM) CENELEC 450/750V; UL/CSA 1000V
    OPERATING TEMPERATURES -40℃~+90℃
    MAXIMUM PERMISSIBLE TENSILE LOAD 15 N/mm^2
    MINIMUM BENDING RADIUS flexing: 6×OD; fixed: 4×OD
    TORSION APPLICATION +/-150°/m
    SHORT-CIRCUIT TEMPERATURE 250℃
    FLAME RETARDANT IEC 60332-1/IEC 60332-3
    HALOGEN FREE IEC 60754
    SMOKE DENSITY LSF EN 61034/IEC 61034
    OIL RESISTANT Yes
    OZONE RESISTANT Yes
    UV RESISTANT Yes
    WATER RESISTANT Yes
    IMPACT RESISTANT Yes

    Dimensions and Weight

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM^2 MM KG/KM
    1×25 13.5 371
    1×35 15.0 482
    1×50 18.7 730
    1×70 19.3 888
    1×95 23.0 1220
    1×120 25.5 1540
    1×150 28.8 1810
    1×185 31.4 2210
    1×240 33.8 2750
    1×300 37.7 3520
    1×400 41.4 4510
    3×120 56.0 5200
    3×150 61.5 6400
    3×240 72.0 9780
    3×25 30.0 1420
    3×35 35.3 1850
    3×50 39.8 2480
    3×70 43.8 3180
    3×95 49.0 4260
    3×120 52.8 5490
    4G25 32.8 1870
    4G35 36.3 2320
    4G50 42.5 3150
    4G70 48.2 4240
    4G95 53.5 5480
    4G120 58.3 6950

    G: with green-yellow earth core ×: without green-yellow earth core
