    H07ZZ-F 450/750V Torsion Resistant Cable

    Application

    These cables with increased tolerance to torsion application, improved behaviour against abrasion and extended temperature, UV and ozone resistant are specially designed for wind turbines and to be used for the loop.

    Standards

    • HD 22-13

    Construction

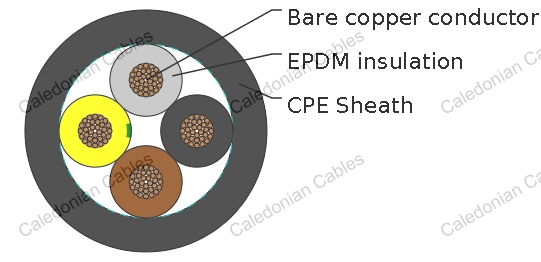

    Conductor Stranded bare copper, fine wire class 5 according to DIN VDE 0295/HD 383/ IEC 60228.
    Insulation Special cross-linked EPDM rubber (type EI7) for high temperatures.
    Sheath Special cross-linked CPE (type EM7).

    Technical Data

    RATED VOLTAGE U0/U (UM) 450/750V
    OPERATING TEMPERATURES -40℃~+90℃
    MAXIMUM PERMISSIBLE TENSILE LOAD 15 N/mm^2
    MINIMUM BENDING RADIUS flexing: 6×OD; fixed: 4×OD
    TORSION APPLICATION +/-150°/m
    SHORT-CIRCUIT TEMPERATURE 250℃
    FLAME RETARDANT EN 50265-1/EN 50265-2-1/IEC 60332-1/IEC 60332-3
    SMOKE DENSITY LSF EN 61034
    OIL RESISTANT Yes
    OZONE RESISTANT Yes
    UV RESISTANT Yes
    WATER RESISTANT Yes
    IMPACT RESISTANT Yes

    Dimensions and Weight

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM^2 MM KG/KM
    1×(G)10 10.3 175
    1×(G)16 11.7 245
    1×(G)25 13.9 365
    1×(G)35 15.7 470
    1×(G)70 20.3 880
    1×(G)120 24.7 1430
    1×(G)150 27.1 1740
    1×(G)185 29.5 2160
    1×(G)240 32.8 2730
    1×50 17.9 662
    1×95 22.7 1160
    1×300 36.0 3480
    1×400 40.2 4510
    2×1.5 9.4 110
    2×10 19.4 530
    2×16 21.9 730
    2×2.5 11.2 160
    2×4 12.9 235
    2×6 14.1 275
    2×25 26.2 1060
    3×25 28.6 1345
    3×35 32.2 1760
    3×50 37.3 2390
    3×70 43.0 3110
    3×95 47.2 4170
    3×(G)1.5 10.1 130
    3×(G)2.5 12.0 195
    3×(G)4 13.9 285
    3×(G)6 15.6 340
    3×(G)10 21.1 650
    3×(G)16 23.9 910
    3×120 51.7 5060
    3×150 57.0 6190
    4G1.5 11.2 160
    4G2.5 13.6 240
    4G4 15.5 350
    4G6 17.1 440
    4G10 23.5 810
    4G16 25.9 1150
    4G25 31.0 1700
    4G35 35.3 2170
    4G50 40.5 3030
    4G70 46.4 3990
    4G95 52.2 5360
    4G120 56.5 6480
    5G1.5 12.2 230
    5G2.5 14.7 295
    5G4 17.1 430
    5G6 19.0 540
    5G10 25.0 1020
    5G16 28.7 1350
    5G25 35.0 2080
    5G35 38.4 2650
    5G50 43.9 3750
    5G70 50.5 4950
    5G95 57.8 6700
    6G1.5 14.7 295
    6G2.5 16.9 390
    7G1.5 16.5 350
    7G2.5 18.5 460
    8×1.5 17.0 400
    10G1.5 19.0 470
    12G1.5 19.3 500
    12G2.5 22.6 670
    18G1.5 22.6 725
    18G2.5 26.5 980
    24G1.5 26.4 980
    24G2.5 31.4 1390

    G: with green-yellow earth core ×: without green-yellow earth core
