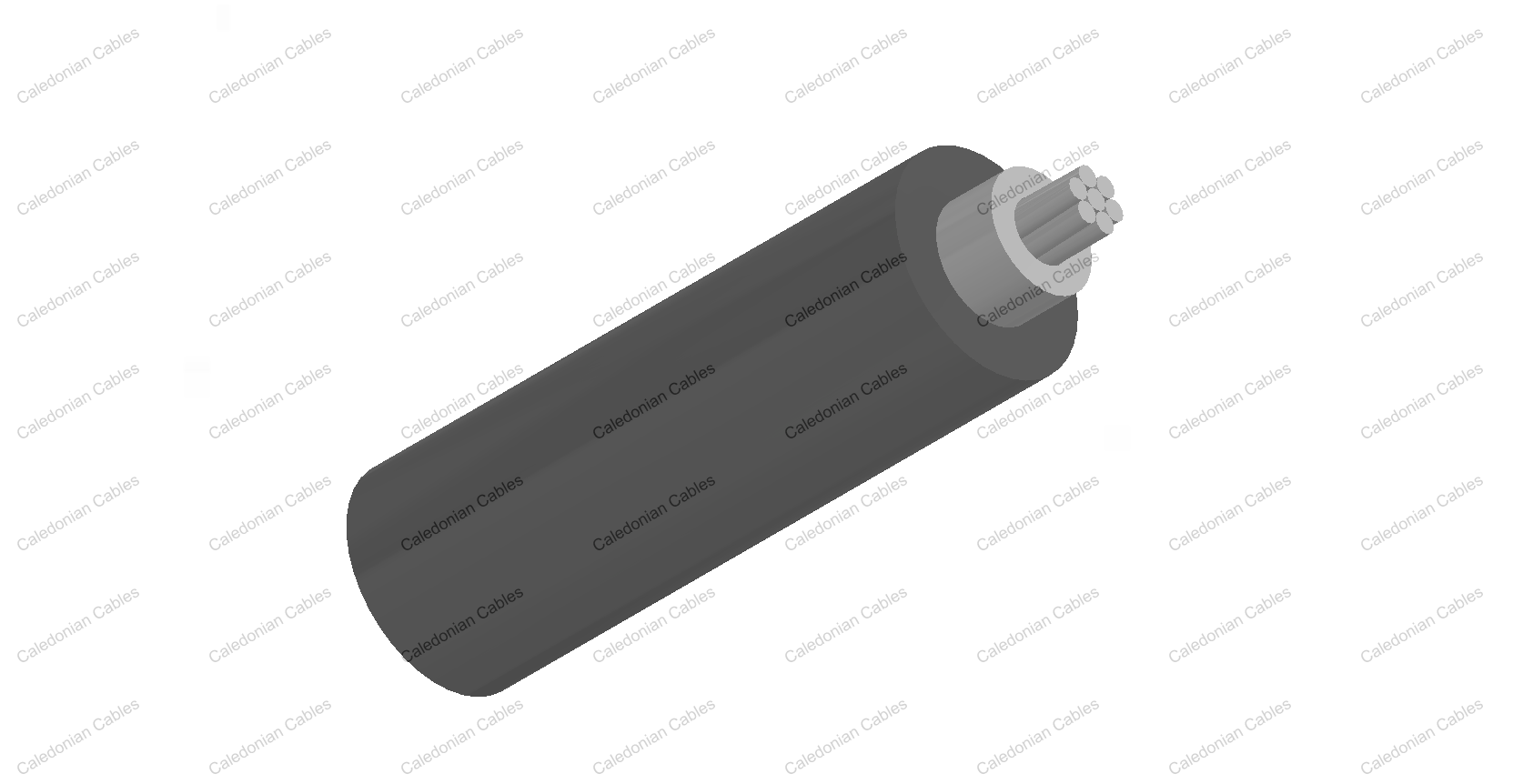

These cables are used for main power layout from the nacelle to the base of the wind tower.

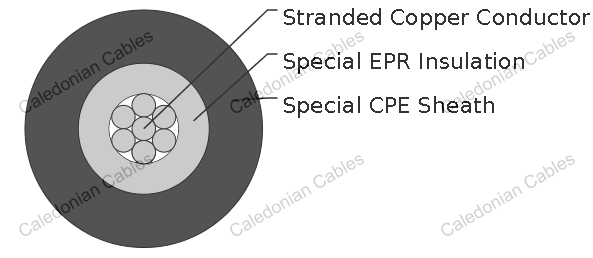

| Conductor | Stranded tinned copper according to ASTM B-172/ ASTM B-33. |
| Insulation | Special EPR. XLPO can be offered upon request. |
| Sheath | Special CPE. XLPO can be offered upon request. |
| RATED VOLTAGE U0/U (UM) | 2000V |
|---|---|
| OPERATING TEMPERATURES | -40℃~+90℃ |
| MINIMUM BENDING RADIUS | flexing: 6×OD; fixed: 4×OD |
| TORSION APPLICATION | +/-180°/m |
| FLAME RETARDANT | IEEE 1202/CSA FT4 FT1 |
| OIL RESISTANT | Yes |
| UV RESISTANT | Yes |
| COLD RESISTANT | CSA C 22.2 |
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
| NO. OF CORES×MM^2 | MM | KG/KM |
| 1×14 | 5.9 | 37 |
| 1×12 | 6.3 | 69 |
| 1×10 | 7.2 | 100 |
| 1×8 | 8.2 | 142 |
| 1×6 | 10.1 | 200 |
| 1×4 | 11.5 | 286 |
| 1×2 | 12.6 | 370 |
| 1×1 | 16.1 | 637 |
| 1×1/0 | 17.5 | 715 |
| 1×2/0 | 18.5 | 830 |
| 1×3/0 | 20.2 | 1104 |
| 1×4/0 | 21.7 | 1298 |
| 1×262 | 24.8 | 1590 |
| 1×313 | 26.4 | 1872 |
| 1×373 | 28.2 | 2176 |
| 1×444 | 30.0 | 2570 |
| 1×535 | 32.2 | 3046 |
| 1×646 | 34.8 | 3600 |
| 1×777 | 37.0 | 4290 |
| 1×929 | 39.5 | 5144 |
| 1×1111 | 44.4 | 6070 |
