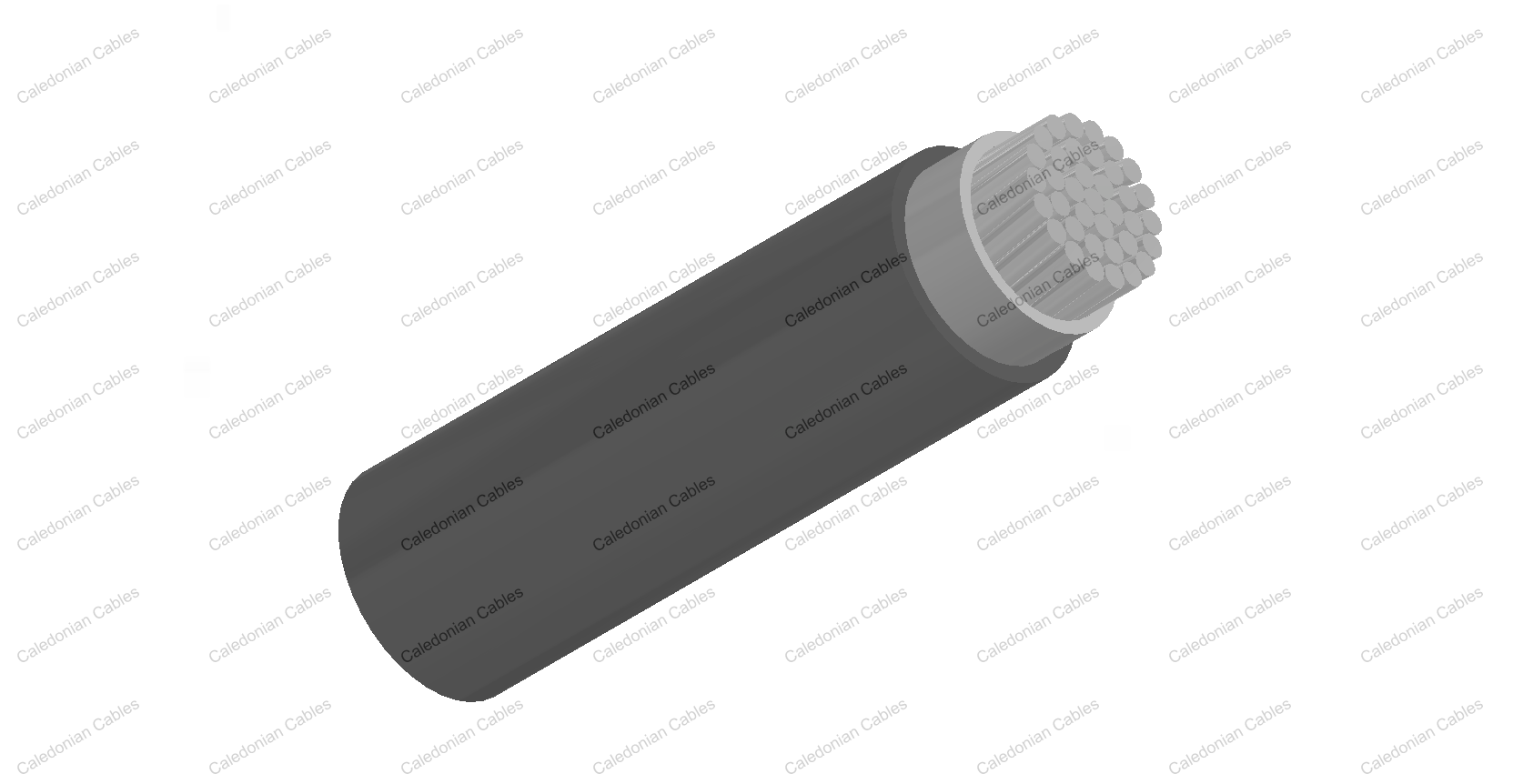

These cables are designed for main power lines of permanent routing in wind tower installation.

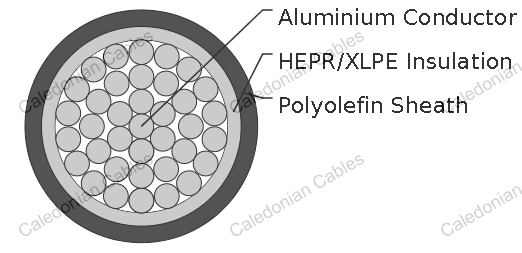

| Conductor | Aluminium conductor, class 2 to IEC 60228 |
| Insulation | HEPR. XLPE can be offered upon request |
| Inner Covering | Rubber compound type GM1b |
| Sheath | Compound based on polyolefin, type HXM1 |
| RATED VOLTAGE U0/U (UM) | 0.6/1kV |
|---|---|
| OPERATING TEMPERATURES | -40℃~+90℃ |
| MINIMUM BENDING RADIUS | 4×OD |
| SHORT-CIRCUIT TEMPERATURE | 250℃ |
| FLAME RETARDANT | IEC 60332-1 |
| HALOGEN FREE | IEC 60754 |
| GASES CORROSIVELY | DIN EN 50267-2/ IEC 60754 |
| SMOKE DENSITY | IEC 61034 |
| OIL RESISTANT | Yes |
| OZONE RESISTANT | Yes |
| UV RESISTANT | Yes |
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
| NO. OF CORES×MM^2 | MM | KG/KM |
| 1×50 | 13.0 | 266 |
| 1×70 | 15.0 | 352 |
| 1×95 | 16.5 | 450 |
| 1×120 | 18.0 | 556 |
| 1×150 | 20.0 | 686 |
| 1×185 | 22.5 | 842 |
| 1×240 | 26.0 | 1076 |
| 1×300 | 29.0 | 1299 |
| 1×400 | 32.5 | 1680 |
| 3×150 | 44.0 | 2756 |
| 4×150 | 49.0 | 3367 |
