AL Conductor EPR/XLEVA 0.6/1kV LSOH Power Cable 90°C

These durable, high temperature resistant LSOH cables are designed for wind turbines and dedicated for fixed installation inside the tower.

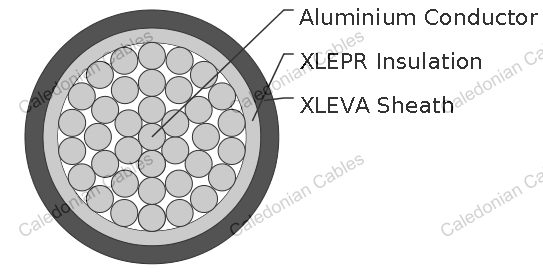

Conductor	Aluminium conductor, class 2 according to IEC 60228/EN 60228
Insulation	Special cross-linked halogen free rubber EPR for high temperatures
Sheath	Special cross-linked synthetic halogen free rubber EM8 (XLEVA). CPE can be offered upon request.

RATED VOLTAGE U0/U (UM)	0.6/1kV
OPERATING TEMPERATURES	-40℃~+90℃
MINIMUM BENDING RADIUS	6×OD
MAXIMUM PERMISSIBLE TENSILE LOAD	15 N/mm^2
SHORT-CIRCUIT TEMPERATURE	250℃
FLAME RETARDANT	IEC 60332-1/ IEC 60332-3
HALOGEN FREE	IEC 60754
CORROSIVE GASES	IEC 60754
SMOKE DENSITY	IEC 61034
OIL RESISTANT	Yes
OZONE RESISTANT	Yes
UV RESISTANT	Yes
WATER RESISTANT	Yes
