The cables are suitable for fixed installation and flexible operation as motor power supply cables for frequency converter controlled drives in the mining and tunneling.
| Construction | DIN VDE 0250-811 |
| General Requirements | DIN VDE 0250-1 |
| Guide Use | DIN VDE 0298-3 |
| Electrical Tests | DIN VDE 0472-501, 503, 508 |
| Non-Electrical Tests | DIN VDE 0472-401. 402,602,303, 615 |
| Under Fire Condition Tests | DIN VDE 0472-803, 804 |
| Flame Retardant | VDE 0482-332-1-2,DIN EN 60332-1-2,IEC 60332-1 |
| Oil Resistant | HD/EN/IEC 60811-2-1.,DIN VDE0473-811-2-1 |

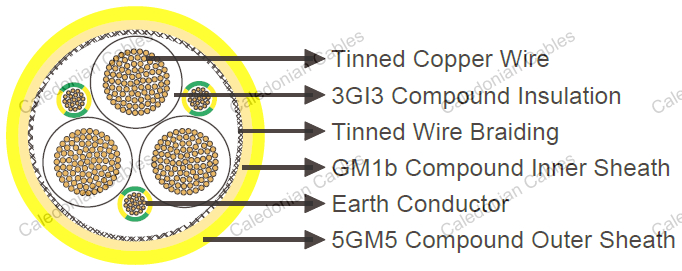

Conductor : Electrolytic, stranded, tinned copper wire DIN VDE 0295 Class 5.
Insulation : All cores are insulated with 3Gl3 compound.
Lay Up : Three power cores laid up with the protective earth conductors split into three in the outer interstices.
Screen : Concentric tinned copper wire braiding.
Inner Sheath : Special extruded elastomeric compound GMl1b.
Outer Sheath : Heavy-duty elastomer outer sheath 5GM5.
| Rated Voltage | 0.6 / 1 KV |
| Max.Permissible Operating Voltage AC | 0.7 / 1.2 KV |
| Max.Permissible Operating Voltage DC | 0.9 / 1.8 KV |
| AC Test Voltage | 3KV |
| Min Bending Radius Current Carrying | Acc. to VDE 0298-3 |
| Current Carrying Capacities | According to DIN VDE 0298-4 |
| Working Temperature | |
| Fixed | -40°C-+80°C |
| Mobile | -25°C-+80°C |
| Max.Tensile Load Of cable | 15N/mm² |
| max.torsion | 25°/m |
| Cross Section | Overall Diameter (min-max) | Appro. Weight |
|---|---|---|
| mm² | mm | kg/km |
| 3x16+3x2.5 | 24.4 -27.4 | 1200 |
| 3x25+3x4 | 28.2- 31.2 | 1700 |
| 3x35+3x16/3 | 30.5-33.5 | 2200 |
| 3x50+3x25/3 | 36.0-39.0 | 2800 |
| 3x70+3x35/3 | 41.2-44.2 | 3850 |
| 3x95+3x50/3 | 45.7-48.7 | 4650 |
| 3x120+3x70/3 | 48.7-52.7 | 5800 |
| 3x150+3x70/3 | 55.7-59.7 | 7150 |
| 3x185+3x95/3 | 60.4-64.4 | 8500 |
| 3x240+3x120/3 | 68.2-72.2 | 10100 |
