    Twisted Single Pair PFA Insulated

    Application

    These cables are used with thermocouples for temperature measurements.

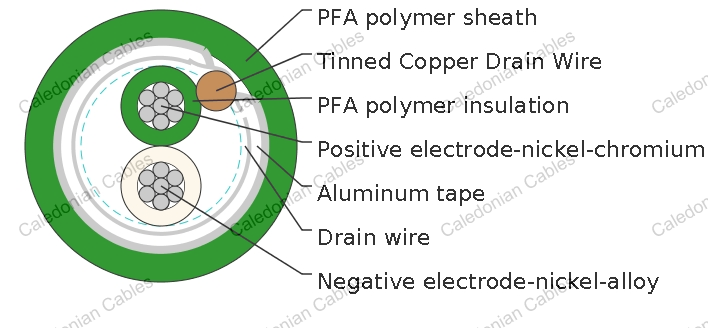

    Construction

    Conductor Solid or stranded. Material is according to thermocouple type.
    Insulation PFA polymer
    Screen Aluminum tape
    Drain wire Tinned copper
    Outer sheath PFA polymer
    Construction Round
    Color code According to IEC 60584-3

    K Type

    AWG(mm) Insulation Material Screen Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
    24 (0.51) PFA Polymer Aluminum tape PFA Polymer 260 2.7 13.4
    24 (7/0.2) PFA Polymer Aluminum tape PFA Polymer 260 2.9 13.8
    20 (0.81) PFA Polymer Aluminum tape PFA Polymer 260 3.7 30.0
    20 (7/0.32) PFA Polymer Aluminum tape PFA Polymer 260 3.8 30.3
