Twisted Single Pair FEP Insulated

These cables are used with thermocouples for temperature measurements.

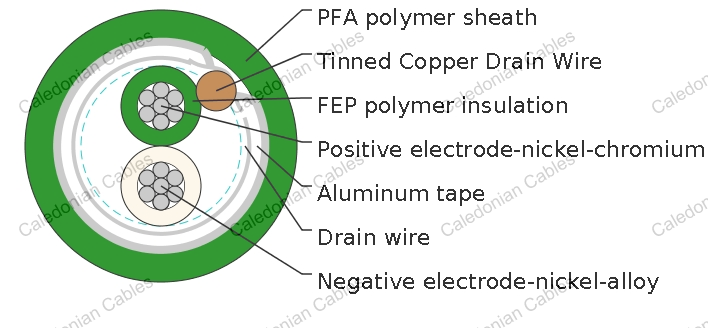

Conductor	Solid or stranded. Material is according to thermocouple type.
Insulation	FEP polymer
Screen	Aluminum tape
Drain wire	Tinned copper
Outer sheath	FEP polymer
Construction	Round
Color code	According to IEC 60584-3

AWG(mm)	Insulation Material	Screen Material	Sheath Material	Max. Temp. (°C)	Nominal O.D. (mm)	Weight (kg/km)
24 (0.51)	FEP Polymer	Aluminum tape	FEP Polymer	200	2.7	13.4
24 (7/0.2)	FEP Polymer	Aluminum tape	FEP Polymer	200	2.9	13.8
20 (0.81)	FEP Polymer	Aluminum tape	FEP Polymer	200	3.7	30.0
20 (7/0.32)	FEP Polymer	Aluminum tape	FEP Polymer	200	3.8	30.3
