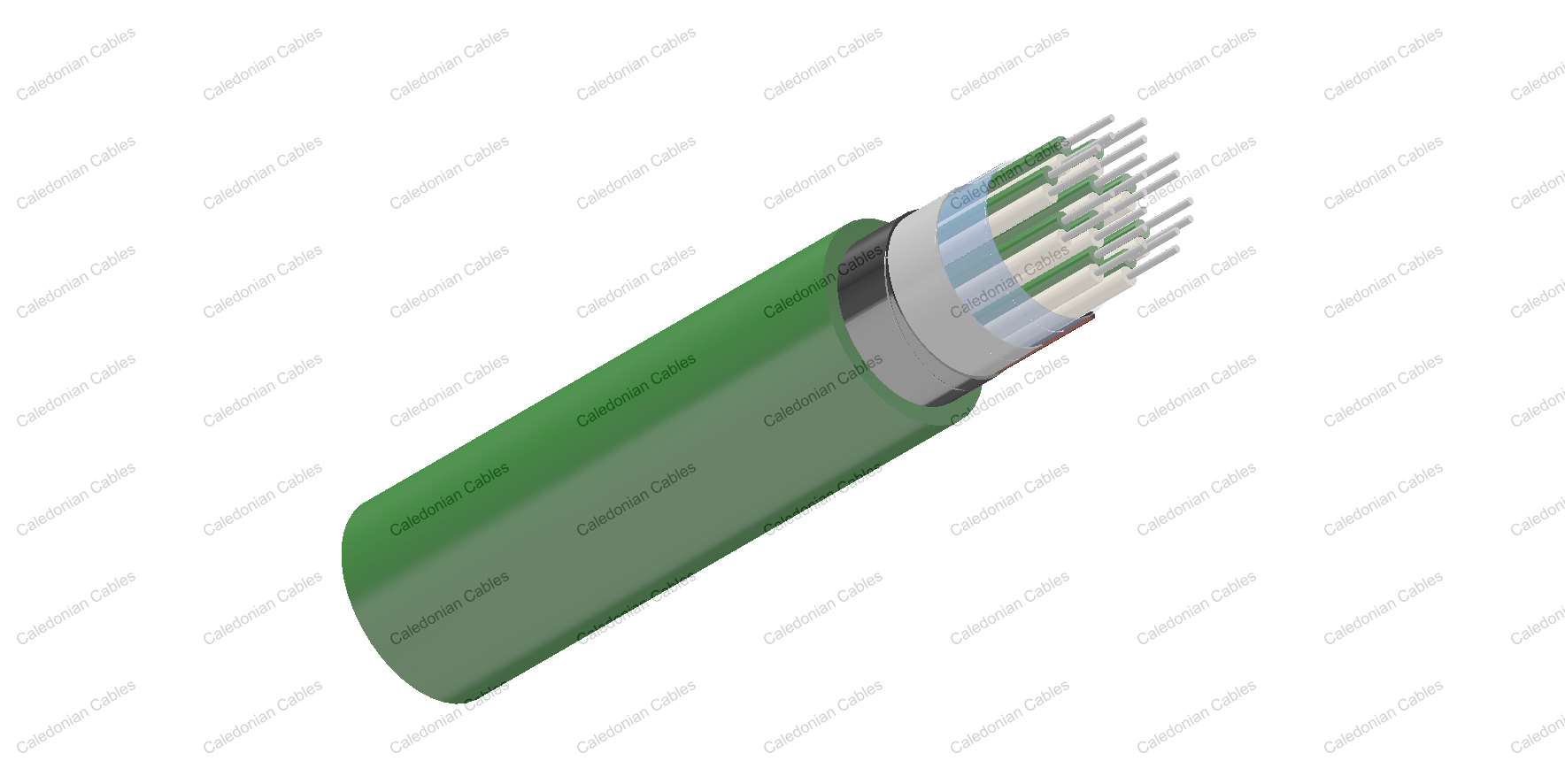

    Single pair/multipair Overall Screen

    Application

    These cables are used in thermocouple circuits, petrochemical plants, utilities and industrial plants.

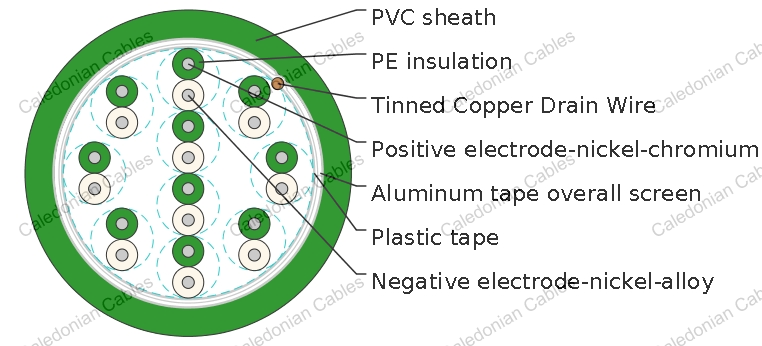

    Construction

    Conductor Solid
    Type applicable KX, EX, JX, TX, NX, KCA, KCB, RCA, RCB, SCA, RCB, BC
    Insulation PVC, PE, XLPE or LSZH thermoplastic material
    Wrapping At least 1 layer of plastic tape
    Overall screen 24 μm aluminium / PETP tape over 7-stranded tinned copper drain wire, 0.5
    mm2
    Outer sheath PVC or LSZH thermoplastic material
    Color code According to IEC 60584-3
    Flame retardancy IEC 60332-1
    Flame propagation IEC 60332 cat. C
    Temperature range -30°C up to 70°C during operation. -5°C up to 50°C during installation.

    0.5 mm2

    Conductor Size (mm²) No. of Pairs Insulation Thickness (mm) Outer Sheath Thickness (mm) Nominal O.D. (mm) Weight (kg/km)
    0.5 1 0.4 1.0 5.6 42
    0.5 2 0.4 1.0 7.9 68
    0.5 4 0.4 1.0 9.0 106
    0.5 6 0.4 1.0 10.6 145
    0.5 8 0.4 1.0 11.3 181
    0.5 10 0.4 1.2 13.1 235
    0.5 12 0.4 1.2 13.7 269
    0.5 16 0.4 1.2 15.4 341
    0.5 20 0.4 1.2 16.8 412
    0.5 24 0.4 1.4 18.6 508

    0.8 mm2

    Conductor Size (mm²) No. of Pairs Insulation Thickness (mm) Outer Sheath Thickness (mm) Nominal O.D. (mm) Weight (kg/km)
    0.8 1 0.4 1.0 6.0 51
    0.8 2 0.4 1.0 8.6 86
    0.8 4 0.4 1.0 9.9 139
    0.8 6 0.4 1.0 11.7 194
    0.8 8 0.4 1.2 12.8 257
    0.8 10 0.4 1.2 14.4 316
    0.8 12 0.4 1.2 15.1 365
    0.8 16 0.4 1.2 17.0 468
    0.8 20 0.4 1.4 19.1 587
    0.8 24 0.4 1.4 20.6 697

    1.0 mm2

    Conductor Size (mm²) No. of Pairs Insulation Thickness (mm) Outer Sheath Thickness (mm) Nominal O.D. (mm) Weight (kg/km)
    1.0 1 0.4 1.0 6.3 57
    1.0 2 0.4 1.0 9.0 98
    1.0 4 0.4 1.0 10.3 161
    1.0 6 0.4 1.2 12.6 238
    1.0 8 0.4 1.2 13.4 300
    1.0 10 0.4 1.2 15.2 369
    1.0 12 0.4 1.2 15.8 428
    1.0 16 0.4 1.4 18.3 568
    1.0 20 0.4 1.4 20.0 690
    1.0 24 0.4 1.4 21.6 821

    1.3 mm2

    Conductor Size (mm²) No. of Pairs Insulation Thickness (mm) Outer Sheath Thickness (mm) Nominal O.D. (mm) Weight (kg/km)
    1.3 1 0.4 1.0 6.6 65
    1.3 2 0.4 1.0 10.2 115
    1.3 4 0.4 1.0 11.8 193
    1.3 6 0.4 1.2 14.5 286
    1.3 8 0.4 1.2 15.4 363
    1.3 10 0.4 1.2 17.5 448
    1.3 12 0.4 1.2 18.3 521
    1.3 16 0.4 1.4 21.1 692
    1.3 20 0.4 1.4 23.2 843
    1.3 24 0.4 1.6 25.6 1005

    1.5 mm2

    Conductor Size (mm²) No. of Pairs Insulation Thickness (mm) Outer Sheath Thickness (mm) Nominal O.D. (mm) Weight (kg/km)
    1.5 1 0.5 1.0 7.2 75
    1.5 2 0.5 1.0 11.3 134
    1.5 4 0.5 1.2 13.5 238
    1.5 6 0.5 1.2 16.2 336
    1.5 8 0.5 1.2 17.2 427
    1.5 10 0.5 1.4 20.0 546
    1.5 12 0.5 1.4 20.9 634
    1.5 16 0.5 1.4 23.6 817
    1.5 20 0.5 1.6 26.5 1021
    1.5 24 0.5 1.6 28.7 1216

    *The number here is just approx. weight. It changes according to the insulation material and the conductor used in different type of extension cable and compensating cable.
