These cables are used with thermocouples for temperature measurements.
| Conductor | Solid. Material is according to thermocouple type. |
|---|---|
| Insulation | Silica |
| Outer sheath | Silica |

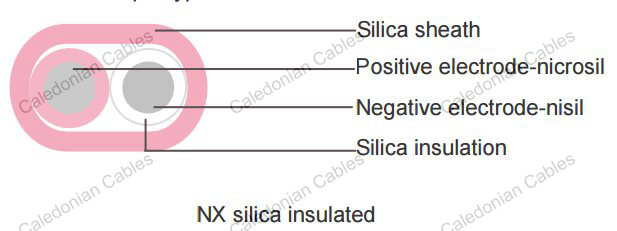

| Construction | Flat |
| Color code | According to IEC 60584-3 |
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| 24 (0.51) | silica | silica | 870 | 2.2 x 3.4 | 16.7 |
| 20 (0.81) | silica | silica | 980 | 2.7 x 3.9 | 20.0 |
| 14 (1.63) | silica | silica | 1090 | 3.6 x 5.0 | 53.4 |
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| 24 (0.51) | silica | silica | 370 | 2.2 x 3.4 | 16.7 |
| 20 (0.81) | silica | silica | 480 | 2.7 x 3.9 | 20.0 |
| 14 (1.63) | silica | silica | 590 | 3.6 x 5.0 | 53.4 |
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| 24 (0.51) | silica | silica | 980 | 2.2 x 3.4 | 10.0 |
| 20 (0.81) | silica | silica | 980 | 2.7 x 3.9 | 11.7 |
| 14 (1.63) | silica | silica | 1090 | 3.6 x 5.0 | 26.7 |
