Flat Single Pair High Temp. Glass Insulated

Application

These cables are used with thermocouples for temperature measurements.

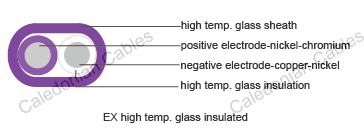

Construction

Conductor	Solid. Material is according to thermocouple type.
Insulation	High Temp. glass
Outer sheath	High Temp. glass
Construction	Flat
Color code	According to IEC 60584-3

K Type

AWG(mm)	Insulation Material	Sheath Material	Max. Temp. (°C)	Nominal O.D. (mm)	Weight (kg/km)
24 (0.51)	High Temp. Glass	High Temp. Glass	704	1.4 x 2.3	10.0
20 (0.81)	High Temp. Glass	High Temp. Glass	704	1.5 x 2.7	13.4

E Type

AWG(mm)	Insulation Material	Sheath Material	Max. Temp. (°C)	Nominal O.D. (mm)	Weight (kg/km)
24 (0.51)	High Temp. Glass	High Temp. Glass	704	1.4 x 2.3	10.0
20 (0.81)	High Temp. Glass	High Temp. Glass	704	1.5 x 2.7	13.4

J Type

AWG(mm)	Insulation Material	Sheath Material	Max. Temp. (°C)	Nominal O.D. (mm)	Weight (kg/km)
24 (0.51)	High Temp. Glass	High Temp. Glass	370	1.1 x 2.2	10.0
20 (0.81)	High Temp. Glass	High Temp. Glass	480	1.5 x 2.7	13.4

N Type

AWG(mm)	Insulation Material	Sheath Material	Max. Temp. (°C)	Nominal O.D. (mm)	Weight (kg/km)
24 (0.51)	High Temp. Glass	High Temp. Glass	704	1.4 x 2.3	3.4
20 (0.81)	High Temp. Glass	High Temp. Glass	704	1.5 x 2.7	6.7
