Flat Single Pair FEP Insulated

  • Thermocouple Cables

Application

These cables are used with thermocouples for temperature measurements.

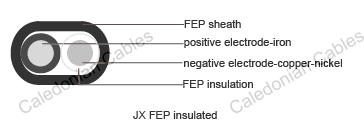

Construction

Conductor Solid. Material is according to thermocouple type.
Insulation FEP
Outer sheath FEP
Construction Flat
Color code According to IEC 60584-3

K Type

AWG(mm) Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
30(0.25) FEP FEP 200 1.2 x 1.8 4.5
28(0.32) FEP FEP 200 1.2 x 2.0 5.5
26(0.41) FEP FEP 200 1.3 x 2.1 6.5
24 (0.51) FEP FEP 200 1.4 x 2.4 10.0
20 (0.81) FEP FEP 200 1.7 x 3.0 16.7

E Type

AWG(mm) Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
30(0.25) FEP FEP 200 1.2 x 1.8 4.5
28(0.32) FEP FEP 200 1.2 x 2.0 5.5
26(0.41) FEP FEP 200 1.3 x 2.1 6.5
24 (0.51) FEP FEP 200 1.4 x 2.4 10.0
20 (0.81) FEP FEP 200 1.7 x 3.0 16.7

J Type

AWG(mm) Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
30(0.25) FEP FEP 200 1.2 x 1.8 4.5
28(0.32) FEP FEP 200 1.2 x 2.0 5.5
26(0.41) FEP FEP 200 1.3 x 2.1 6.5
24 (0.51) FEP FEP 200 1.4 x 2.4 10.0
20 (0.81) FEP FEP 200 1.7 x 3.0 16.7
