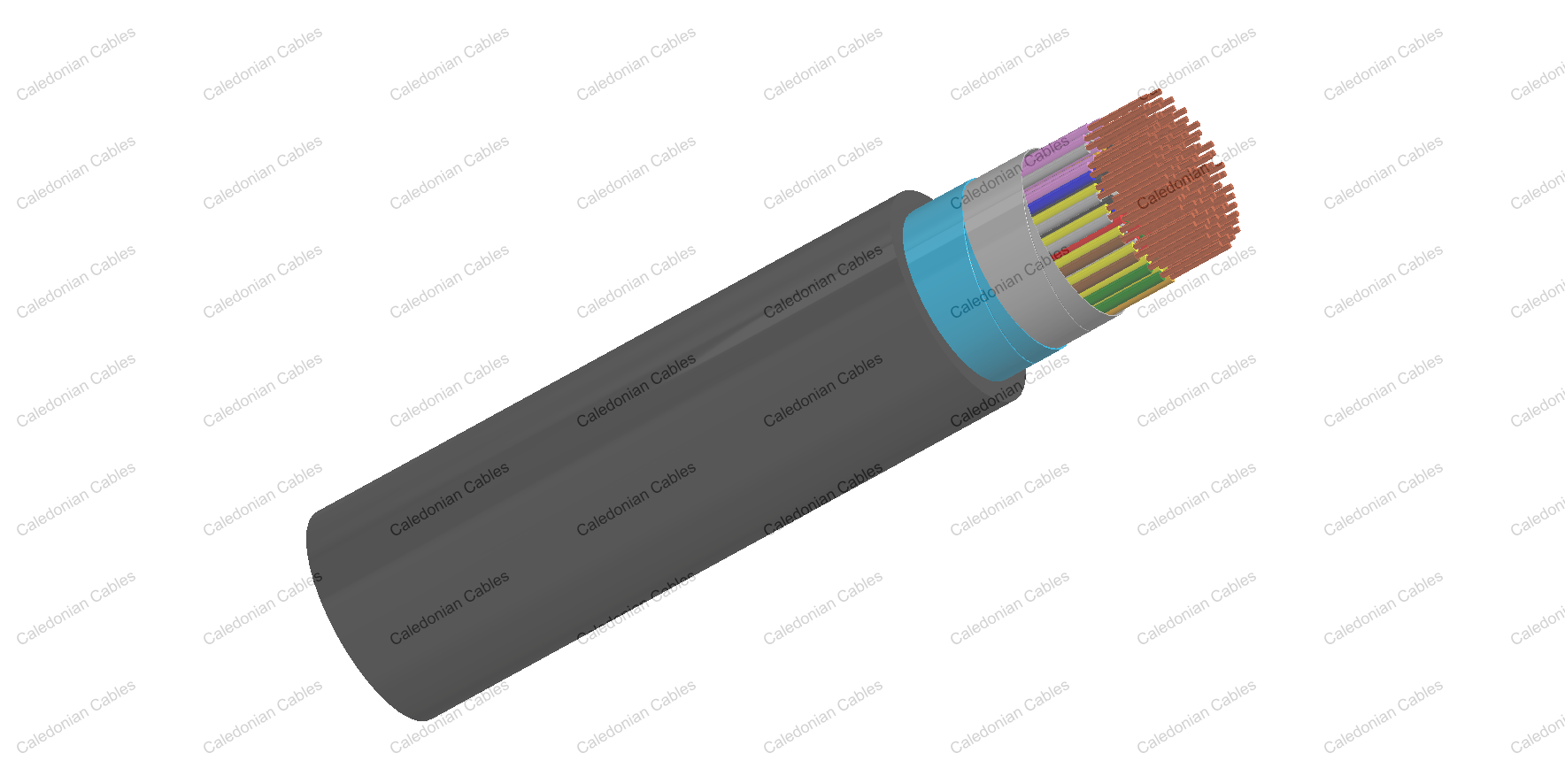

Solid PE Insulated & LAP Sheathed (ALPETH) Air Core Cables to ICEA S-85-625

Application

The cables are designed for use as subscriber distribution cables and as connection between central offices. The cables are suitable for installation in ducts, direct burial in the ground and also for aerial installation with integral suspension strand. An armoured option is offered for direct burial installations. A figure-8 self support option is offered for aerial installation.

Standards

ANSI/ICEA S-85-625

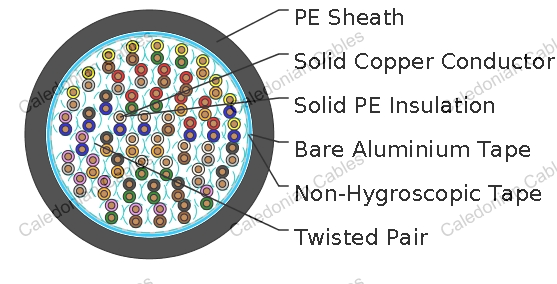

Construction

Conductors
Solid annealed bare copper, 0.4/0.5/0.63/0.9mm, as per ASTM B-3/class 1 of IEC 60228.
Insulation
Solid medium or high density polyethylene as per ASTM D 1248/IEC 60708.
Twisted Pairs
Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk.
Cabling Element
Twisted Pairs.
Cable Core Assembly
Cables of 25 pairs or less are assembled into cylindrical core. Cables larger than 25 pairs are assembled into units, which are then used to form the core. Units are identified by colour coded binders.
Core Wrapping
One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap. These tapes furnish thermal, mechanical as well as high dielectric protection between shielding and individual conductors.
Moisture Barrier
A layer of aluminium tape (0.2mm) coated with PE-copolymer is applied longitudinally with overlap over the cable core to provide 100% electrical shielding coverage and ensure a barrier against water vapor.
Sheath
Black low or medium density polyethylene as per ASTM D 1248/IEC 60708, being able to withstand exposure to sunlight, temperature variations, ground chemicals and other environmental contaminants.
Ripcord
Ripcord may be provided for slitting the sheath longitudinally to facilitate its removal.
Spare Pairs (optional)
Spare pairs may be provided for large pair cables.
Continuity Wire (optional)
One tinned copper drain wire may be longitudinally laid to ensure electrical continuity of the screen.

Optional construction

Armoured Cable
0.15mm thick corrugated steel tape armour is applied with an overlap over an optional inner polyethylene sheath. An outer polyethylene sheath is applied over the armour.
Self-Support Cable
A 7-strand galvanized steel strand is used as support wire. Black polyethylene sheath covers both core and support wire in a figure-8 construction.
Shield Options
There are 8 different shield options which can be offered in this standard
1) 8 mil bare aluminium tape
2) 8 mil coated aluminium tape
3) 5 mil copper tape
4) 5 mil copper clad alloy steel tape
5) 5 mil copper clad stainless steel tape
6) 6 mil & 7 mil 194 copper alloy tape
7) 6 mil bare steel tape
8) 6 mil coated steel tape

Abbreviations

LAPSP (CAPSP)
LAP sheath + steel tape armour + PE
LAP (ALPETH)
PE sheath
PAP
PE inner sheath + bare aluminium tape + PE sheath
APSP (STAPETH)
Bare aluminium tape + PE inner sheath + steel tape armour + PE outer sheath
CACSP
Copolymer coated aluminum tape + copolymer coated steel tape armour + PE outer sheath
LAPSP
Copolymer coated aluminum tape + PE inner sheath + steel tape armour + PE outer sheath
FIGURE 8 LAP
Copolymer coated aluminum tape + PE outer sheath + self supporting

Electrical Properties

Nominal Conductor Diameter mm 0.4 0.5 0.63 0.9
Conductor Gauge Size AWG 26 24 22 19
Maximum Average DC Resistance Ω/km / Ω/mile 140/225 87/140 55/88.6 27.0/43.4
Maximum Individual DC Resistance Ω/km / Ω/mile 144.2/232 89.5/144 56.5/91.0 28.0/45.0
Minimum Insulation Resistance @500V DC MΩ.km / MΩ.mile 1600/1000 1600/1000 1600/1000 1600/1000
Maximum Average Resistance Unbalance % 1.5 1.5 1.5 1.5
Maximum Individual Resistance Unbalance % 5 5 5 5
Average Mutual Capacitance nF/km / nF/kft 48.5-54.0
/14.8-16.5		 48.5-54.0
/14.8-16.5		 48.5-54.0
/14.8-16.5		 48.5-54.0
/14.8-16.5
Maximum Individual Mutual Capacitance nF/km / nF/kft 57/17.4 57/17.4 57/17.4 57/17.4
Maximum Individual Capacitance Unbalance pair-to-pair pF/km / pF/kft 145/44 145/44 145/44 145/44
Capacitance Unbalance RMS pair-to-pair pF/km / pF/kft 45/13.7 45/13.7 45/13.7 45/13.7
Maximum Individual Capacitance Unbalance pair-to-ground pF/km / pF/kft 2625/800 2625/800 2625/800 2625/800
Maximum Average Capacitance Unbalance pair-to-ground pF/km / pF/kft 574/175 574/175 574/175 574/175
Maximum Conductor Loop Resistance @20°C Ω/km / Ω/mile 300/482 192/309 114/183.6 60/96.4
Impedance @1KHz Ω 994 796 660 445
Impedance @100KHz Ω 147 134 125 122
Impedance @512KHz Ω 120 118 117 116
Impedance @1MHz Ω 117 115 114 113
Maximum Average Attenuation @0.8KHz dB/km / dB/kft 1.64/0.5 1.30/0.39 1.04/0.32 0.74/0.22
Maximum Average Attenuation @1KHz dB/km / dB/kft 1.68/0.51 1.35/0.41 1.08/0.33 0.76/0.23
Maximum Average Attenuation @3KHz dB/km / dB/kft 3.18/0.97 2.52/0.77 2.01/0.61 1.42/0.43
Maximum Average Attenuation @150KHz dB/km / dB/kft 11.4/3.47 8.3/2.53 6.2/1.89 4.4/1.34
Maximum Average Attenuation @772KHz dB/km / dB/kft 24.3/7.4 19.4/5.9 15.4/4.7 10.8/3.3
Maximum Average Attenuation @1000KHz dB/km / dB/kft 27.1/8.25 21.4/6.52 17.5/5.33 12.8/3.89
Dielectric Strength
Conductor to Conductor (3secs) V DC 2400 3000 4000 5000
Conductor to Screen (3secs) V DC 10000 10000 10000 10000
Minimum EL Far-end Cross-talk-Mean Power Sum
@150KHz dB/305m / dB/kft 61 63 63 65
@772KHz dB/305m / dB/kft 47 49 49 57
@1.6MHz dB/305m / dB/kft 41 42 43 44
@3.15MHz dB/305m / dB/kft 35 37 37 39
@6.3MHz dB/305m / dB/kft 29 31 31 33
Minimum Far-end Cross-talk-Worst Pair Power Sum
@150KHz dB/305m / dB/kft 57 57 57 59
@772KHz dB/305m / dB/kft 43 43 43 45
@1.6MHz dB/305m / dB/kft 37 37 37 39
@3.15MHz dB/305m / dB/kft 31 31 31 33
@6.3MHz dB/305m / dB/kft 25 25 25 27
Minimum Near-end Cross-talk-Mean Power Sum
@150KHz dB/305m / dB/kft 58 58 58 58
@772KHz dB/305m / dB/kft 47 47 47 47
@1.6MHz dB/305m / dB/kft 43 43 43 43
@3.15MHz dB/305m / dB/kft 38 38 38 38
@6.3MHz dB/305m / dB/kft 34 34 34 34
Minimum Near-end Cross-talk-Worst Pair Power Sum
@150KHz dB/305m / dB/kft 53 53 53 53
@772KHz dB/305m / dB/kft 42 42 42 42
@1.6MHz dB/305m / dB/kft 38 38 38 38
@3.15MHz dB/305m / dB/kft 33 33 33 33
@6.3MHz dB/305m / dB/kft 29 29 29 29
Nominal Insulation Thickness mm 0.15 0.2 0.26 0.3
Nominal Insulated Conductor Diameter mm 0.7 0.9 1.15 1.5

Mechanical and thermal properties

Temperature range during operation (fixed state)
30°C – +70°C
Temperature range during installation (mobile state)
20°C – +50°C
Minimum bending radius
10 x Overall Diameter (unarmoured cables)
15 x Overall Diameter (armoured cables)

Colour code

Standard colour code is per ICEA S-85-625 given in Colour Code Chart

Dimensions and weight

Solid PE Insulated and LAP Sheathed (Alpeth) Air Core Cable to ICEA S-85-625

Cable Code Number of Pairs Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
    mm/inch mm/inch kg/km / lbs/kft
0.4mm Conductor, 0.7mm Insulated Wire
TP625-2Y(A)2Y-3P04 3 1.5/0.059 8.0/0.315 55/37
TP625-2Y(A)2Y-5P04 5 1.5/0.059 8.5/0.335 60/40
TP625-2Y(A)2Y-6P04 6 1.5/0.059 9.0/0.354 65/44
TP625-2Y(A)2Y-10P04 10 1.5/0.059 9.5/0.374 80/54
TP625-2Y(A)2Y-12P04 12 1.5/0.059 10.0/0.394 90/60
TP625-2Y(A)2Y-15P04 15 1.5/0.059 10.5/0.413 100/67
TP625-2Y(A)2Y-20P04 20 1.5/0.059 11.0/0.433 120/81
TP625-2Y(A)2Y-25P04 25 1.5/0.059 12.0/0.472 140/94
TP625-2Y(A)2Y-30P04 30 1.5/0.059 12.5/0.492 155/104
TP625-2Y(A)2Y-40P04 40 1.5/0.059 13.5/0.531 190/128
TP625-2Y(A)2Y-50P04 50 1.5/0.059 14.5/0.571 220/148
TP625-2Y(A)2Y-75P04 75 1.5/0.059 16.5/0.650 300/202
TP625-2Y(A)2Y-100P04 100 1.5/0.059 18.0/0.709 380/255
TP625-2Y(A)2Y-150P04 150 1.5/0.059 21.0/0.827 540/363
TP625-2Y(A)2Y-200P04 200 1.5/0.059 24.0/0.945 690/464
TP625-2Y(A)2Y-300P04 300 1.5/0.059 27.5/1.083 1000/672
TP625-2Y(A)2Y-400P04 400 1.8/0.071 31.5/1.24 1300/874
TP625-2Y(A)2Y-600P04 600 2.0/0.079 37.5/1.476 1900/1277
TP625-2Y(A)2Y-800P04 800 2.3/0.091 43.0/1.693 2800/1882
TP625-2Y(A)2Y-900P04 900 2.3/0.091 46.0/1.811 2961/1990
TP625-2Y(A)2Y-1000P04 1000 2.5/0.098 48.0/1.890 3264/2193
TP625-2Y(A)2Y-1200P04 1200 2.8/0.110 52.0/2.047 3873/2603
TP625-2Y(A)2Y-1500P04 1500 2.8/0.110 58.0/2.283 4819/3238
TP625-2Y(A)2Y-1800P04 1800 3.2/0.126 63.0/2.480 5777/3882
TP625-2Y(A)2Y-2100P04 2100 3.2/0.126 68.0/2.677 6731/4523
TP625-2Y(A)2Y-2400P04 2400 3.5/0.138 72.0/2.834 7645/5137
TP625-2Y(A)2Y-2700P04 2700 3.5/0.138 76.0/2.992 8556/5749
TP625-2Y(A)2Y-3000P04 3000 3.5/0.138 80.0/3.150 9466/6361
0.5mm Conductor, 0.9mm Insulated Wire
TP625-2Y(A)2Y-3P05 3 1.5/0.059 8.5/0.335 60/40
TP625-2Y(A)2Y-5P05 5 1.5/0.059 9.5/0.374 70/47
TP625-2Y(A)2Y-6P05 6 1.5/0.059 10.0/0.394 75/50
TP625-2Y(A)2Y-10P05 10 1.5/0.059 11.0/0.433 100/67
TP625-2Y(A)2Y-12P05 12 1.5/0.059 11.5/0.453 120/81
TP625-2Y(A)2Y-15P05 15 1.5/0.059 12.0/0.472 130/87
TP625-2Y(A)2Y-20P05 20 1.5/0.059 13.0/0.512 160/108
TP625-2Y(A)2Y-25P05 25 1.5/0.059 14.0/0.551 190/128
TP625-2Y(A)2Y-30P05 30 1.5/0.059 14.5/0.571 220/148
TP625-2Y(A)2Y-40P05 40 1.5/0.059 16.0/0.630 270/181
TP625-2Y(A)2Y-50P05 50 1.5/0.059 17.0/0.669 320/215
TP625-2Y(A)2Y-70P05 70 1.5/0.059 19.0/0.748 406/273
TP625-2Y(A)2Y-75P05 75 1.5/0.059 19.5/0.768 440/296
TP625-2Y(A)2Y-100P05 100 1.5/0.059 22.5/0.886 570/383
TP625-2Y(A)2Y-150P05 150 1.5/0.059 26.0/1.024 810/544
TP625-2Y(A)2Y-200P05 200 1.8/0.071 29.5/1.157 1070/719
TP625-2Y(A)2Y-300P05 300 1.8/0.071 35.0/1.380 1530/1028
TP625-2Y(A)2Y-400P05 400 2.0/0.079 39.5/1.555 2010/1351
TP625-2Y(A)2Y-500P05 500 2.3/0.091 43.0/1.690 2577/1732
TP625-2Y(A)2Y-600P05 600 2.3/0.091 48.0/1.886 2980/2002
TP625-2Y(A)2Y-900P05 900 2.5/0.098 57.0/2.240 4415/2967
TP625-2Y(A)2Y-1000P05 1000 2.8/0.110 60.0/2.360 5015/3370
TP625-2Y(A)2Y-1200P05 1200 3.2/0.126 65.0/2.559 5959/4004
TP625-2Y(A)2Y-1500P05 1500 3.5/0.138 72.0/2.835 7414/4982
0.63mm Conductor, 1.15mm Insulated Wire
TP625-2Y(A)2Y-3P063 3 1.5/0.059 9.5/0.374 70/47
TP625-2Y(A)2Y-5P063 5 1.5/0.059 10.5/0.413 90/60
TP625-2Y(A)2Y-6P063 6 1.5/0.059 11.0/0.433 100/67
TP625-2Y(A)2Y-10P063 10 1.5/0.059 12.5/0.492 130/87
TP625-2Y(A)2Y-12P063 12 1.5/0.059 13.0/0.512 160/108
TP625-2Y(A)2Y-15P063 15 1.5/0.059 13.5/0.531 180/121
TP625-2Y(A)2Y-20P063 20 1.5/0.059 15.0/0.591 230/155
TP625-2Y(A)2Y-25P063 25 1.5/0.059 16.0/0.630 260/175
TP625-2Y(A)2Y-30P063 30 1.5/0.059 17.0/0.669 310/208
TP625-2Y(A)2Y-40P063 40 1.5/0.059 19.0/0.748 390/262
TP625-2Y(A)2Y-50P063 50 1.5/0.059 20.5/0.807 460/309
TP625-2Y(A)2Y-75P063 75 1.5/0.059 24.0/0.945 660/443
TP625-2Y(A)2Y-100P063 100 1.5/0.059 27.0/1.061 850/571
TP625-2Y(A)2Y-150P063 150 1.8/0.071 32.0/1.260 1240/833
TP625-2Y(A)2Y-200P063 200 2.0/0.079 36.5/1.437 1830/1230
TP625-2Y(A)2Y-300P063 300 2.0/0.079 43.5/1.712 2360/1586
TP625-2Y(A)2Y-400P063 400 2.3/0.091 50.0/1.968 3120/2097
TP625-2Y(A)2Y-600P063 600 2.5/0.098 59.5/2.340 4610/3098
0.9mm Conductor, 1.5mm Insulated Wire
TP625-2Y(A)2Y-3P09 3 1.5/0.059 11.0/0.433 100/67
TP625-2Y(A)2Y-5P09 5 1.5/0.059 12.5/0.492 140/94
TP625-2Y(A)2Y-6P09 6 1.5/0.059 13.0/0.512 160/108
TP625-2Y(A)2Y-10P09 10 1.5/0.059 15.0/0.591 220/148
TP625-2Y(A)2Y-12P09 12 1.5/0.059 16.0/0.630 260/175
TP625-2Y(A)2Y-15P09 15 1.5/0.059 17.5/0.689 310/208
TP625-2Y(A)2Y-20P09 20 1.5/0.059 19.0/0.748 390/262
TP625-2Y(A)2Y-25P09 25 1.5/0.059 20.5/0.807 460/309
TP625-2Y(A)2Y-30P09 30 1.5/0.059 22.5/0.885 570/383
TP625-2Y(A)2Y-40P09 40 1.5/0.059 25.5/1.000 720/484
TP625-2Y(A)2Y-50P09 50 1.5/0.059 27.5/1.080 850/571
TP625-2Y(A)2Y-75P09 75 1.8/0.071 33.0/1.300 1240/833
TP625-2Y(A)2Y-100P09 100 2.0/0.079 37.0/1.460 1620/1089
TP625-2Y(A)2Y-150P09 150 2.0/0.079 44.5/1.750 2380/1599
TP625-2Y(A)2Y-200P09 200 2.3/0.091 51.0/2.010 3130/2103
TP625-2Y(A)2Y-300P09 300 2.5/0.099 60.5/2.380 4700/3158
TP625-2Y(A)2Y-400P09 400 2.8/0.110 69.5/2.740 6210/4173

Fig 8 Solid PE Insulated & LAP Sheathed (Alpeth) Air Core Cable to ICEA S-85-625

Cable Code Number of Pairs Support Messenger Wire Diameter Nominal Sheath Thickness Nominal Overall Dimension Nominal Weight
    mm/inch mm/inch d x D x H mm/inch kg/km / lbs/kft
0.4mm Conductor, 0.7mm Insulated Wire
TP625-2Y(A)2Y-3P04-SS 3 7/2.03 / 7/0.08 1.5/0.059 9.1X8.0X20.0 / 0.36X0.315X0.787 245/165
TP625-2Y(A)2Y-5P04-SS 5 7/2.03 / 7/0.08 1.5/0.059 9.1X8.5X20.5 / 0.36X0.335X0.807 250/168
TP625-2Y(A)2Y-6P04-SS 6 7/2.03 / 7/0.08 1.5/0.059 9.1X9.0X21.0 / 0.36X0.354X0.827 260/175
TP625-2Y(A)2Y-10P04-SS 10 7/2.03 / 7/0.08 1.5/0.059 9.1X9.5X21.5 / 0.36X0.374X0.846 270/181
TP625-2Y(A)2Y-12P04-SS 12 7/2.03 / 7/0.08 1.5/0.059 9.1X10.0X22.0 / 0.36X0.394X0.866 280/188
TP625-2Y(A)2Y-15P04-SS 15 7/2.03 / 7/0.08 1.5/0.059 9.1X10.5X22.5 / 0.36X0.413X0.886 290/195
TP625-2Y(A)2Y-20P04-SS 20 7/2.03 / 7/0.08 1.5/0.059 9.1X11.0X23.5 / 0.36X0.433X0.925 310/208
TP625-2Y(A)2Y-25P04-SS 25 7/2.03 / 7/0.08 1.5/0.059 9.1X12.0X24.0 / 0.36X0.472X0.945 330/222
TP625-2Y(A)2Y-30P04-SS 30 7/2.03 / 7/0.08 1.5/0.059 9.1X12.5X24.5 / 0.36X0.492X0.965 350/235
TP625-2Y(A)2Y-40P04-SS 40 7/2.03 / 7/0.08 1.5/0.059 9.1X13.5X25.5 / 0.36X0.531X1.000 390/262
TP625-2Y(A)2Y-50P04-SS 50 7/2.03 / 7/0.08 1.5/0.059 9.1X14.5X26.5 / 0.36X0.571X1.040 410/276
TP625-2Y(A)2Y-75P04-SS 75 7/2.03 / 7/0.08 1.5/0.059 9.1X16.5X28.5 / 0.36X0.650X1.120 490/329
TP625-2Y(A)2Y-100P04-SS 100 7/2.03 / 7/0.08 1.5/0.059 9.1X18.0X30.0 / 0.36X0.709X1.180 570/383
TP625-2Y(A)2Y-150P04-SS 150 7/2.03 / 7/0.08 1.5/0.059 9.1X21.0X33.0 / 0.36X0.827X1.300 730/491
TP625-2Y(A)2Y-200P04-SS 200 7/2.03 / 7/0.08 1.5/0.059 9.1X23.5X36.0 / 0.36X0.925X1.420 880/591
TP625-2Y(A)2Y-300P04-SS 300 7/2.03 / 7/0.08 1.5/0.059 9.1X27.5X39.5 / 0.36X1.080X1.560 1220/820
TP625-2Y(A)2Y-400P04-SS 400 7/2.03 / 7/0.08 1.5/0.059 9.7X31.5X44.0 / 0.382X1.240X1.73 1490/1001
0.5mm Conductor, 0.9mm Insulated Wire
TP625-2Y(A)2Y-3P05-SS 3 7/2.03 / 7/0.08 1.5/0.059 9.1X8.5X20.5 / 0.36X0.335X0.807 250/168
TP625-2Y(A)2Y-5P05-SS 5 7/2.03 / 7/0.08 1.5/0.059 9.1X9.5X21.5 / 0.36X0.374X0.846 260/175
TP625-2Y(A)2Y-6P05-SS 6 7/2.03 / 7/0.08 1.5/0.059 9.1X9.5X22.0 / 0.36X0.374X0.866 265/178
TP625-2Y(A)2Y-10P05-SS 10 7/2.03 / 7/0.08 1.5/0.059 9.1X11.0X23.0 / 0.36X0.433X0.906 290/195
TP625-2Y(A)2Y-12P05-SS 12 7/2.03 / 7/0.08 1.5/0.059 9.1X11.5X23.5 / 0.36X0.453X0.925 310/208
TP625-2Y(A)2Y-15P05-SS 15 7/2.03 / 7/0.08 1.5/0.059 9.1X12.0X24.0 / 0.36X0.472X0.945 330/222
TP625-2Y(A)2Y-20P05-SS 20 7/2.03 / 7/0.08 1.5/0.059 9.1X13.0X25.0 / 0.36X0.512X0.984 350/235
TP625-2Y(A)2Y-25P05-SS 25 7/2.03 / 7/0.08 1.5/0.059 9.1X14.0X26.0 / 0.36X0.551X1.024 380/255
TP625-2Y(A)2Y-30P05-SS 30 7/2.03 / 7/0.08 1.5/0.059 9.1X14.5X26.5 / 0.36X0.571X1.040 420/282
TP625-2Y(A)2Y-40P05-SS 40 7/2.03 / 7/0.08 1.5/0.059 9.1X16.0X28.0 / 0.36X0.630X1.100 470/316
TP625-2Y(A)2Y-50P05-SS 50 7/2.03 / 7/0.08 1.5/0.059 9.1X17.0X29.0 / 0.36X0.669X1.140 510/343
TP625-2Y(A)2Y-75P05-SS 75 7/2.03 / 7/0.08 1.5/0.059 9.1X19.5X31.5 / 0.36X0.768X1.240 630/423
TP625-2Y(A)2Y-100P05-SS 100 7/2.03 / 7/0.08 1.5/0.059 9.1X22.5X34.5 / 0.36X0.886X1.360 760/511
TP625-2Y(A)2Y-150P05-SS 150 7/2.03 / 7/0.08 1.5/0.059 9.1X26.0X38.0 / 0.36X1.020X1.500 1000/672
TP625-2Y(A)2Y-200P05-SS 200 7/2.03 / 7/0.08 1.8/0.071 9.7X29.5X42.5 / 0.382X1.160X1.67 1260/847
TP625-2Y(A)2Y-300P05-SS 300 7/2.03 / 7/0.08 1.8/0.071 9.7X34.5X47.5 / 0.382X1.360X1.87 1720/1156
0.63mm Conductor, 1.15mm Insulated Wire
TP625-2Y(A)2Y-3P063-SS 3 7/2.03 / 7/0.08 1.5/0.059 9.1X9.5X21.5 / 0.36X0.374X0.846 260/175
TP625-2Y(A)2Y-5P063-SS 5 7/2.03 / 7/0.08 1.5/0.059 9.1X10.5X22.5 / 0.36X0.413X0.886 280/188
TP625-2Y(A)2Y-6P063-SS 6 7/2.03 / 7/0.08 1.5/0.059 9.1X11.0X23.0 / 0.36X0.433X0.906 290/195
TP625-2Y(A)2Y-10P063-SS 10 7/2.03 / 7/0.08 1.5/0.059 9.1X12.5X24.5 / 0.36X0.492X0.965 320/215
TP625-2Y(A)2Y-12P063-SS 12 7/2.03 / 7/0.08 1.5/0.059 9.1X13.0X25.0 / 0.36X0.512X0.984 350/235
TP625-2Y(A)2Y-15P063-SS 15 7/2.03 / 7/0.08 1.5/0.059 9.1X13.5X26.0 / 0.36X0.531X1.024 380/255
TP625-2Y(A)2Y-20P063-SS 20 7/2.03 / 7/0.08 1.5/0.059 9.1X15.0X27.0 / 0.36X0.591X1.060 420/282
TP625-2Y(A)2Y-25P063-SS 25 7/2.03 / 7/0.08 1.5/0.059 9.1X16.0X28.0 / 0.36X0.630X1.100 450/302
TP625-2Y(A)2Y-30P063-SS 30 7/2.03 / 7/0.08 1.5/0.059 9.1X17.0X29.0 / 0.36X0.669X1.140 510/343
TP625-2Y(A)2Y-40P063-SS 40 7/2.03 / 7/0.08 1.5/0.059 9.1X19.0X31.0 / 0.36X0.748X1.220 590/396
TP625-2Y(A)2Y-50P063-SS 50 7/2.03 / 7/0.08 1.5/0.059 9.1X20.5X32.5 / 0.36X0.807X1.280 650/437
TP625-2Y(A)2Y-75P063-SS 75 7/2.03 / 7/0.08 1.5/0.059 9.1X24.0X36.5 / 0.36X0.945X1.440 850/571
TP625-2Y(A)2Y-100P063-SS 100 7/2.03 / 7/0.08 1.5/0.059 9.1X27.0X39.0 / 0.36X1.060X1.540 1040/699
TP625-2Y(A)2Y-150P063-SS 150 7/2.03 / 7/0.08 1.8/0.071 9.7X32.0X45.0 / 0.382X1.26X1.770 1430/961
TP625-2Y(A)2Y-200P063-SS 200 7/2.03 / 7/0.08 2.0/0.079 10.1X36.5X49.5 / 0.398X1.44X1.95 1820/1223
TP625-2Y(A)2Y-300P063-SS 300 7/2.03 / 7/0.08 2.0/0.079 10.1X43.5X56.5 / 0.398X1.71X2.22 2570/1727
0.9mm Conductor, 1.5mm Insulated Wire
TP625-2Y(A)2Y-3P09-SS 3 7/2.03 / 7/0.08 1.5/0.059 9.1X11.0X23.0 / 0.36X0.433X0.906 290/195
TP625-2Y(A)2Y-5P09-SS 5 7/2.03 / 7/0.08 1.5/0.059 9.1X12.5X24.5 / 0.36X0.492X0.965 330/222
TP625-2Y(A)2Y-6P09-SS 6 7/2.03 / 7/0.08 1.5/0.059 9.1X13.0X25.0 / 0.36X0.512X0.984 350/235
TP625-2Y(A)2Y-10P09-SS 10 7/2.03 / 7/0.08 1.5/0.059 9.1X15.0X27.5 / 0.36X0.591X1.080 410/276
TP625-2Y(A)2Y-12P09-SS 12 7/2.03 / 7/0.08 1.5/0.059 9.1X16.0X28.0 / 0.36X0.630X1.100 450/302
TP625-2Y(A)2Y-15P09-SS 15 7/2.03 / 7/0.08 1.5/0.059 9.1X17.5X29.5 / 0.36X0.689X1.160 500/336
TP625-2Y(A)2Y-20P09-SS 20 7/2.03 / 7/0.08 1.5/0.059 9.1X19.0X31.0 / 0.36X0.748X1.220 580/390
TP625-2Y(A)2Y-25P09-SS 25 7/2.03 / 7/0.08 1.5/0.059 9.1X20.5X33.0 / 0.36X0.807X1.300 650/437
TP625-2Y(A)2Y-30P09-SS 30 7/2.03 / 7/0.08 1.5/0.059 9.1X22.5X35.0 / 0.36X0.886X1.380 770/517
TP625-2Y(A)2Y-40P09-SS 40 7/2.03 / 7/0.08 1.5/0.059 9.1X25.5X37.5 / 0.36X1.000X1.480 920/618
TP625-2Y(A)2Y-50P09-SS 50 7/2.03 / 7/0.08 1.5/0.059 9.1X27.5X39.5 / 0.36X1.080X1.560 1040/699
TP625-2Y(A)2Y-75P09-SS 75 7/2.03 / 7/0.08 1.8/0.071 9.7X33.0X45.5 / 0.382X1.30X1.800 1430/961
TP625-2Y(A)2Y-100P09-SS 100 7/2.03 / 7/0.08 2.0/0.079 10.1X37.0X50.5 / 0.398X1.46X1.99 1810/1216
TP625-2Y(A)2Y-150P09-SS 150 7/2.03 / 7/0.08 2.0/0.079 10.1X44.5X57.5 / 0.398X1.75X2.26 2570/1727
TP625-2Y(A)2Y-200P09-SS 200 7/2.03 / 7/0.08 2.3/0.091 10.7X51.0X64.5 / 0.421X2.01X2.54 3440/2312

Solid PE Insulated, Steel Wire Armoured & LAP Sheathed (Alpeth) Air Core Cable to ICEA S-85-625

Cable Code Number of Pairs Nominal Inner Sheath Thickness Nominal Diameter of Armour Wires Nominal Outer Sheath Thickness Nominal Overall Diameter Nominal Weight
    mm/inch mm/inch mm/inch mm/inch kg/km / lbs/kft
0.4mm Conductor, 0.7mm Insulated Wire
TP625-2Y2Y(SWA)(A)2Y-5P04 5 1.5/0.059 0.8/0.031 1.5/0.059 15.0/0.591 260/175
TP625-2Y2Y(SWA)(A)2Y-10P04 10 1.5/0.059 0.8/0.031 1.5/0.059 16.0/0.630 305/205
TP625-2Y2Y(SWA)(A)2Y-15P04 15 1.5/0.059 0.8/0.031 1.5/0.059 17.0/0.669 380/255
TP625-2Y2Y(SWA)(A)2Y-20P04 20 1.5/0.059 0.8/0.031 1.5/0.059 18.0/0.709 410/275
TP625-2Y2Y(SWA)(A)2Y-25P04 25 1.5/0.059 0.8/0.031 1.5/0.059 19.0/0.748 440/296
TP625-2Y2Y(SWA)(A)2Y-30P04 30 1.5/0.059 0.8/0.031 1.5/0.059 19.0/0.748 470/316
TP625-2Y2Y(SWA)(A)2Y-40P04 40 1.5/0.059 0.8/0.031 1.5/0.059 20.0/0.787 520/349
TP625-2Y2Y(SWA)(A)2Y-50P04 50 1.5/0.059 0.8/0.031 1.5/0.059 21.0/0.827 570/383
TP625-2Y2Y(SWA)(A)2Y-100P04 100 1.5/0.059 1.6/0.063 1.5/0.059 26.0/1.024 1100/739
0.5mm Conductor, 0.9mm Insulated Wire
TP625-2Y2Y(SWA)(A)2Y-5P05 5 1.5/0.059 0.8/0.031 1.5/0.059 16.0/0.630 290/195
TP625-2Y2Y(SWA)(A)2Y-10P05 10 1.5/0.059 0.8/0.031 1.5/0.059 18.0/0.709 380/255
TP625-2Y2Y(SWA)(A)2Y-15P05 15 1.5/0.059 0.8/0.031 1.5/0.059 19.0/0.748 440/296
TP625-2Y2Y(SWA)(A)2Y-20P05 20 1.5/0.059 0.8/0.031 1.5/0.059 20.0/0.787 480/323
TP625-2Y2Y(SWA)(A)2Y-25P05 25 1.5/0.059 0.8/0.031 1.5/0.059 21.0/0.827 550/370
TP625-2Y2Y(SWA)(A)2Y-30P05 30 1.5/0.059 0.8/0.031 1.5/0.059 21.0/0.827 570/383
TP625-2Y2Y(SWA)(A)2Y-40P05 40 1.5/0.059 1.6/0.063 1.5/0.059 24.0/0.945 930/625
TP625-2Y2Y(SWA)(A)2Y-50P05 50 1.5/0.059 1.6/0.063 1.5/0.059 25.0/0.984 1030/692
TP625-2Y2Y(SWA)(A)2Y-100P05 100 1.5/0.059 1.6/0.063 1.5/0.059 30.0/1.18 1500/1008
0.63mm Conductor, 1.15mm Insulated Wire
TP625-2Y2Y(SWA)(A)2Y-5P063 5 1.5/0.059 0.8/0.031 1.5/0.059 17.0/0.669 380/255
TP625-2Y2Y(SWA)(A)2Y-10P063 10 1.5/0.059 0.8/0.031 1.5/0.059 19.0/0.748 450/302
TP625-2Y2Y(SWA)(A)2Y-15P063 15 1.5/0.059 0.8/0.031 1.5/0.059 21.0/0.827 540/363
TP625-2Y2Y(SWA)(A)2Y-20P063 20 1.5/0.059 0.8/0.031 1.5/0.059 22.0/0.866 580/390
TP625-2Y2Y(SWA)(A)2Y-25P063 25 1.5/0.059 1.6/0.063 1.5/0.059 24.0/0.945 940/632
TP625-2Y2Y(SWA)(A)2Y-30P063 30 1.5/0.059 1.6/0.063 1.5/0.059 25.0/0.984 1000/672
TP625-2Y2Y(SWA)(A)2Y-40P063 40 1.5/0.059 1.6/0.063 1.5/0.059 27.0/1.06 1160/779
TP625-2Y2Y(SWA)(A)2Y-50P063 50 1.5/0.059 1.6/0.063 1.5/0.059 28.0/1.10 1300/874
TP625-2Y2Y(SWA)(A)2Y-100P063 100 1.5/0.059 2.0/0.079 1.5/0.059 36.0/1.42 2210/1485
0.9mm Conductor, 1.5mm Insulated Wire
TP625-2Y2Y(SWA)(A)2Y-5P09 5 1.5/0.059 0.8/0.031 1.5/0.059 19.0/0.748 440/296
TP625-2Y2Y(SWA)(A)2Y-10P09 10 1.5/0.059 0.8/0.031 1.5/0.059 22.0/0.866 600/403
TP625-2Y2Y(SWA)(A)2Y-15P09 15 1.5/0.059 1.6/0.063 1.5/0.059 25.0/0.984 1020/685
TP625-2Y2Y(SWA)(A)2Y-20P09 20 1.5/0.059 1.6/0.063 1.5/0.059 27.0/1.06 1160/779
TP625-2Y2Y(SWA)(A)2Y-25P09 25 1.5/0.059 1.6/0.063 1.5/0.059 28.0/1.10 1330/894
TP625-2Y2Y(SWA)(A)2Y-30P09 30 1.5/0.059 1.6/0.063 1.5/0.059 30.0/1.18 1520/1021
TP625-2Y2Y(SWA)(A)2Y-40P09 40 1.5/0.059 2.0/0.079 1.5/0.059 34.0/1.34 2010/1351
TP625-2Y2Y(SWA)(A)2Y-50P09 50 1.5/0.059 2.0/0.079 1.5/0.059 36.0/1.42 2250/1512
TP625-2Y2Y(SWA)(A)2Y-100P09 100 2.0/0.079 2.5/0.098 2.0/0.079 48.0/1.89 3960/2661

Solid PE Insulated & Double Sheathed Alpeth (PAP) Air Core Cable to ICEA S-85-625

Cable Code Number of Pairs Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
Inner Outer
    mm/inch mm/inch mm/inch kg/km / lbs/kft
0.4mm Conductor, 0.7mm Insulated Wire
TP625-2Y2Y(A)2Y-3P04 3 1.2/0.047 1.5/0.059 10.5/0.413 70/47
TP625-2Y2Y(A)2Y-5P04 5 1.2/0.047 1.5/0.059 11.0/0.433 85/57
TP625-2Y2Y(A)2Y-6P04 6 1.2/0.047 1.5/0.059 11.0/0.433 90/60
TP625-2Y2Y(A)2Y-10P04 10 1.2/0.047 1.5/0.059 12.0/0.472 110/74
TP625-2Y2Y(A)2Y-12P04 12 1.2/0.047 1.5/0.059 12.5/0.492 120/81
TP625-2Y2Y(A)2Y-15P04 15 1.2/0.047 1.5/0.059 13.0/0.512 140/94
TP625-2Y2Y(A)2Y-20P04 20 1.2/0.047 1.5/0.059 13.5/0.531 150/101
TP625-2Y2Y(A)2Y-25P04 25 1.2/0.047 1.5/0.059 14.5/0.571 175/118
TP625-2Y2Y(A)2Y-30P04 30 1.2/0.047 1.5/0.059 15.0/0.591 195/131
TP625-2Y2Y(A)2Y-40P04 40 1.2/0.047 1.5/0.059 16.0/0.630 235/158
TP625-2Y2Y(A)2Y-50P04 50 1.2/0.047 1.5/0.059 17.0/0.670 270/181
TP625-2Y2Y(A)2Y-75P04 75 1.2/0.047 1.5/0.059 19.0/0.748 360/241
TP625-2Y2Y(A)2Y-100P04 100 1.2/0.047 1.5/0.059 20.5/0.807 445/299
TP625-2Y2Y(A)2Y-150P04 150 1.2/0.047 1.5/0.059 23.0/0.906 610/410
TP625-2Y2Y(A)2Y-200P04 200 1.2/0.047 1.5/0.059 26.0/1.02 770/517
TP625-2Y2Y(A)2Y-300P04 300 1.2/0.047 1.5/0.059 30.0/1.18 1135/763
TP625-2Y2Y(A)2Y-400P04 400 1.6/0.063 1.8/0.071 34.5/1.36 1455/978
TP625-2Y2Y(A)2Y-600P04 600 1.6/0.063 2.0/0.079 40.5/1.59 2100/1411
TP625-2Y2Y(A)2Y-900P04 900 1.6/0.063 2.0/0.079 48.0/1.89 3070/2063
0.5mm Conductor, 0.9mm Insulated Wire
TP625-2Y2Y(A)2Y-3P05 3 1.2/0.047 1.5/0.059 11.0/0.433 80/54
TP625-2Y2Y(A)2Y-5P05 5 1.2/0.047 1.5/0.059 11.5/0.453 100/67
TP625-2Y2Y(A)2Y-6P05 6 1.2/0.047 1.5/0.059 12.0/0.472 110/74
TP625-2Y2Y(A)2Y-10P05 10 1.2/0.047 1.5/0.059 13.0/0.512 140/94
TP625-2Y2Y(A)2Y-12P05 12 1.2/0.047 1.5/0.059 13.5/0.531 150/101
TP625-2Y2Y(A)2Y-15P05 15 1.2/0.047 1.5/0.059 14.5/0.571 170/114
TP625-2Y2Y(A)2Y-20P05 20 1.2/0.047 1.5/0.059 15.5/0.610 200/134
TP625-2Y2Y(A)2Y-25P05 25 1.2/0.047 1.5/0.059 16.0/0.630 230/155
TP625-2Y2Y(A)2Y-30P05 30 1.2/0.047 1.5/0.059 17.0/0.670 265/178
TP625-2Y2Y(A)2Y-40P05 40 1.2/0.047 1.5/0.059 18.5/0.728 320/215
TP625-2Y2Y(A)2Y-50P05 50 1.2/0.047 1.5/0.059 19.5/0.768 370/249
TP625-2Y2Y(A)2Y-75P05 75 1.2/0.047 1.5/0.059 22.0/0.866 505/339
TP625-2Y2Y(A)2Y-100P05 100 1.2/0.047 1.5/0.059 25.0/0.984 640/430
TP625-2Y2Y(A)2Y-150P05 150 1.2/0.047 1.5/0.059 28.5/1.121 890/598
TP625-2Y2Y(A)2Y-200P05 200 1.6/0.063 1.8/0.071 33.0/1.30 1190/800
TP625-2Y2Y(A)2Y-300P05 300 1.6/0.063 1.8/0.071 38.0/1.50 1700/1142
TP625-2Y2Y(A)2Y-400P05 400 1.6/0.063 2.0/0.079 42.5/1.67 2200/1478
TP625-2Y2Y(A)2Y-600P05 600 1.8/0.079 2.3/0.091 51.5/2.03 3235/2174
TP625-2Y2Y(A)2Y-900P05 900 2.0/0.079 2.5/0.098 61.0/2.40 4705/3162
0.63mm Conductor, 1.15mm Insulated Wire
TP625-2Y2Y(A)2Y-3P063 3 1.2/0.047 1.5/0.059 11.5/0.453 95/64
TP625-2Y2Y(A)2Y-5P063 5 1.2/0.047 1.5/0.059 13.0/0.512 120/81
TP625-2Y2Y(A)2Y-6P063 6 1.2/0.047 1.5/0.059 13.0/0.512 135/91
TP625-2Y2Y(A)2Y-10P063 10 1.2/0.047 1.5/0.059 14.5/0.571 175/118
TP625-2Y2Y(A)2Y-12P063 12 1.2/0.047 1.5/0.059 15.5/0.610 195/131
TP625-2Y2Y(A)2Y-15P063 15 1.2/0.047 1.5/0.059 16.0/0.630 230/155
TP625-2Y2Y(A)2Y-20P063 20 1.2/0.047 1.5/0.059 17.5/0.689 270/181
TP625-2Y2Y(A)2Y-25P063 25 1.2/0.047 1.5/0.059 18.5/0.728 315/212
TP625-2Y2Y(A)2Y-30P063 30 1.2/0.047 1.5/0.059 19.5/0.768 365/245
TP625-2Y2Y(A)2Y-40P063 40 1.2/0.047 1.5/0.059 21.0/0.827 450/302
TP625-2Y2Y(A)2Y-50P063 50 1.2/0.047 1.5/0.059 22.5/0.886 530/356
TP625-2Y2Y(A)2Y-75P063 75 1.2/0.047 1.5/0.059 26.5/1.04 730/491
TP625-2Y2Y(A)2Y-100P063 100 1.2/0.047 1.5/0.059 29.5/1.16 930/625
TP625-2Y2Y(A)2Y-150P063 150 1.6/0.063 1.8/0.071 35.5/1.40 1370/921
TP625-2Y2Y(A)2Y-200P063 200 1.6/0.063 2.0/0.079 39.5/1.56 1775/1193
TP625-2Y2Y(A)2Y-300P063 300 1.6/0.063 2.0/0.079 47.0/1.85 2555/1717
TP625-2Y2Y(A)2Y-400P063 400 1.8/0.079 2.3/0.091 53.5/2.11 3375/2268
TP625-2Y2Y(A)2Y-600P063 600 2.0/0.079 2.5/0.098 63.5/2.50 4930/3313
0.9mm Conductor, 1.5mm Insulated Wire
TP625-2Y2Y(A)2Y-3P09 3 1.2/0.047 1.5/0.059 13.5/0.531 135/91
TP625-2Y2Y(A)2Y-5P09 5 1.2/0.047 1.5/0.059 15.0/0.591 175/118
TP625-2Y2Y(A)2Y-6P09 6 1.2/0.047 1.5/0.059 15.5/0.610 195/131
TP625-2Y2Y(A)2Y-10P09 10 1.2/0.047 1.5/0.059 17.5/0.689 265/178
TP625-2Y2Y(A)2Y-12P09 12 1.2/0.047 1.5/0.059 18.5/0.728 300/202
TP625-2Y2Y(A)2Y-15P09 15 1.2/0.047 1.5/0.059 19.5/0.768 370/249
TP625-2Y2Y(A)2Y-20P09 20 1.2/0.047 1.5/0.059 21.5/0.846 450/302
TP625-2Y2Y(A)2Y-25P09 25 1.2/0.047 1.5/0.059 23.0/0.906 525/353
TP625-2Y2Y(A)2Y-30P09 30 1.2/0.047 1.5/0.059 25.0/0.984 635/427
TP625-2Y2Y(A)2Y-40P09 40 1.2/0.047 1.5/0.059 27.5/1.08 800/538
TP625-2Y2Y(A)2Y-50P09 50 1.2/0.047 1.5/0.059 30.0/1.18 920/618
TP625-2Y2Y(A)2Y-75P09 75 1.6/0.063 1.8/0.071 36.0/1.42 1360/914
TP625-2Y2Y(A)2Y-100P09 100 1.6/0.063 2.0/0.079 40.5/1.59 1765/1186
TP625-2Y2Y(A)2Y-150P09 150 1.6/0.063 2.0/0.079 48.0/1.89 2545/1710
TP625-2Y2Y(A)2Y-200P09 200 1.8/0.071 2.3/0.091 54.5/2.15 3440/2312
TP625-2Y2Y(A)2Y-300P09 300 2.0/0.079 2.5/0.098 64.5/2.54 5010/3367
TP625-2Y2Y(A)2Y-400P09 400 2.0/0.079 2.8/0.110 73.5/2.90 6560/4408
Contact Us

Add the link of current page.

Clear

Submit

Instant Messaging

WhatsApp :

+852 6230 0392

Skype :

Caledonian Cables

live:1cb87739a29fb08c

Wechat :
The personal information you enter is only used to reply to your message, It will not be leaked or used for other purposes.
