These cables are designed for making connections to submersible pumps in drinking water. It can also be used in industrial water.

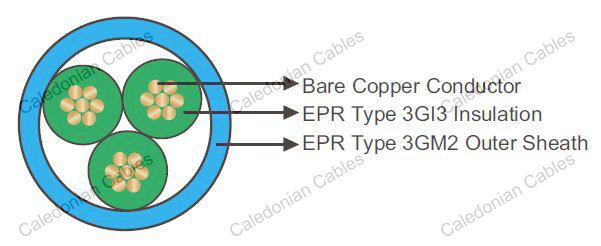

| Conductor | Bare copper stranded class 5 to VDE0295, IEC 60228 |
|---|---|
| Insulation | EPR type 3GI3 |
| Outer Sheath | EPR type 3GM2, coloured blue. |
| Test Voltage | 50Hz, 5 min: 2500V |
|---|---|
| Rated Voltage | 450/750V |
| Maximum admissible conductor Temperature in Operation |
90°C |
| Short Circuit Temperature | 250°C |
| Temperature Range | -40°C~+60°C |
| No. of Cores × Cross | Outer Diameter | Net Weight kg/km |
|
|---|---|---|---|
| Min. Value mm | Max. Value mm | ||
| 1 x 1.5 | 5.8 | 7.2 | 54 |
| 1 x 2.5 | 6.4 | 8.0 | 76 |
| 1 x 4 | 7.4 | 9.0 | 105 |
| 1 x 6 | 8.0 | 11.0 | 135 |
| 1 x 10 | 9.8 | 12.5 | 200 |
| 1 x 16 | 11.0 | 14.5 | 290 |
| 1 x 25 | 12.5 | 16.5 | 410 |
| 1 x 35 | 14.0 | 18.5 | 560 |
| 1 x 50 | 16.5 | 21.0 | 740 |
| 1 x 70 | 18.5 | 23.5 | 1000 |
| 1 x 95 | 21.0 | 26.0 | 1300 |
| 1 x 120 | 23.5 | 28.5 | 1650 |
| 1 x 150 | 26.0 | 31.5 | 2000 |
| 1 x 185 | 27.5 | 34.5 | 2500 |
| 1 x 240 | 30.5 | 38.0 | 3100 |
| 1 x 300 | 33.5 | 41.5 | 3700 |
| 2 x 1.5 | 9.0 | 11.5 | 130 |
| 2 x 2.5 | 10.5 | 13.5 | 190 |
| 2 x 4 | 12.0 | 15.0 | 260 |
| 2 x 6 | 13.5 | 18.5 | 350 |
| 2 x 10 | 18.5 | 24.0 | 550 |
| 2 x 16 | 21.0 | 27.5 | 900 |
| 2 x 25 | 25.0 | 31.5 | 1300 |
| 3 x 1.5 | 9.6 | 12.5 | 150 |
| 3 x 2.5 | 11.5 | 14.5 | 220 |
| 3 x 4 | 13.0 | 16.0 | 340 |
| 3 x 6 | 14.5 | 20.0 | 480 |
| 3 x 10 | 20.0 | 25.5 | 750 |
| 3 x 16 | 22.5 | 29.5 | 1100 |
| 3 x 25 | 26.5 | 34.0 | 1450 |
| 3 x 35 | 29.5 | 38.0 | 2100 |
| 3 x 50 | 34.5 | 44.0 | 2800 |
| 3 x 70 | 39.0 | 49.5 | 3800 |
| 3 x 95 | 44.0 | 54.6 | 4600 |
| 3 x 120 | 47.5 | 59.0 | 5400 |
| 4G1.5 | 10.5 | 13.5 | 190 |
| 4G2.5 | 12.5 | 15.5 | 280 |
| 4G4 | 14.5 | 18.0 | 390 |
| 4G6 | 16.5 | 22.0 | 520 |
| 4G10 | 22.5 | 24.5 | 950 |
| 4G16 | 26.5 | 28.5 | 1400 |
| 4G25 | 32.0 | 34.0 | 1950 |
| 4G35 | 33.0 | 42.5 | 2700 |
| 4G50 | 38.0 | 48.5 | 3600 |
| 4G70 | 43.0 | 54.5 | 4900 |
| 4G95 | 50.0 | 60.5 | 6200 |
| 4G120 | 53.0 | 65.5 | 7200 |
| 5G1.5 | 11.5 | 15.0 | 230 |
| 5G2.5 | 13.5 | 17.0 | 340 |
| 5G4 | 16.0 | 19.5 | 470 |
| 5G6 | 18.0 | 24.5 | 640 |
| 5G10 | 24.0 | 30.5 | 1150 |
| 5G16 | 27.0 | 35.5 | 1700 |
| 7G1.5 | 16.5 | 17.5 | 370 |
| 10G1.5 | 18.6 | 19.6 | 460 |
| 7G2.5 | 18.9 | 19.4 | 510 |
| 10G2.5 | 21.4 | 21.9 | 650 |
