400℉/204℃ EPDM/LEAD Flat Electrical Submersible Pump Cable

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

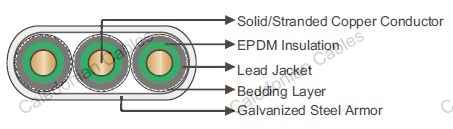

Conductor	Solid/stranded copper conductor.
Insulation	EPDM insulation.
Jacket	Lead jacket. Each insulated conductor should have a lead sheath extruded over the insulation.
Bedding Layer	Bedding tape or braid.
Armor	Galvanized steel.

Cable Type	Conductor Size		Conductor O.D.		Insulation Thickness		Overall O.D.		Weight
	AWG	mm^2	inches	mm	inches	mm	inches	mm	lbs/kft	kg/km
QYEQ-204-5kV-3G10S	-	10	0.14	3.556	0.075	1.9	1.48×0.52	37.5×13.2	1461	2175
QYEQ-204-5kV-3G6	6	13.3	0.162	4.115	0.075	1.9	1.57×0.55	39.8×13.9	1617	2406
QYEQ-204-5kV-3G16S	-	16	0.178	4.521	0.075	1.9	1.63×0.57	41.5×14.5	1736	2583
QYEQ-204-5kV-3G4	4	21.1	0.204	5.182	0.075	1.9	1.74×0.61	44.2×15.4	1941	2888
QYEQ-204-5kV-3G25S	-	25	0.222	5.639	0.075	1.9	1.81×0.63	46.1×16.0	2091	3111
QYEQ-204-5kV-3G2	2	33.6	0.258	6.553	0.075	1.9	1.96×0.68	49.9×17.3	2410	3587
QYEQ-204-5kV-3G1	1	42.4	0.289	7.341	0.075	1.9	2.09×0.72	53.1×18.4	2707	4029
QYEQ-204-5kV-3G1/0	1/0	53.5	0.368	9.347	0.075	1.9	2.42×0.83	61.4×21.2	3552	5285
QYEQ-204-5kV-3G2/0	2/0	67.4	0.414	10.516	0.075	1.9	2.61×0.90	66.3×22.8	4103	6105
