400℉/204℃ EPDM/EPDM Flat Electrical Submersible Pump Cable

Application

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Standard

IEEE Std. 1018
API RP 11S5
API RP 11S6

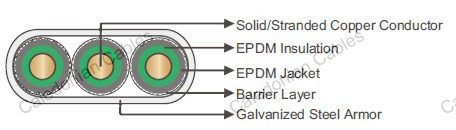

Construction

Conductor	Solid/stranded copper conductor.
Insulation	EPDM insulation.
Jacket	EPDM rubber. Each insulated conductor should be individually jacketed or three conductors laid parallel within a common encapsulated jacket.
Barrier	Barrier tape and braid, used for fluid protection and hoop strength.
Armor	Galvanized steel.

Dimension and Weight

3KV

Cable Type	Conductor Size		Conductor O.D.		Insulation Thickness		Overall O.D.		Weight
	AWG	mm^2	inches	mm	inches	mm	inches	mm	lbs/kft	kg/km
QYEE-204-3kV-3G10S	-	10	0.14	3.556	0.075	1.9	1.55×0.54	39.3×13.8	793	1180
QYEE-204-3kV-3G6	6	13.3	0.162	4.115	0.075	1.9	1.64×0.57	41.6×14.5	901	1341
QYEE-204-3kV-3G16S	-	16	0.178	4.521	0.075	1.9	1.70×0.59	43.3×15.1	985	1466
QYEE-204-3kV-3G4	4	21.1	0.204	5.182	0.075	1.9	1.81×0.63	46.0×16.0	1134	1688
QYEE-204-3kV-3G25S	-	25	0.222	5.639	0.075	1.9	1.89×0.66	47.9×16.6	1245	1853
QYEE-204-3kV-3G2	2	33.6	0.258	6.553	0.075	1.9	2.03×0.71	51.7×17.9	1487	2213
QYEE-204-3kV-3G1	1	42.4	0.289	7.341	0.075	1.9	2.16×0.75	54.9×19.0	1717	2555
QYEE-204-3kV-3G1/0	1/0	53.5	0.368	9.347	0.075	1.9	2.49×0.86	63.2×21.8	2390	3557
QYEE-204-3kV-3G2/0	2/0	67.4	0.414	10.516	0.075	1.9	2.68×0.92	68.1×23.4	2841	4229

5kV

Cable Type	Conductor Size		Conductor O.D.		Insulation Thickness		Overall O.D.		Weight
	AWG	mm^2	inches	mm	inches	mm	inches	mm	lbs/kft	kg/km
QYEE-204-5kV-3G10S	-	10	0.14	3.556	0.09	2.3	1.68×0.59	42.6×14.9	865	1287
QYEE-204-5kV-3G6	6	13.3	0.162	4.115	0.09	2.3	1.77×0.62	44.9×15.6	975	1451
QYEE-204-5kV-3G16S	-	16	0.178	4.521	0.09	2.3	1.83×0.64	46.6×16.2	1061	1579
QYEE-204-5kV-3G4	4	21.1	0.204	5.182	0.09	2.3	1.94×0.67	49.3×17.1	1212	1804
QYEE-204-5kV-3G25S	-	25	0.222	5.639	0.09	2.3	2.02×0.70	51.2×17.7	1325	1971
QYEE-204-5kV-3G2	2	33.6	0.258	6.553	0.09	2.3	2.17×0.75	55.0×19.0	1570	2336
QYEE-204-5kV-3G1	1	42.4	0.289	7.341	0.09	2.3	2.29×0.79	58.3×20.1	1802	2682
QYEE-204-5kV-3G1/0	1/0	53.5	0.368	9.347	0.09	2.3	2.62×0.90	66.6×22.9	2483	3696
QYEE-204-5kV-3G2/0	2/0	67.4	0.414	10.516	0.09	2.3	2.81×0.96	71.4×24.5	2939	4374

Other conductor size can be offered upon request.
