284℉/140℃ EPDM/NBR Round Electrical Submersible Pump Cable

Application

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Standard

IEEE Std. 1018
API RP 11S5
API RP 11S6

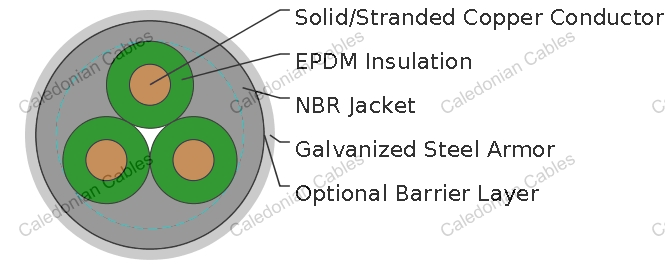

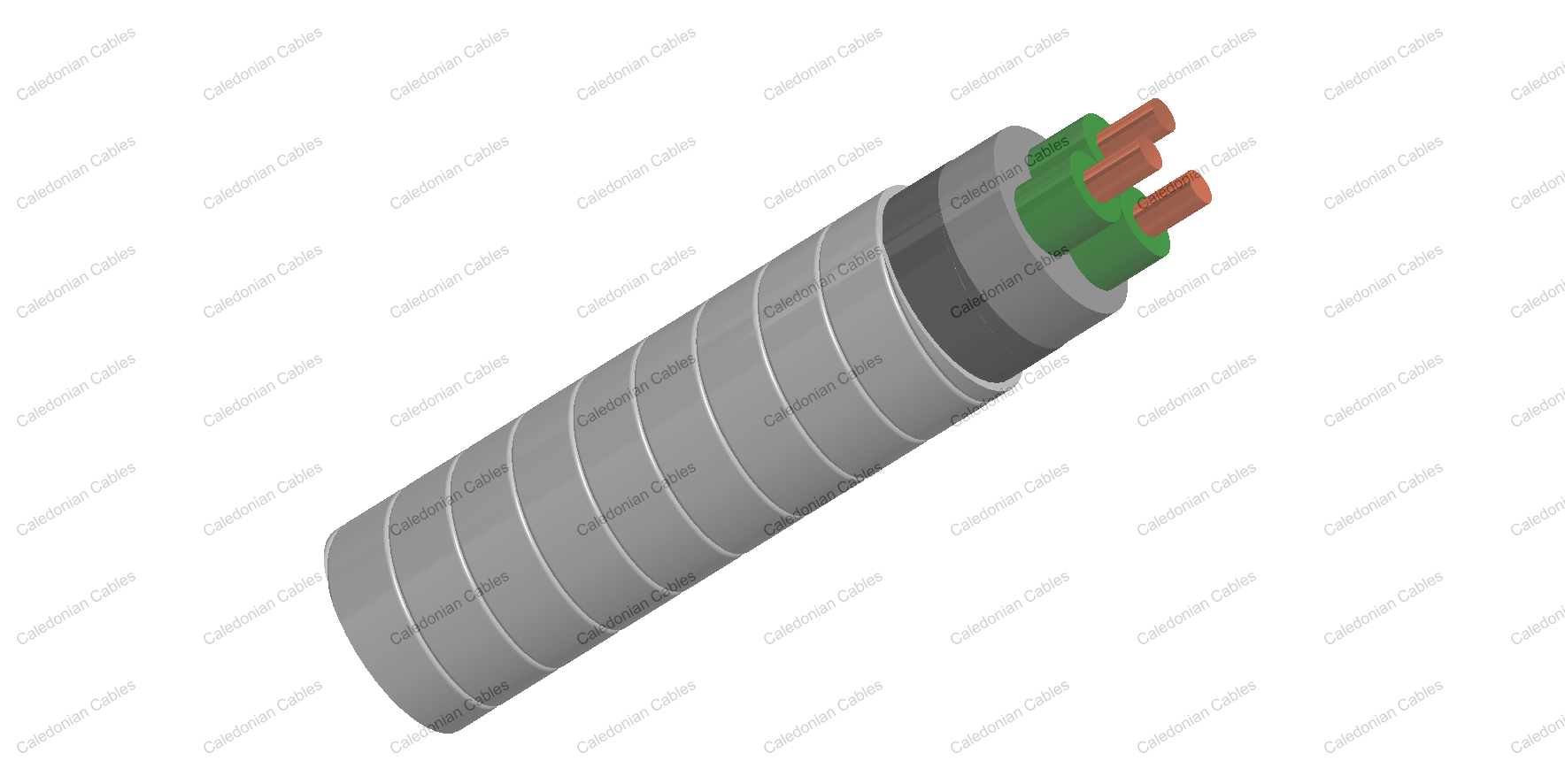

Construction

Conductor	Solid/stranded copper conductor.
Insulation	EPDM insulation.
Optional Barrier:	Tape, braid, tape and braid, or extruded barrier, used for fluid protection and hoop strength.
Jacket	Oil-resistant nitrile rubber.
Armor	Galvanized steel.

Dimension and Weight

3kV

Cable Type	Conductor Size		Conductor O.D.		Insulation Thickness		Overall O.D.		Weight
	AWG	mm^2	inches	mm	inches	mm	inches	mm	lbs/kft	kg/km
QYENY-140-3kV-3G10S	-	10	0.14	3.556	0.075	1.9	1.03	26.1	661	983
QYENY-140-3kV-3G6	6	13.3	0.162	4.115	0.075	1.9	1.09	27.8	763	1135
QYENY-140-3kV-3G16S	-	16	0.178	4.521	0.075	1.9	1.14	29.0	843	1254
QYENY-140-3kV-3G4	4	21.1	0.204	5.182	0.075	1.9	1.22	31.0	985	1465
QYENY-140-3kV-3G25S	-	25	0.222	5.639	0.075	1.9	1.27	32.3	1091	1623
QYENY-140-3kV-3G2	2	33.6	0.258	6.553	0.075	1.9	1.38	35.1	1323	1969
QYENY-140-3kV-3G1	1	42.4	0.289	7.341	0.075	1.9	1.47	37.4	1544	2298
QYENY-140-3kV-3G1/0	1/0	53.5	0.368	9.347	0.075	1.9	1.71	43.4	2197	3269
QYENY-140-3kV-3G2/0	2/0	67.4	0.414	10.516	0.075	1.9	1.84	46.8	2635	3922

5kV

Cable Type	Conductor Size		Conductor O.D.		Insulation Thickness		Overall O.D.		Weight
	AWG	mm^2	inches	mm	inches	mm	inches	mm	lbs/kft	kg/km
QYENY-140-5kV-3G10S	-	10	0.14	3.556	0.09	2.3	1.12	28.5	724	1077
QYENY-140-5kV-3G6	6	13.3	0.162	4.115	0.09	2.3	1.19	30.2	828	1232
QYENY-140-5kV-3G16S	-	16	0.178	4.521	0.09	2.3	1.24	31.4	910	1354
QYENY-140-5kV-3G4	4	21.1	0.204	5.182	0.09	2.3	1.31	33.4	1054	1568
QYENY-140-5kV-3G25S	-	25	0.222	5.639	0.09	2.3	1.37	34.7	1162	1729
QYENY-140-5kV-3G2	2	33.6	0.258	6.553	0.09	2.3	1.47	37.4	1397	2079
QYENY-140-5kV-3G1	1	42.4	0.289	7.341	0.09	2.3	1.57	39.8	1622	2413
QYENY-140-5kV-3G1/0	1/0	53.5	0.368	9.347	0.09	2.3	1.80	45.7	2281	3395
QYENY-140-5kV-3G2/0	2/0	67.4	0.414	10.516	0.09	2.3	1.94	49.2	2725	4055
