250℉/121℃ EPDM/NBR Flat Electrical Submersible Pump Cable

These cables are designed for installed down well in the oil industry.

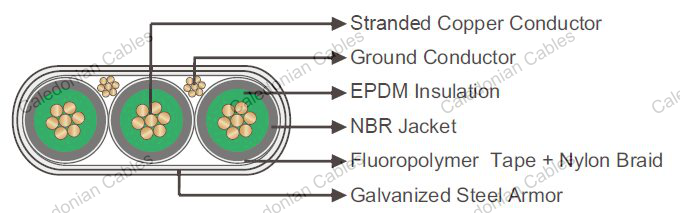

Conductor	Stranded bare copper (7/3.503) with water & gas blocking compound adhesive in the outer layer.
Insulation	EPDM insulation.
Jacket	NBR jacket.
Tape	Fluoropolymer tape.
Braid	Nylon braid.
Ground Conductor	Stranded bare copper (7/1.4mm), 2x7AWG (4AWG).
Armor	Interlocked galvanized steel.

Cable Type	Conductor Size		Conductor O.D.		Insulation Thickness		Overall O.D.		Weight
	AWG	mm^2	inches	mm	inches	mm	inches	mm	lbs/kft	kg/km
QYEN-121-5kV-3G2/0	2/0	67.4	0.41	10.47	0.09	2.3	2.40x0.85	61.0 x 21.7	2734	4070

Other conductor size can be offered upon request.
