These outboard installation cables for naval vessels are transversally water blocked and longitudinally completely water blocked (all wires are not water blocked), designed according to VG 95218 part 29.

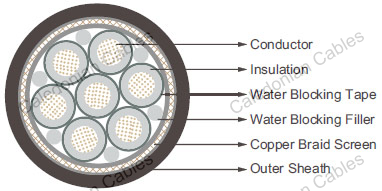

| Conductor | Copper conductor, fine stranded. |
|---|---|
| Insulation | Special elastomer. |
| Separator | Water-blocking tapes. |
| Fillers | Water-blocking fillers |
| Screen | Copper braid with tinned wires. |
| Sheath | Cross linked halogen free flame retardant compound. |
| Number of Cores × Nominal Cross Section Area | Maximum Transfer impedance |
|---|---|
| No. × mm^2 | m Ω /m |
| 27×2×0.38 | 30 |
| 4×0.5 | 30 |
| 2×0.75 | 30 |
| 3×0.75 | 30 |
| 4×2×0.75 | 30 |
| 8×2×0.75 | 30 |
| 10×2×0.75 | 30 |
| 37×0.75 | 30 |
| 4×1.0 | 30 |
| 4×6+2×1.0 | 30 |
| 2×1.5 | 30 |
| 3×1.5 | 30 |
| 3G1.5 | 30 |
| 5×1.5 | 30 |
| 5G1.5 | 30 |
| 7x1.5 | 30 |
| 12×1.5 | 30 |
| 24×1.5 | 30 |
| 19×6 | 30 |
| 2×6.0 | 30 |
| Number of Cores × Nominal Cross Section Area | Maximum Transfer impedance |
|---|---|
| No. × mm^2 | m Ω /m |
| 1×35 | 30 |
| 1×120 | 30 |
| 1×185 | 30 |
| 1×240 | 30 |
| Number of Cores × Nominal Cross Section Area | Maximum Single Core Diameter | Minimum Sheath Thickness | Minimum Overall Diameter | Maximum Overall Diameter | Maximum Weight |
|---|---|---|---|---|---|
| No. × mm^2 | mm | mm | mm | mm | kg/km |
| 27×2×0.38 | 1.35 | 2.0 | 22.0 | 22.6 | 630 |
| 4×0.5 | 1.5 | 1.5 | 9.5 | 9.7 | 140 |
| 2×0.75 | 1.9 | 1.3 | 7.8 | 8.2 | 96 |
| 3×0.75 | 1.9 | 1.3 | 8 | 8.4 | 110 |
| 4×2×0.75 | 1.9 | 1.8 | 14.3 | 14.9 | 275 |
| 8×2×0.75 | 1.9 | 2.0 | 16.9 | 17.5 | 420 |
| 10×2×0.75 | 1.9 | 2.0 | 21.2 | 21.8 | 600 |
| 37×0.75 | 1.9 | 2.0 | 18.3 | 18.9 | 650 |
| 4×1.0 | 2.2 | 2.0 | 10.0 | 10.6 | 175 |
| 4×6+2×1.0 | 5.2/2.2 | 2.0 | 17.6 | 18.2 | 785 |
| 2×1.5 | 2.4 | 1.5 | 9.4 | 10.0 | 150 |
| 3×1.5 | 2.4 | 1.5 | 9.7 | 10.3 | 160 |
| 3G1.5 | 2.4 | 1.5 | 9.7 | 10.3 | 160 |
| 5×1.5 | 2.4 | 1.5 | 11.3 | 11.8 | 230 |
| 5G1.5 | 2.4 | 1.5 | 11.3 | 11.8 | 230 |
| 7x1.5 | 2.4 | 1.5 | 11.6 | 12.2 | 250 |
| 12×1.5 | 2.4 | 2.0 | 15.1 | 15.7 | 425 |
| 24×1.5 | 2.4 | 2.5 | 21.5 | 22.1 | 835 |
| 19×6 | 5.2 | 2.5 | 32.5 | 33 | 1800 |
| 2×6.0 | 5.2 | 2.0 | 16.8 | 17.4 | 410 |
| Number of cores × Nominal Cross Section Area | Maximum Single Core Diameter | Minimum Sheath Thickness | Minimum Overall Diameter | Maximum Overall Diameter | Maximum Weight |
|---|---|---|---|---|---|
| No. × mm^2 | mm | mm | mm | mm | kg/km |
| 1×35 | 11.3 | 2.5 | 17.0 | 17.5 | 680 |
| 1×120 | 21.6 | 2.5 | 28.7 | 29.3 | 2000 |
| 1×185 | 25.3 | 2.5 | 31.9 | 32.5 | 2900 |
| 1×240 | 29.8 | 2.5 | 35.3 | 35.9 | 4050 |
