These TPE-E/PUR screened spiral cables are used in lighting industry, machine industry, power tools, construction industry, consumer electronics, mobile equipment etc. these cables are screened against high frequency interference. Suitable for use in the control cable sectors requiring the use of screened semi-conductors.

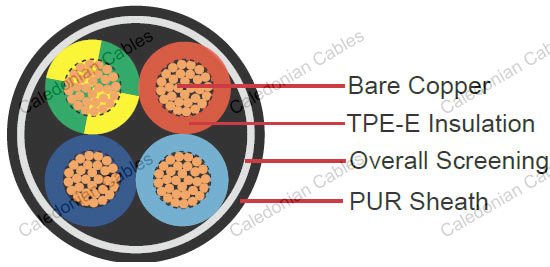

| Conductor | Stranded bare copper conductors according to DIN VDE 0295 and IEC 60228 cl. 5 |
| Cores Twisted | |
| Overall Screening | |
| Core Insulation | TPE-E core insulation |
| Core Color Code | According to VDE0293 or DIN 47100 |
| Sheath | PUR outer sheath |
| Sheath Color | Black (Other colors and types are available on request) |
| Temperature Rating | -25°C to +70°C |
| Voltage Rating | 300V (up to 0.14 mm²) |
| 500V (up to 0.25 mm²) | |
| Elasticity Ratio | TPE/PUR black approx 1 : 4 |
| Test Voltage | 2000 V |
| AWG | Cross-section | Closed Spiral Lenght | Cable Diameter | Outer Diameter | Copper Count Weight |
|---|---|---|---|---|---|
| mm² | mm | mm | mm | kg/km | |
| 26 | 2 x 0.14 | 300 | 3.80 | 13.60 | 30.60 |
| 26 | 2 x 0.14 | 400 | 3.80 | 13.60 | 39.60 |
| 26 | 2 x 0.14 | 500 | 3.80 | 13.60 | 48.60 |
| 26 | 2 x 0.14 | 1000 | 3.80 | 13.60 | 93.60 |
| 26 | 3 x 0.14 | 300 | 4.10 | 15.20 | 44.20 |
| 26 | 3 x 0.14 | 400 | 4.10 | 15.20 | 55.80 |
| 26 | 3 x 0.14 | 500 | 4.10 | 15.20 | 67.50 |
| 26 | 3 x 0.14 | 1000 | 4.10 | 15.20 | 135.00 |
| 26 | 4 x 0.14 | 300 | 4.60 | 16.20 | 47.60 |
| 26 | 4 x 0.14 | 400 | 4.60 | 16.20 | 61.60 |
| 26 | 4 x 0.14 | 500 | 4.60 | 16.20 | 75.60 |
| 26 | 4 x 0.14 | 1000 | 4.60 | 16.20 | 145.60 |
| 26 | 5 x 0.14 | 300 | 4.60 | 17.20 | 54.40 |
| 26 | 5 x 0.14 | 400 | 4.60 | 17.20 | 70.40 |
| 26 | 5 x 0.14 | 500 | 4.60 | 17.20 | 86.40 |
| 26 | 5 x 0.14 | 1000 | 4.60 | 17.20 | 166.40 |
| 26 | 6 x 0.14 | 300 | 5.20 | 19.40 | 64.60 |
| 26 | 6 x 0.14 | 400 | 5.20 | 19.40 | 83.60 |
| 26 | 6 x 0.14 | 500 | 5.20 | 19.40 | 102.60 |
| 26 | 6 x 0.14 | 1000 | 5.20 | 19.40 | 197.60 |
| 26 | 7 x 0.14 | 300 | 5.50 | 20.00 | 68.00 |
| 26 | 7 x 0.14 | 400 | 5.50 | 20.00 | 88.00 |
| 26 | 7 x 0.14 | 500 | 5.50 | 20.00 | 108.00 |
| 26 | 7 x 0.14 | 1000 | 5.50 | 20.00 | 208.00 |
| 26 | 8 x 0.14 | 300 | 5.60 | 20.20 | 74.80 |
| 26 | 8 x 0.14 | 400 | 5.60 | 20.20 | 96.80 |
| 26 | 8 x 0.14 | 500 | 5.60 | 20.20 | 118.80 |
| 26 | 8 x 0.14 | 1000 | 5.60 | 20.20 | 228.80 |
| 26 | 2 x 0.25 | 300 | 4.50 | 16.00 | 51.00 |
| 26 | 2 x 0.25 | 400 | 4.50 | 16.00 | 66.00 |
| 26 | 2 x 0.25 | 500 | 4.50 | 16.00 | 81.00 |
| 26 | 2 x 0.25 | 1000 | 4.50 | 16.00 | 156.00 |
| 26 | 4 x 0.25 | 300 | 5.00 | 18.00 | 74.80 |
| 26 | 4 x 0.25 | 400 | 5.00 | 18.00 | 96.80 |
| 26 | 4 x 0.25 | 500 | 5.00 | 18.00 | 118.80 |
| 26 | 4 x 0.25 | 1000 | 5.00 | 18.00 | 228.80 |
| 24 | 5 x 0.25 | 300 | 5.40 | 19.80 | 85.00 |
| 24 | 5 x 0.25 | 400 | 5.40 | 19.80 | 110.00 |
| 24 | 5 x 0.25 | 500 | 5.40 | 19.80 | 135.00 |
| 24 | 5 x 0.25 | 1000 | 5.40 | 19.80 | 260.00 |
| 24 | 6 x 0.25 | 300 | 5.70 | 20.40 | 102.00 |
| 24 | 6 x 0.25 | 400 | 5.70 | 20.40 | 132.00 |
| 24 | 6 x 0.25 | 500 | 5.70 | 20.40 | 162.00 |
| 24 | 6 x 0.25 | 1000 | 5.70 | 20.40 | 312.00 |
| 24 | 8 x 0.25 | 300 | 6.50 | 23.00 | 119.00 |
| 24 | 8 x 0.25 | 400 | 6.50 | 23.00 | 154.00 |
| 24 | 8 x 0.25 | 500 | 6.50 | 23.00 | 189.00 |
| 24 | 8 x 0.25 | 1000 | 6.50 | 23.00 | 364.00 |
| 24 | 12 x 0.25 | 300 | 7.10 | 26.20 | 170.00 |
| 24 | 12 x 0.25 | 400 | 7.10 | 26.20 | 220.00 |
| 24 | 12 x 0.25 | 500 | 7.10 | 26.20 | 270.00 |
| 24 | 12 x 0.25 | 1000 | 7.10 | 26.20 | 520.00 |
| 20 | 2 x 0.50 | 300 | 5.50 | 20.00 | 78.20 |
| 20 | 2 x 0.50 | 400 | 5.50 | 20.00 | 101.20 |
| 20 | 2 x 0.50 | 500 | 5.50 | 20.00 | 124.20 |
| 20 | 2 x 0.50 | 1000 | 5.50 | 20.00 | 239.20 |
| 20 | 4 x 0.50 | 300 | 5.80 | 21.60 | 153.00 |
| 20 | 4 x 0.50 | 400 | 5.80 | 21.60 | 198.00 |
| 20 | 4 x 0.50 | 500 | 5.80 | 21.60 | 243.00 |
| 20 | 4 x 0.50 | 1000 | 5.80 | 21.60 | 648.00 |
| 20 | 6 x 0.50 | 300 | 7.00 | 26.00 | 231.20 |
| 20 | 6 x 0.50 | 400 | 7.00 | 26.00 | 299.20 |
| 20 | 6 x 0.50 | 500 | 7.00 | 26.00 | 367.20 |
| 20 | 6 x 0.50 | 1000 | 7.00 | 26.00 | 707.20 |
| 20 | 8 x 0.50 | 300 | 8.00 | 29.00 | 289.00 |
| 20 | 8 x 0.50 | 400 | 8.00 | 29.00 | 374.00 |
| 20 | 8 x 0.50 | 500 | 8.00 | 29.00 | 459.00 |
| 20 | 8 x 0.50 | 1000 | 8.00 | 29.00 | 884.00 |
| 20 | 12 x 0.50 | 300 | 8.80 | 31.60 | 380.80 |
| 20 | 12 x 0.50 | 400 | 8.80 | 31.60 | 492.80 |
| 20 | 12 x 0.50 | 500 | 8.80 | 31.60 | 604.80 |
| 20 | 12 x 0.50 | 1000 | 8.80 | 31.60 | 1164.80 |
