    Shielded Sensor Cable

    APPLICATION

    Smaller cables providing easier handling and space savings.

    Compatible with wire-handling equipment used in harness shops.

    Compatible with over-molding processes and materials used in sensor assembly.

    STANDARDS

    Basic design to EN50264

    FIRE PERFORMANCE

    Flame Retardance (Single vertical wire or cable test) IEC 60332-1-2; EN 60332-1-2
    Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) IEC 60332-3-24; EN 60332-3-24
    Halogen Free IEC 60754-1; EN 50267-2-1
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
    Minimum Smoke Emission IEC 61034-2; EN 61034-2

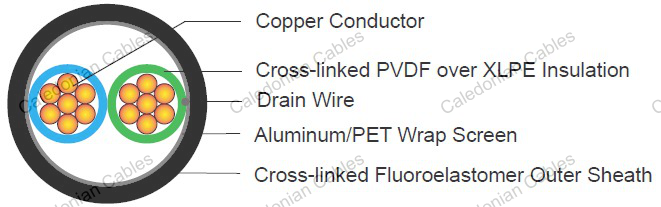

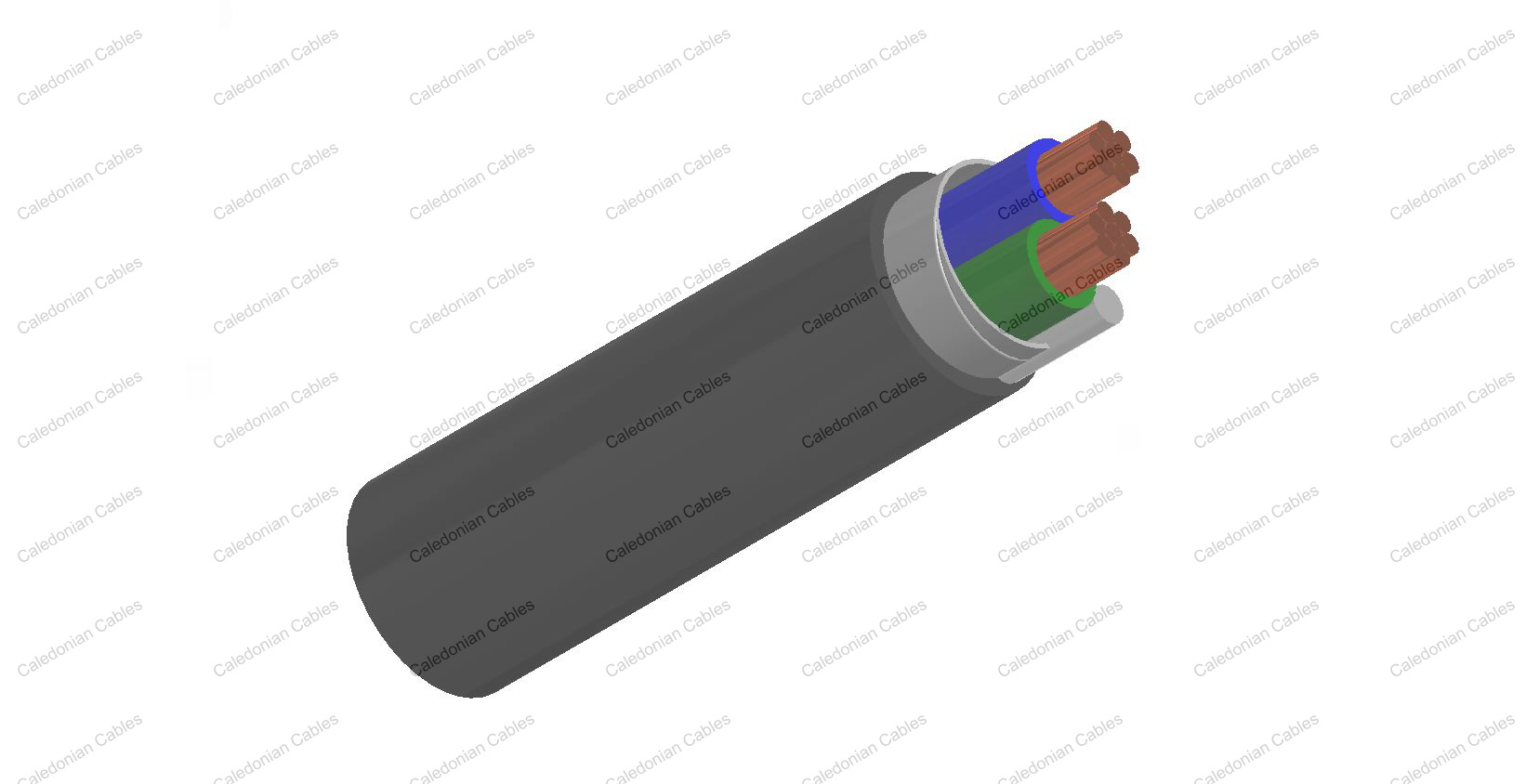

    CABLE CONSTRUCTION

    Conductor : Tinned Copper /Bare Copper.

    Insulation : Cross-linked PVDF over XLPE.

    Screen : Aluminum/PET Wrap+ Drain Wire.

    Sheath : Cross-linked Fluoroelastomer or Cross-linked Modified Polyolefin.

    Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

    COLOUR CODE

    Insulation Colour : Blue,Brown,Black,White,Green(Other colours can be offered upon request).

    Sheath Colour : Black (Other colours can be offered upon request).

    PHYSICAL AND THERMAL PROPERTIES

    Operating temperature : -55°C - 200°C.

    Short-term operating temperature :

    240 hours @ 175°C (Cross-linked modified polyolefin sheath);

    160 hours @ 250°C (Cross-linked modified polyolefin sheath);

    6 hours @ 300°C (Cross-linked fluoroelastomer sheath);

    Cold bend :

    –40°C (Cross-linked modified polyolefin sheath);

    –25°C (Cross-linked fluoroelastomer sheath).

    Flammability :

    70s (Cross-linked modified polyolefin sheath);

    30s (Cross-linked fluoroelastomer sheath).

    Abrasion (ISO 6722) :

    > 500 cycles (Cross-linked modified polyolefin sheath);

    > 1000 cycles (Cross-linked fluoroelastomer sheath).

    Fluid resistance : As per ISO6722:2011 (E) Media groups 1 & 2.

    Bending radius : 10xOD during installation; 5xOD fixed installed.

    CONSTRUCTION PARAMETERS

    Conductor Sensor Cable
    No.of Cores × Cross Section Class of Conductor Min. Overall Diameter Max. Overall Diameter Weight
    mm² mm mm kg/km
    2×0.35 2 3.2 3.6 20.0
    3×0.35 2 3.4 3.8 24.8
    2×0.50 2 3.4 3.8 24.8
    3×0.50 2 3.6 4.0 31.0
    2×0.75 2 3.8 4.2 33.0
    3×0.75 2 4.1 4.5 41.7
    2×1.0 2 4.1 4.5 40.7
    3×1.0 2 4.4 4.8 51.8
