Types VIII - 30/50V Multipair Screened Standard Wall Cables

Application

These cables are used as power and control cables for protected, fixed installation inside railway vehicles

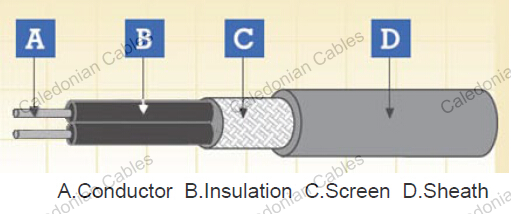

Construction

Conductor	Flexible Stranded Tinned Copper
Insulation	Cross linked EPR rubber type EI 107
Screen	Copper Braid Screen
Sheath	Cross linked EVA rubber type EM 104

Chemical & Environmental Properties

EN 60684-2	No fluorine
EN 50305; EN 60811-2-1	Resistance to oil & fuel
EN 50305	Resistance to ozone

Fire Performance for rolling stock application

EN 50306-2	Hazard levels HL1, HL2/HL3, HL4
DIN 5510-2	Protection level 1/2/3/4
BS 6853	Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101	FO

Fire Performance in general

EN 50265-2-1; IEC 60332-1; BS 4066-1	Vertical flame propogation for a single insulated wire/cable
EN 50266-2-4 + EN 50305; IEC 60332-3C	Fire propagation of bunched wires and cables
VDE 0472 Teil 804; BS 4066-3; NFC 32070
EN 50268-2; IEC 61034-2; VDE 0472 Teil 816	Smoke density
EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813	Corrosivity of gases (Acidity & Conductivity)
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853	Toxicity index
NFF 16101; NFF 63808; BS6853	Smoke index

NO.OF PAIR	NOMINAL CROSS SECTIONAL AREA	NOMINAL DIAMETER OF STRANDS	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT	MAXIMUM CONDUCTOR RESISTANCE@20℃
NO.OF PAIR	MM2	NO/MM	MM	KG/KM	Ω/KM
1	0.5	16/0.2	8.45	99	40.1
1	0.75	24/0.2	9.2	110	26.7
1	1.0	32/0.2	9.5	139	20.0
1	1.0	32/0.2	11.7	186	20.0
1	1.0	32/0.2	15.6	306	20.0
2	1.0	32/0.2	15.7	443	20.0
3	1.0	32/0.2	21.7	662	20.0
