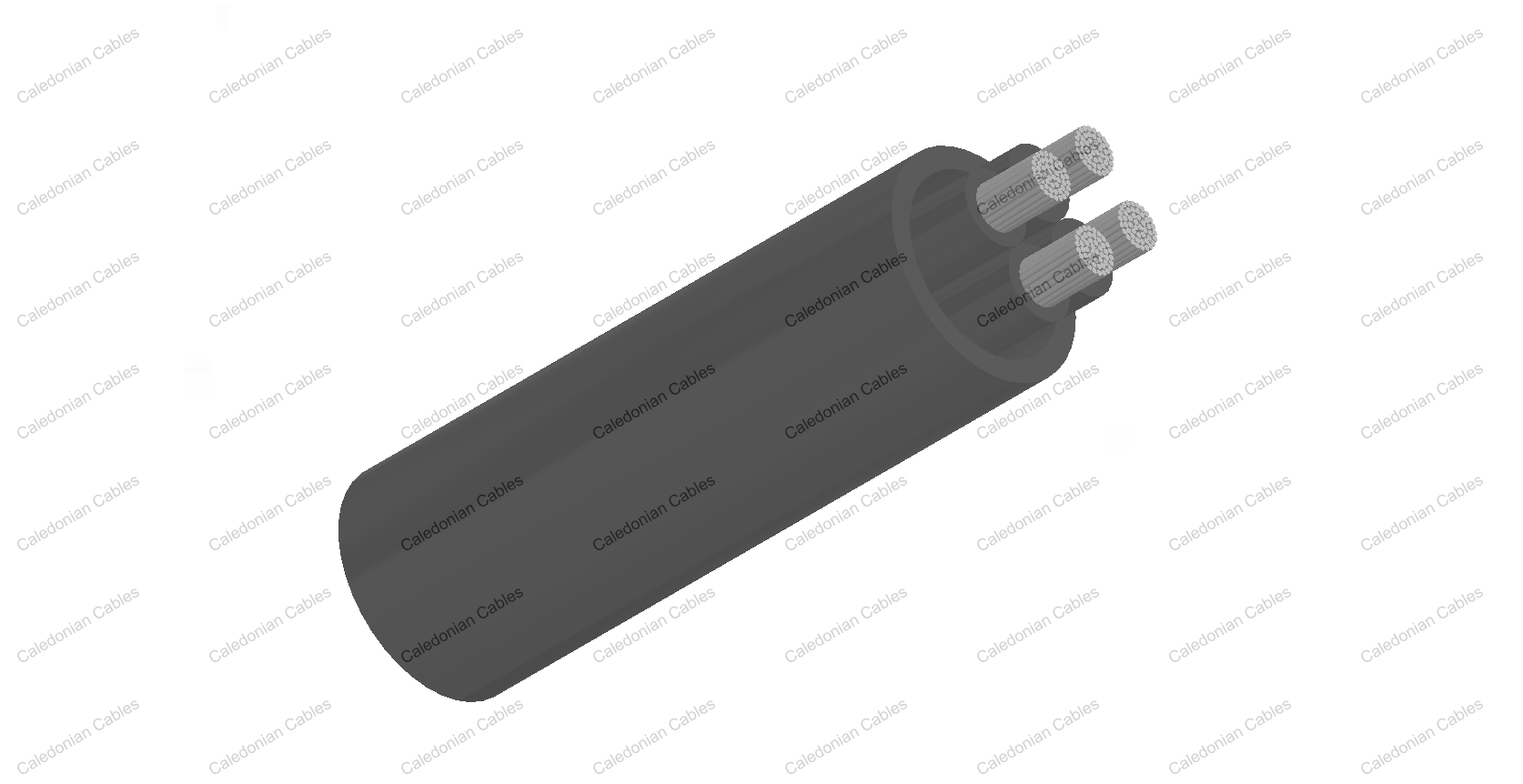

    Types VI - 600/1000V Multicore Standard Wall Cables

    Application

    These cables are used as power and control cables for protected, fixed installation inside railway vehicles

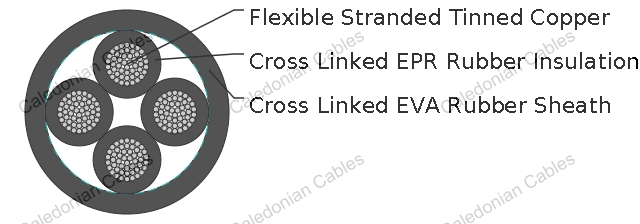

    Construction

    Conductor Flexible Stranded Tinned Copper
    Insulation Cross linked EPR rubber type EI 107
    Sheath Cross linked EVA rubber type EM 104

    Chemical & Environmental Properties

    EN 60684-2 No fluorine
    EN 50305; EN 60811-2-1 Resistance to oil & fuel
    EN 50305 Resistance to ozone

    Fire Performance for rolling stock application

    EN 50306-2 Hazard levels HL1, HL2/HL3, HL4
    DIN 5510-2 Protection level 1/2/3/4
    BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
    NF F 16-101 FO

    Fire Performance in general

    EN 50265-2-1; IEC 60332-1; BS 4066-1 Vertical flame propogation for a single insulated wire/cable
    EN 50266-2-4 + EN 50305; IEC 60332-3C Fire propagation of bunched wires and cables
    VDE 0472 Teil 804; BS 4066-3; NFC 32070
    EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 Smoke density
    EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 Halogen Free
    EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 Corrosivity of gases (Acidity & Conductivity)
    EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 Toxicity index
    NFF 16101; NFF 63808; BS6853 Smoke index



    NO.OF CORE NOMINAL CROSS
    SECTIONAL AREA
    NOMINAL DIAMETER OF
    STRANDS
    NOMINAL OVERALL
    DIAMETER
    NOMINAL WEIGHT MAXIMUM CONDUCTOR
    RESISTANCE@20℃
    MM2 NO/MM MM KG/KM Ω/KM
    10 2.5 50/0.25 28.1 1148 8.21
    20 4.0 56/0.30 42.7 2421 5.09
