These cables are used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor, suitable for use in cable harnesses, switchboards and control panels, driver desks etc.

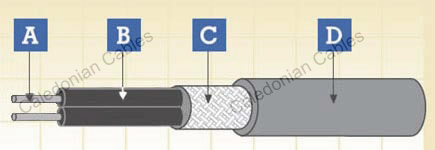

| Conductor | Stranded tinned copper wires |
| Insulation | Radiation crosslinkable LSZH compound |
| Screen | Tinned copper braid |
| Sheath | Radiation crosslinkable LSZH compound |
| Nominal Voltage | 250V |
| Max. Conductor Temperature | 105°C/125°C |
| Temperature Range | -40°C~+105°C |
| Bending Radius | 5 × Overall Diameter |
NF F 63-808
NF F 16-101
BS 6853
DIN 5510
EN54454-2
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
| Number of Cores | Nominal Cross Sectional Area | Number & Nominal Diameter of Strands | Overall Diameter | Weight | |
|---|---|---|---|---|---|
| Min. | Max. | ||||
| - | mm² | No/mm | mm | mm | kg/km |
| 2 | 0.38 | 19/0.16 | 3.20 | 4.00 | 20.0 |
| 2 | 0.60 | 19/0.20 | 3.70 | 4.50 | 32.0 |
| 2 | 0.93 | 19/0.25 | 4.25 | 5.05 | 39.5 |
| 2 | 1.34 | 19/0.30 | 4.80 | 5.60 | 54.0 |
| 2 | 1.82 | 37/0.25 | 5.55 | 6.35 | 66.0 |
| 2 | 2.61 | 37/0.30 | 6.35 | 7.15 | 87.0 |
| 2 | 4.32 | 61/0.30 | 7.50 | 8.30 | 128.0 |
| 3 | 0.38 | 19/0.16 | 3.55 | 4.35 | 30.0 |
| 3 | 0.60 | 19/0.20 | 4.00 | 4.80 | 39.0 |
| 3 | 0.93 | 19/0.25 | 4.50 | 5.30 | 55.0 |
| 3 | 1.34 | 19/0.30 | 5.10 | 5.90 | 66.0 |
| 3 | 1.82 | 37/0.25 | 4.80 | 6.60 | 84.0 |
| 3 | 2.61 | 37/0.30 | 6.80 | 7.60 | 117.0 |
| 3 | 4.32 | 61/0.30 | 8.10 | 8.90 | 182.0 |
| 4 | 0.38 | 19/0.16 | 4.05 | 4.85 | 39.0 |
| 4 | 0.60 | 19/0.20 | 4.50 | 5.30 | 51.0 |
| 4 | 0.93 | 19/0.25 | 5.00 | 5.80 | 70.0 |
| 4 | 1.34 | 19/0.30 | 5.70 | 6.50 | 89.0 |
| 4 | 1.82 | 37/0.25 | 6.45 | 7.25 | 109.0 |
| 4 | 2.61 | 37/0.30 | 7.65 | 8.45 | 157.0 |
| 4 | 4.32 | 61/0.30 | 9.05 | 9.85 | 237.0 |
