-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

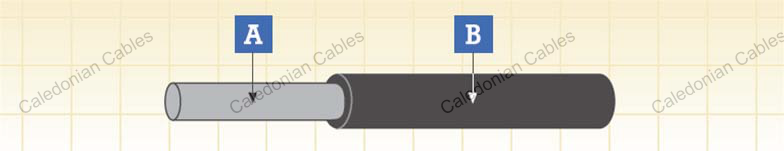

| Conductor | Tinned annealed copper wires |
| Insulation | High tear strength silicon rubber |
| Nominal Voltage | 1500V |
| Long-term Working Temperature | 150°C |
| Short Circuit Temperature (5s) | 300°C |
| Ambient Temperature | -50°C/+150°C |
| Minimum Bending Radius | 3 x Overall Diameter |
| Flame Retardant | GB 12666.2-1990 DZ-1 |
| Low Corrosivity (Acidity & Conductivity) | GB/T17650.1-1998; GB/T17650.2-1998 |
| Halogen Free | GB/T17650.1-1998; GB/T17650.2-1998 |
| Low Smoke | GB/T17651.1-1998; GB/T17651.2-1998 |
| Nominal Cross-Sectional Area | Stranding | Insulation Thickness | Maximum Overall Diameter | Weight | Maximum Conductor Resistance 20°C |
|---|---|---|---|---|---|
| mm² | No/mm | mm | mm | kg/km | Ω/km |
| 50 | 999/0.25 | 3.5 | 18.5 | 911 | 0.393 |
| 95 | 1936/0.25 | 3.5 | 22.5 | 1485 | 0.210 |
