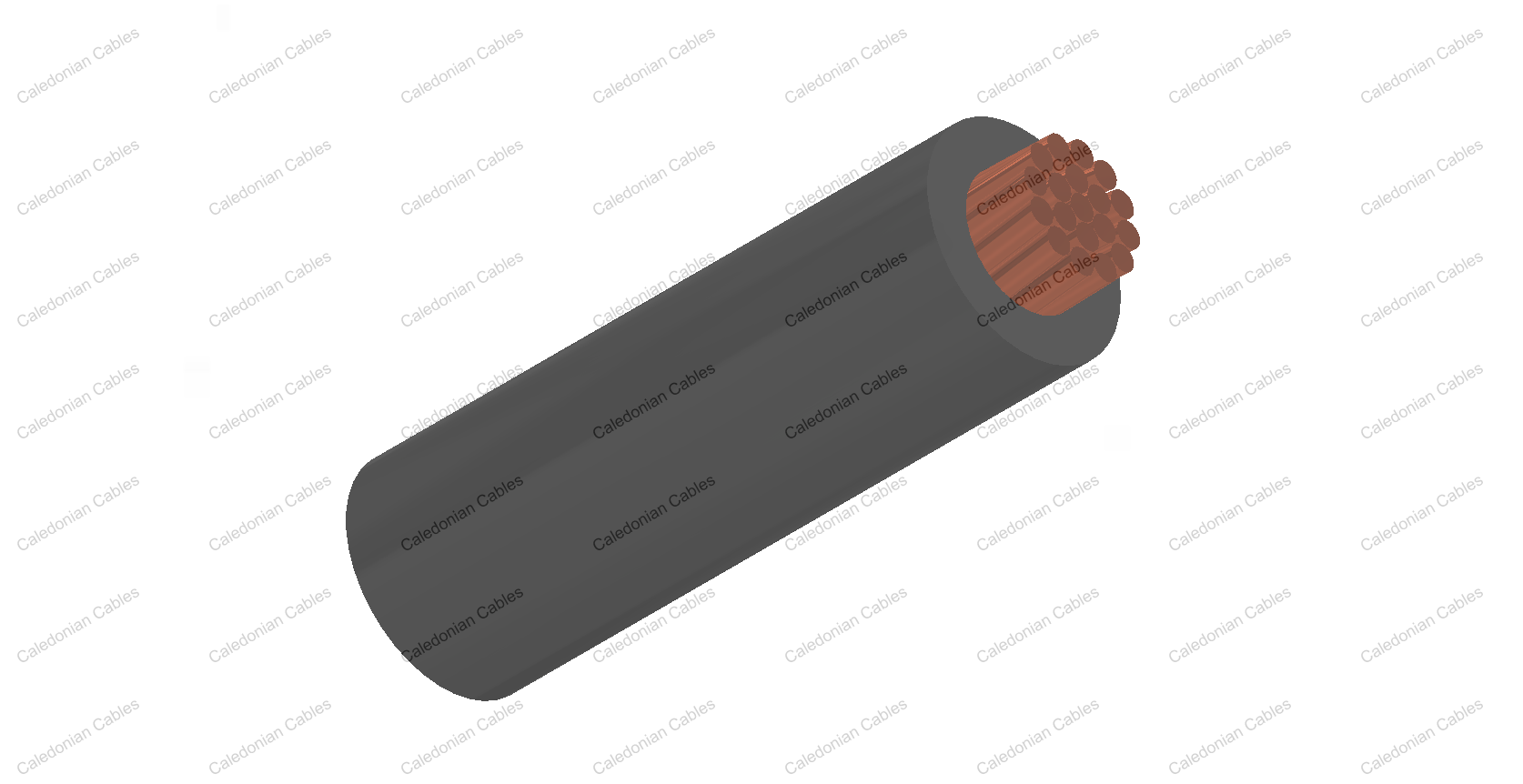

    Low Smoke Halogen Free Flame Retardant Thin Wall Single Core Cables (750V)

    WDZ-DCYJB-125, WDZ-DCYJB/2-125, WDZ-DCYJB/3-125

    WDZ-DCYJB-150, WDZ-DCYJB/2-150, WDZ-DCYJB/3-150

    750V

    Application

    -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

    -Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

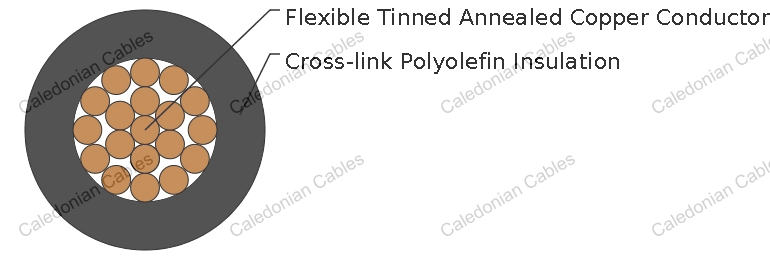

    Construction

    Conductor Tinned copper wires
    Separator (if available) Electron beam crosslinkable LSZH compound
    Insulation Cross-link polyolefin compound

    Electrical & Mechanical Properties

    Nominal Voltage 750V
    Long-term Working Temperature

    125°C (WDZ-DCYJB-125, WDZ-DCYJB/2-125, WDZ-DCYJB/3-125);

    150°C (WDZ-DCYJB-150, WDZ-DCYJB/2-150, WDZ-DCYJB/3-150)

    Lowest Operation Temperature -60°C
    Minimum Bending Radius 6 x Overall Diameter

    Fire Performance

    Flame Retardant GB/T18380.1-2001; IEC 60332-3-25 D
    Low Corrosivity (Acidity & Conductivity) GB/T17650.1-1998; GB/T17650.2-1998
    Halogen Free GB/T17650.1-1998; GB/T17650.2-1998
    Low Smoke GB/T17651.1-1998; GB/T17651.2-1998

    WDZ-DCYJB-125, WDZ-DCYJB/2-125, WDZ-DCYJB/3-125
    WDZ-DCYJB-150, WDZ-DCYJB/2-150, WDZ-DCYJB/3-150
    750V

    Nominal Cross-Sectional Area Conductor Construction Nominal Insulation Thickness Maximum Overall Diameter Maximum Conductor Resistance 20°C
    mm² No/mm mm mm Ω/km
    0.5 19/0.18 0.3 1.5 40.1
    0.75 19/0.23 0.3 1.75 26.7
    1.0 19/0.26 0.3 1.85 20.0
    1.2 19/0.28 0.3 2.00 17.6
    1.5 19/0.32 0.3 2.15 13.7
    2.0 19/0.37 0.3 2.45 10.0
    2.5 19/0.41 0.3 2.65 8.21
    4 19/0.52 0.3 3.20 5.0
    6 19/0.64 0.3 3.85 3.4
