    Low Smoke Halogen Free Flame Retardant Rolling Stock Multicore Jumper Cables (750V) 10×2×1.25+30×1.25

    WDZ-DCKT-P-125 750V

    10×2×1.25+30×1.25

    Application

    -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

    -Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

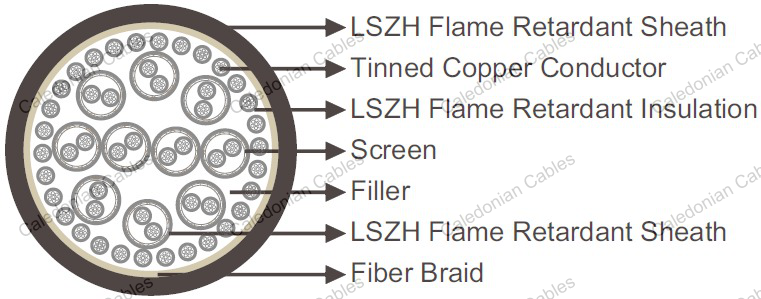

    Construction

    Single Conductors Tinned copper wires with low smoke halogen free flame retardant insulation and single wrapping.
    Twisted Pairs Consisted of tinned copper wires, low smoke halogen free flame retardant insulation, wrapping, screen and low smoke halogen free flame retardant sheath.
    Single Wrapped
    Filler
    Fiber Braid
    Sheath Low smoke halogen free flame retardant compound

    Electrical & Mechanical Properties

    Nominal Voltage 750V
    Long-term Working Temperature 125°C
    Lowest Operation Temperature -25°C
    Minimum Bending Radius 6 x Overall Diameter

    Fire Performance

    Flame Retardant GB/T 18380.1-2001; GB/T 18380.3-2001 C
    Low Corrosivity (Acidity & Conductivity) GB/T17650.1-1998; GB/T17650.2-1998
    Halogen Free GB/T17650.1-1998; GB/T17650.2-1998
    Low Smoke GB/T17651.1-1998; GB/T17651.2-1998

    WDZ-DCKT-P-125

    Number of conductor × Nominal Cross-Sectional Area Conductor Construction Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Outer Sheath Thickness Nominal Overall Diameter Maximum Conductor Resistance 20°C
    mm² No/mm mm mm mm mm Ω/km
    10×2×1.25+30×1.25 10×2×50/0.18+30×50/0.18 0.7 0.8 3.3 49 15.5
