-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

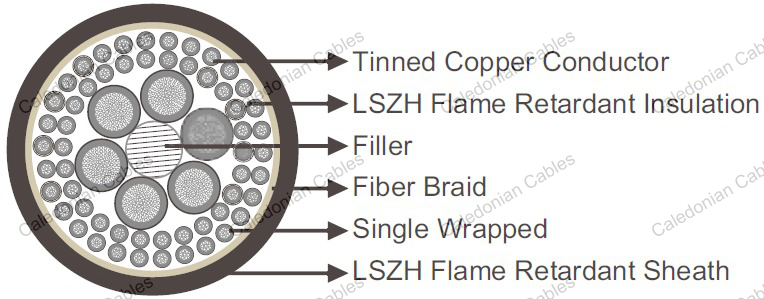

| Conductor | Tinned copper wires |
| Insulation | Low smoke halogen free flame retardant compound |
| Single Wrapped | |
| Screen | |
| Filler | |
| Wrapped | |
| Fiber Braid | |
| Outer Sheath | Low smoke halogen free flame retardant compound. |
| Nominal Voltage | 750V |
| Long-term Working Temperature | 125°C |
| Lowest Operation Temperature | -25°C |
| Minimum Bending Radius | 6 x Overall Diameter |
| Flame Retardant | GB/T 18380.1-2001; GB/T 18380.3-2001 C |
| Low Corrosivity (Acidity & Conductivity) | GB/T17650.1-1998; GB/T17650.2-1998 |
| Halogen Free | GB/T17650.1-1998; GB/T17650.2-1998 |
| Low Smoke | GB/T17651.1-1998; GB/T17651.2-1998 |
| Number of conductor×Nominal Cross-Sectional Area | Conductor Construction | Nominal Insulation Thickness | Nominal Outer Sheath Thickness | Nominal Overall Diameter |
|---|---|---|---|---|
| mm² | No/mm | mm | mm | mm |
| 6×22+48×1.25+8×1.25P | 6×418/0.26+48×48/0.18+3/0.25+8×48/0.18+3/0.25 | 1.2/0.8 | 4.0 | 53 |
