    Low Smoke Halogen Free Flame Retardant Rolling Stock Multicore Jumper Cables (300/500V)

    WDZ-DCKPJ-100 300/500V

    Application

    -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

    -Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

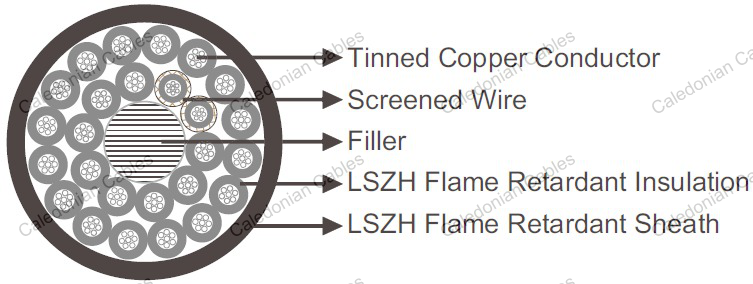

    Construction

    Unscreened Conductors Tinned copper wires with low smoke halogen free flame retardant insulation
    Screened Wires 2×1mm² tinned copper wires with low smoke halogen free flame retardant insulation and screen.
    Filler
    Sheath Low smoke halogen free flame retardant compound

    Electrical & Mechanical Properties

    Nominal Voltage 300/500V
    Long-term Working Temperature 100°C
    Lowest Operation Temperature -25°C
    Minimum Bending Radius 6 x Overall Diameter

    Fire Performance

    Flame Retardant GB/T 18380.1-2001; GB/T 18380.3-2001 C
    Low Corrosivity (Acidity & Conductivity) GB/T17650.1-1998; GB/T17650.2-1998
    Halogen Free GB/T17650.1-1998; GB/T17650.2-1998
    Low Smoke GB/T17651.1-1998; GB/T17651.2-1998

    WDZ-DCKPJ-100

    Number of conductor×Nominal Cross-Sectional Area Conductor Construction Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Maximum Conductor Resistance 20°C
    mm² No/mm mm mm mm Ω/km
    24×1.5+2×1 24×48/0.20+2×32/0.20 0.8/0.6 2.0 25.3 13.7/20.0
